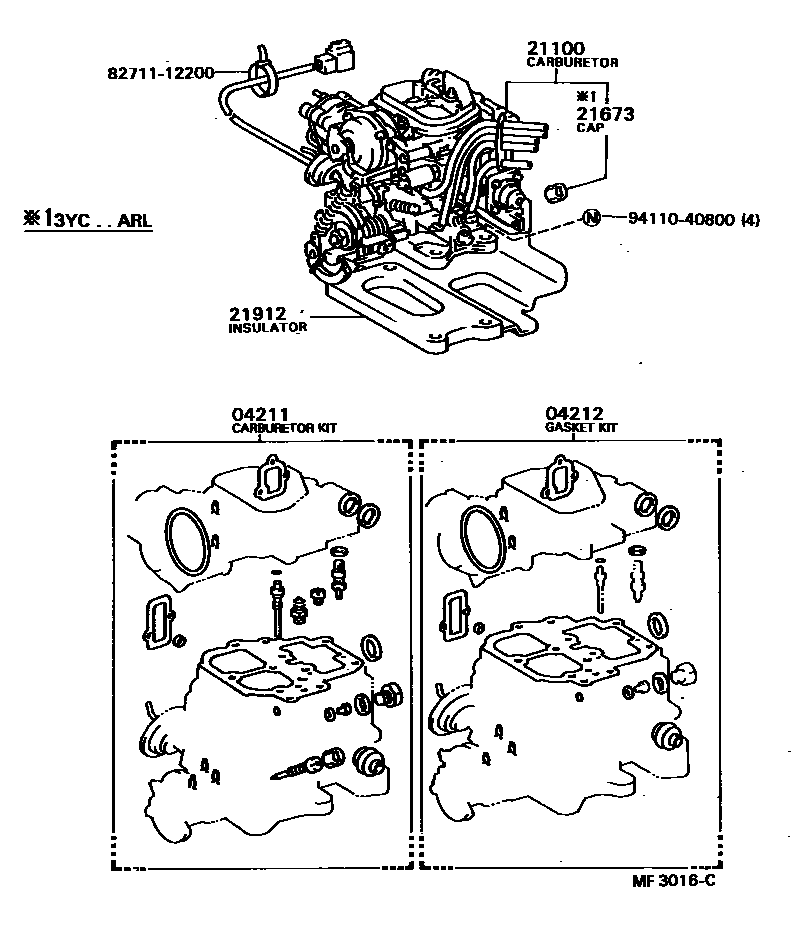

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-72020i2Y..YR20..EUR198211-198303

main04211-72040i2YC..YR20;2Y..YR20..LHD..EUR198211-198305

main04211-72041i2YC..YR20;2Y..YR20..LHD..EUR198305-198408

main04211-72050i2Y..YR20..GEN198211-198303

main04211-72060i3Y#..YR21..ARL,EUR198303-198808

main04211-72070i3Y..YR21..GEN198303-198508

main04211-72100i3Y#..YR21..ARL198508-198808

main04211-72110i3Y..YR21..GEN198508-198808

main04211-72110i3Y..YR21..ARL198511-198808

NEW ZEALAND SPEC

04212GASKET KIT, CARBURETOR

main04212-71010i2Y#..YR20198211-198408

main04212-71020i2Y,3Y#..YR2#198303-198808

main04212-72010i3Y..YR21..GEN198508-198808

main04212-72010i3Y..YR21..ARL198511-198808

NEW ZEALAND SPEC

main04212-72020i3Y#..YR21..ARL198508-198808

21100CARBURETOR ASSY

main21100-72020i2Y..YR20..EUR198211-198408

main21100-72040i2YC..YR20;2Y..YR20..LHD..EUR198211-198408

main21100-72050i3Y..YR21..GEN198211-198508

main21100-72170i3Y#..YR21..ARL198508-198708

main21100-72190i3Y..YR21..ARL198511-198708

NEW ZEALAND SPEC

main21100-72190i3Y..YR21..GEN198508-198708

main21100-73090i3Y..YR21..DLX..EUR;3Y..YR21..LHD..4FC..EUR198610-198701

SWEDEN SPEC

main21100-73090i3Y#..YR21..ARL;3Y..YR21..LHD..EUR198401-198508

main21100-73090i3Y..YR21..LHD..EUR198508-198610

SWEDEN & SWITZERLAND SPEC

main21100-73100i3Y..YR21..EUR198401-198708

main21100-73101i3Y..YR21..EUR198708-198808

main21100-73320i3Y#..YR21..ARL198708-198710

main21100-73321i3Y#..YR21..ARL198710-198808

main21100-73330i3Y..YR21..ARL198708-198808

NEW ZEALAND SPEC

21673CAP, IDLE LIMIT

main21673-13280i3Y#..YR21..ARL198508-198808

21912INSULATOR, CARBURETOR HEAT

main21912-71010i2Y#,3Y#..YR2#198211-198408

main21912-72010i3Y#..YR21198408-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
