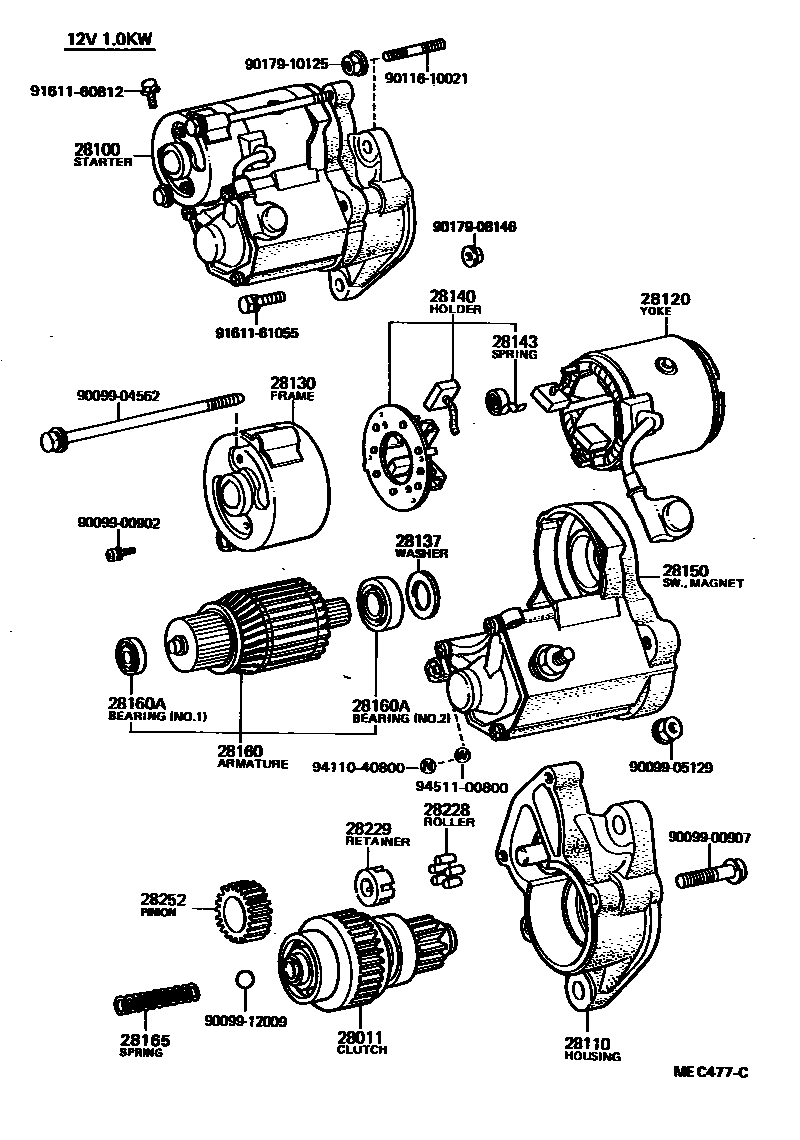

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2Y#,3Y#,4YEC..YR2#,31198211-198808

12V 1.0KW,1.4KW

main28011-64010i2C..CR21198305-198808

12V 1.4KW

sub28011-67030

main28011-64020i2C..CR21..EUR198305-198408

12V 2.0KW

28100STARTER ASSY

main28100-64010i2C..CR21198305-198309

12V 1.4KW,12V 1.4KW

sub28100-64100

main28100-64020i2C..CR21..EUR198305-198408

12V 2.0KW,12V 2.0KW

sub28100-64040

main28100-64100i2C..CR21198309-198808

12V 1.4KW,12V 1.4KW

main28100-72010i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW,12V 1.0KW

main28100-72090i4YEC..YR22,31198508-198808

12V 1.4KW,12V 1.4KW

sub28100-72120

28110HOUSING ASSY, STARTER DRIVE

main28110-64070i2C..CR21198309-198808

12V 1.4KW

main28110-72010i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW

main28110-72020i4YEC..YR22,31198508-198808

12V 1.4KW

main28115-64010i2C..CR21198305-198309

12V 1.4KW

main28115-64020i2C..CR21..EUR198305-198408

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-15090i2C,4YEC..CR21,YR22,31198309-198808

12V 1.4KW

main28120-26071i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW

main28120-34030i2C..CR21198305-198309

12V 1.4KW

main28120-64020i2C..CR21..EUR198305-198408

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-64100i2C..CR21198309-198808

12V 1.4KW

main28130-72010i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW

main28130-72020i4YEC..YR22,31198508-198808

12V 1.4KW

28137WASHER, FELT, STARTER

main90099-02202i2C..CR21198305-198309

12V 1.4KW

main90099-02323i2Y#,3Y#..YR2#198211-198411

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i2C,4YEC..CR21,YR22,31198309-198808

12V 1.4KW

main28140-26070i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW

main28140-34030i2C..CR21198305-198309

12V 1.4KW

main28140-54070i2C..CR21..EUR198305-198408

12V 2.0KW

28143SPRING, STARTER BRUSH

main90099-17112i2C,2Y#,3Y#,4YEC..CR21,YR20,21,31198211-198808

12V 1.0KW,1.4KW

main90099-17115i2C..CR21..EUR198305-198408

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34080i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW

main28150-64010i2C..CR21198305-198309

12V 1.4KW

main28150-64020i2C..CR21..EUR198305-198408

12V 2.0KW

main28150-64070i2C..CR21198309-198808

12V 1.4KW

main28150-72090i4YEC..YR22,31198508-198808

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i2C,4YEC..CR21,YR22,31198309-198808

12V 1.4KW

sub28160-15091

main28160-26050i2C..CR21198305-198309

12V 1.4KW

main28160-26070i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW

sub28160-26071

main28160-54070i2C..CR21..EUR198305-198408

12V 2.0KW

sub28160-54071

28160ABEARING, STARTER ARMATURE

main28253-45020i2Y#,3Y#..YR20,21198309-198808

12V 1.0KW,NO.2

main28253-45020i2Y#..YR20198211-198309

12V 1.0KW,1.4KW,NO.2

main28253-54070i2C..CR21..EUR198305-198408

12V 2.0KW,NO.2

main90099-10107i2C..CR21198305-198309

12V 1.4KW,NO.1

main90099-10113i2Y#,3Y#..YR20,21198211-198808

12V 1.0KW,NO.1

main90099-10131i2C..CR21..EUR198305-198408

12V 2.0KW,NO.1

main90099-10143i2C,4YEC..CR21,YR22,31198309-198808

12V 1.4KW,NO.2

main90099-10144i2C,4YEC..CR21,YR22,31198309-198808

12V 1.4KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2C,2Y#,3Y#,4YEC..CR21,YR2#,31198211-198808

12V 1.0KW,1.4KW,2.0KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2C,2Y#,3Y#,4YEC..CR21,YR2#,31198211-198808

12V 1.0KW,1.4KW,2.0KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2C,2Y#,3Y#,4YEC..CR21,YR2#,31198211-198808

12V 1.0KW,1.4KW,2.0KW

28252GEAR, STARTER IDLE

main28254-45020i2Y#,3Y#,4YEC..YR2#,31198211-198808

12V 1.0KW,1.4KW

main28254-54070i2C..CR21198305-198808

12V 1.4KW,2.0KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161160812

main91611-60812

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

27 parts on this diagram · 5 diagrams in section
