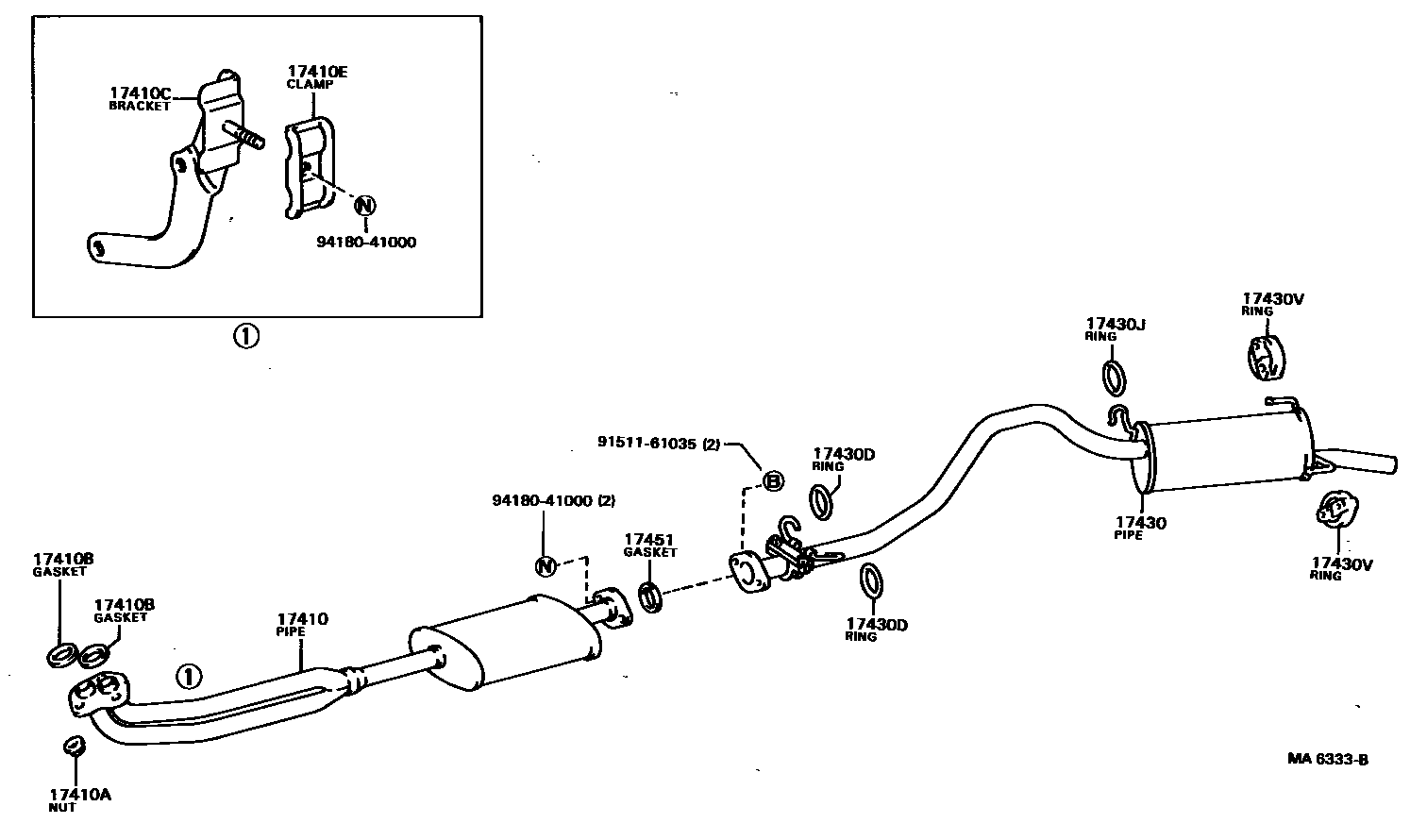

EXHAUST PIPE

0001 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-72020i2Y#..YR20198211-198408

main17401-73030i3Y..YR21..ARL198511-198808

NEW ZEALAND SPEC

main17401-73050i4YEC..YR22..EUR198608-198708

main17401-73090i4YEC..YR22..EUR198708-198808

main17410-64070i2C..CR21198305-198408

main17410-64071i2C..CR21198408-198808

main17410-73080i3Y#..YR21..ARL198508-198808

main17410-73220i4YEC..YR22..ARL198512-198808

main17410-73230i4YEC..YR31..ARL198601-198808

main17410-73271i4YEC..YR31..EUR198608-198708

main17410-73350i4YEC..YR31..EUR198708-198808

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10028×3i2C,2Y#,3Y#..CR21,YR2#198211-198508

main90179-10070×3i2C,3Y#,4YEC..CR21,YR2#,31198508-198808

17410BGASKET, EXHAUST PIPE

main90917-06004i2C..CR21198305-198808

main90917-06026×2i2Y#,3Y#,4YEC..YR2#,31198211-198808

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-64040i2C..CR21198305-198508

main17571-64110i2C..CR21198508-198808

main17571-71010i2Y#,3Y#..YR2#198211-198508

main17571-72050i3Y#,4YEC..YR2#198508-198808

main17571-73070i4YEC..YR31..ARL198601-198808

main17571-73130i4YEC..YR31..EUR198608-198808

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17599-71010i2Y#,3Y#,4YEC..YR2#198211-198808

main17599-73010i4YEC..YR31198601-198808

17430PIPE ASSY, EXHAUST, TAIL

main17405-64010i2C..CR21198305-198508

main17405-64080i2C..CR21198508-198808

main17405-73040i4YEC..YR31..EUR198608-198708

main17405-73050i4YEC..YR22..DLX..EUR; 4YEC..YR22..EUR198708-198808

SWEDEN SPEC

main17405-73060i3Y..YR21..EUR,GEN198508-198808

main17405-73070i3Y#..YR21..ARL198508-198512

main17405-73120i4YEC..YR31..EUR198708-198808

main17405-73130i4YEC..YR22..GL..EUR198708-198808

main17430-72020i2Y#..YR20198211-198408

main17430-73060i3Y#..YR21198401-198508

main17430-73160i4YEC..YR22..ARL198512-198808

main17430-73170i4YEC..YR31..5F..ARL198601-198808

main17430-73180i3Y#..YR21..ARL198512-198808

main17430-73190i4YEC..YR31..4FC198601-198808

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-15010×2i2C..CR21198305-198808

main90301-33001×2i4YEC..YR22198508-198808

main90301-34207×2i2Y#,3Y#..YR20,21198211-198808

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i2C,2Y#,3Y#,4YEC..CR21,YR2#,31198211-198808

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17563-35020×2i4YEC..YR22..EUR198608-198808

main17565-15010i4YEC..YR31..EUR198608-198808

17451GASKET, EXHAUST PIPE

main90917-06004i2Y#,3Y#..YR2#198211-198508

main90917-06012i3Y#,4YEC..YR2#,31..ARL198508-198808

RR

main90917-06020i2C..CR21198305-198808

main90917-06023i4YEC..YR22,31..EUR198608-198808

FR

9151161035

main91511-61035

9418041000

main94180-41000

12 parts on this diagram · 5 diagrams in section
