V-BELT

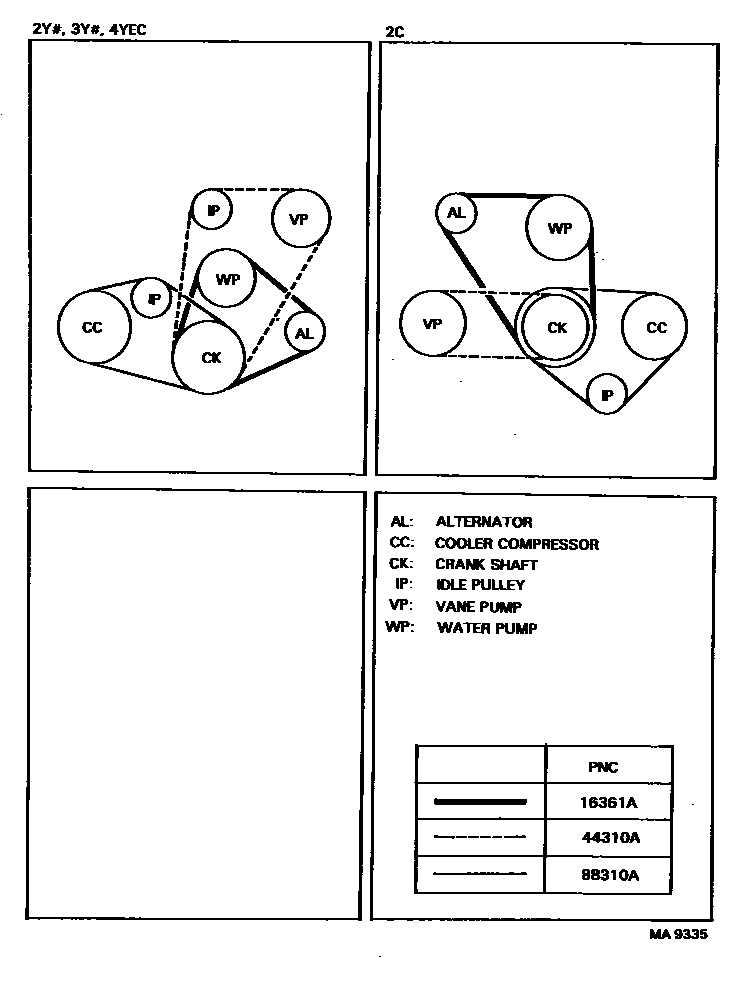

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02144i198508-198609

main90916-02169i198609-198808

main99364-50830i198211-198508

main99365-50820i198508-198808

main99365-50920i198305-198508

44310ABELT, V(FOR VANE PUMP)

main90916-02122i198305-198808

main99332-01040i198211-198408

L=1040

main99332-01055i198401-198808

L=1055

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00910i198211-198306

main99332-00905i198501-198808

main99332-00910i198306-198501

main99332-10835i198508-198512

main99332-10905i198508-198808

main99332-60835i198512-198808

L=835

main99364-00800i198305-198508

3 parts on this diagram · 1 diagram in section
