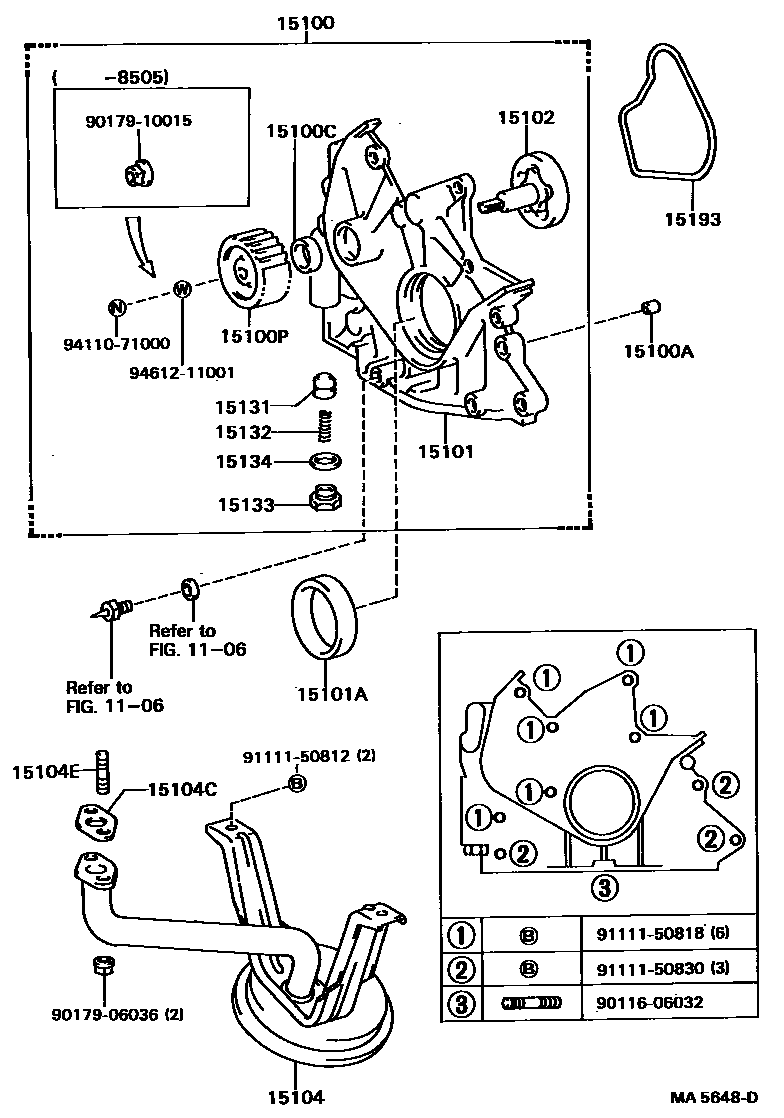

ENGINE OIL PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100PUMP ASSY, OIL

main15100-64020i2C..CR21198305-198808

main15100-71010i2Y#,3Y#,4YEC..YR2#,31198211-198808

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i2C..CR21198305-198808

15100CSEAL(FOR OIL PUMP)

main15165-64010i2C..CR21198305-198505

main90029-21007i2C..CR21198505-198808

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-64010i2C..CR21198305-198808

15101BODY SUB-ASSY, OIL PUMP

main15101-64011i2C..CR21198305-198808

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i2C..CR21198305-198505

main90311-42015i2C..CR21198505-198808

15102ROTOR SET, OIL PUMP

main15102-64020i2C..CR21198305-198808

main15102-71010i2Y#,3Y#,4YEC..YR2#,31198211-198808

15104STRAINER SUB-ASSY, OIL

main15104-64010i2C..CR21198305-198508

main15104-64030i2C..CR21198508-198808

15104CGASKET(FOR OIL STRAINER)

main15149-64010i2C..CR21198305-198808

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032×2i2C..CR21198305-198808

15131VALVE, OIL PUMP RELIEF

main15131-24010i2Y#,3Y#,4YEC..YR2#,31198211-198808

main15131-64020i2C..CR21198305-198808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2Y#,3Y#,4YEC..YR2#,31198211-198808

main15132-76011i2C..CR21198305-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2C..CR21198305-198808

main15133-24010i2Y#,3Y#,4YEC..YR2#,31198211-198808

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i2C..CR21198305-198808

15193GASKET, OIL PUMP

main15193-64021i2C..CR21198305-198808

9011606032

main90116-06032

9017906036

main90179-06036

9017910015

main90179-10015

9111150812

main91111-50812

9111150818

main91111-50818

9111150830

main91111-50830

9411071000

main94110-71000

9461211001

main94612-11001

24 parts on this diagram · 2 diagrams in section
