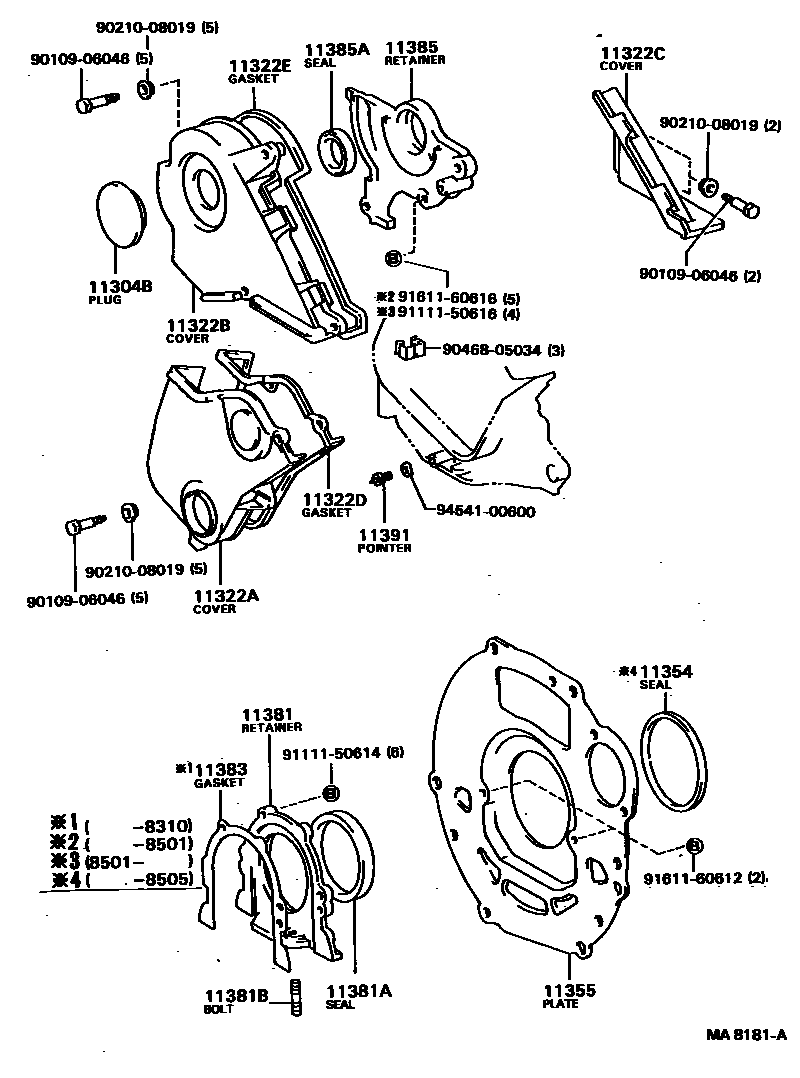

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i2C..CR21198305-198808

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2C..CR21198305-198808

11322BCOVER, TIMING BELT, NO.2

main11322-64010i2C..CR21198305-198808

11322CCOVER, TIMING BELT, NO.3

main11323-64010i2C..CR21198305-198602

main11323-64011i2C..CR21198602-198808

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i2C..CR21198305-198808

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i2C..CR21198305-198808

11354SEAL, FLYWHEEL HOUSING DUST

main11354-64010i2C..CR21198305-198505

main11354-71010i2Y#,3Y#,4YEC..YR2#,31198211-198808

11355PLATE, REAR END

main11355-64010i2C..CR21198305-198505

main11355-64011i2C..CR21198505-198808

main11355-71010i2Y#,3Y#,4YEC..YR2#,31..5F198211-198808

main11355-71020i2Y#,3Y#,4YEC..YR2#,31..4FC198211-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-64010i2C..CR21198305-198310

main11381-64011i2C..CR21198310-198505

main11381-64012i2C..CR21198505-198808

main11381-71010i2Y#,3Y#,4YEC..YR2#,31198211-198808

11381ASEAL, ENGINE REAR OIL

main90311-80003i2Y#,3Y#,4YEC..YR2#,31198211-198808

main90311-90002i2C..CR21198305-198505

main90311-90003i2C..CR21198505-198808

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06033×2i2C..CR21198305-198808

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2Y#,3Y#,4YEC..YR2#,31198211-198808

main11383-64010i2C..CR21198305-198310

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64010i2C..CR21198305-198501

main11382-64011i2C..CR21198501-198808

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38017i2C..CR21198305-198501

main90311-38025i2C..CR21198501-198808

11391POINTER, TIMING

main11391-64010i2C..CR21198508-198808

main11391-64020i2C..CR21198305-198508

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9111150614

main91111-50614

9111150616

main91111-50616

9161160612

main91611-60612

9161160616

main91611-60616

9454100600

main94541-00600

23 parts on this diagram · 2 diagrams in section
