SHORT BLOCK ASSEMBLY

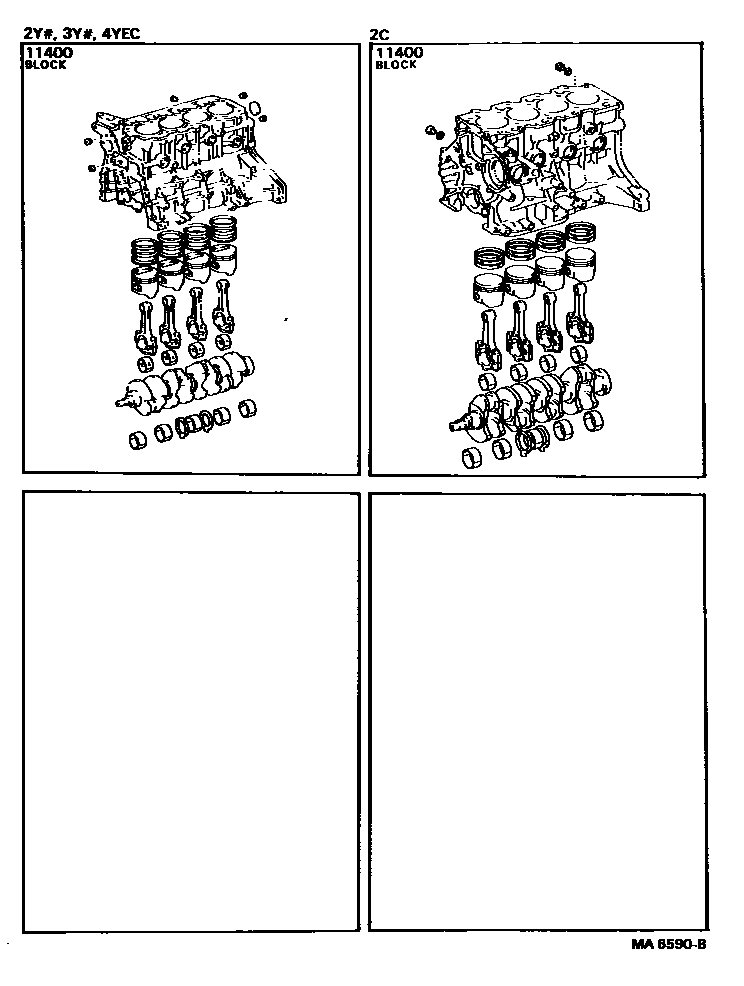

Parts diagram

11400BLOCK ASSY, SHORT

main11400-64030i198305-198307

main11400-64070i198307-198508

main11400-64160i198508-198608

main11400-64161i198608-198808

main11400-72030i198211-198408

main11400-73011i198508-198808

main11400-73020i198401-198502

main11400-73021i198508-198808

main11400-73050i198508-198808

1 parts on this diagram · 1 diagram in section
