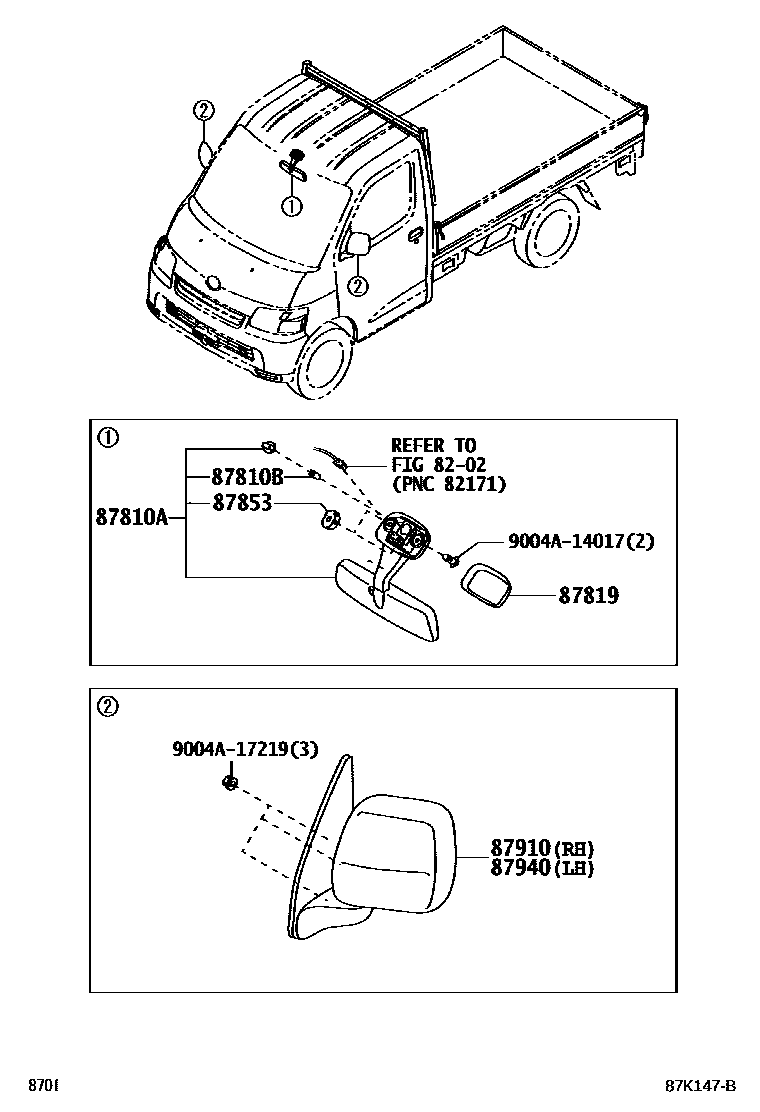

MIRROR
8202WIRING & CLAMP
87810AMIRROR ASSY INNER REAR VIEW, NO.2
-
87810BBULB, INNER REAR VIEW MIRROR LAMP
87819LENS, INNER RR VIEW MIRROR ROOM LAMP
CLEAR LENS
87853BASE, INNER REAR VIEW MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PANIT REQ.
9004A14017
main9004A-14017
9004A17219
main9004A-17219
9 parts on this diagram · 2 diagrams in section
