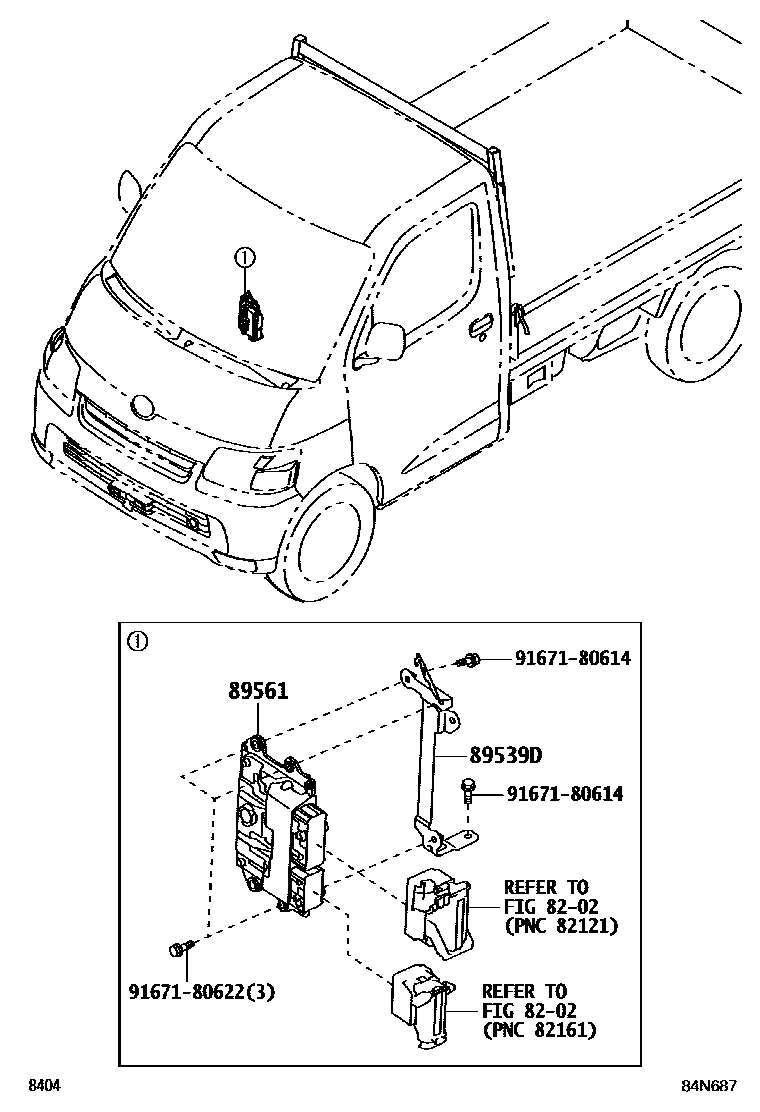

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

89539DBRACKET, COMPUTER

main89539-BZ490iS403202201

89561COMPUTER, FUEL INJECTION

main89560-BXE20iS403..PIC..5F202201

DENSO

main89560-BXP10iS403..TB..4FC..D202201-202408

DENSO

main89560-BXP11iS403..TB..4FC..D202409

main89560-BXP20iS403..TB..4FC..R202201-202408

DENSO

main89560-BXP21iS403..TB..4FC..R202409

main895E0-BZ590iS403..HRF..5F202212

DENSO

main895E0-BZ600iS403..HRF..D202212-202408

DENSO

main895E0-BZ601iS403..HRF..D202409

main895E0-BZ610iS403..HRF..4FC..R202212-202408

DENSO

main895E0-BZ611iS403..HRF..4FC..R202409

9167180614

main91671-80614

9167180622

main91671-80622

5 parts on this diagram · 2 diagrams in section
