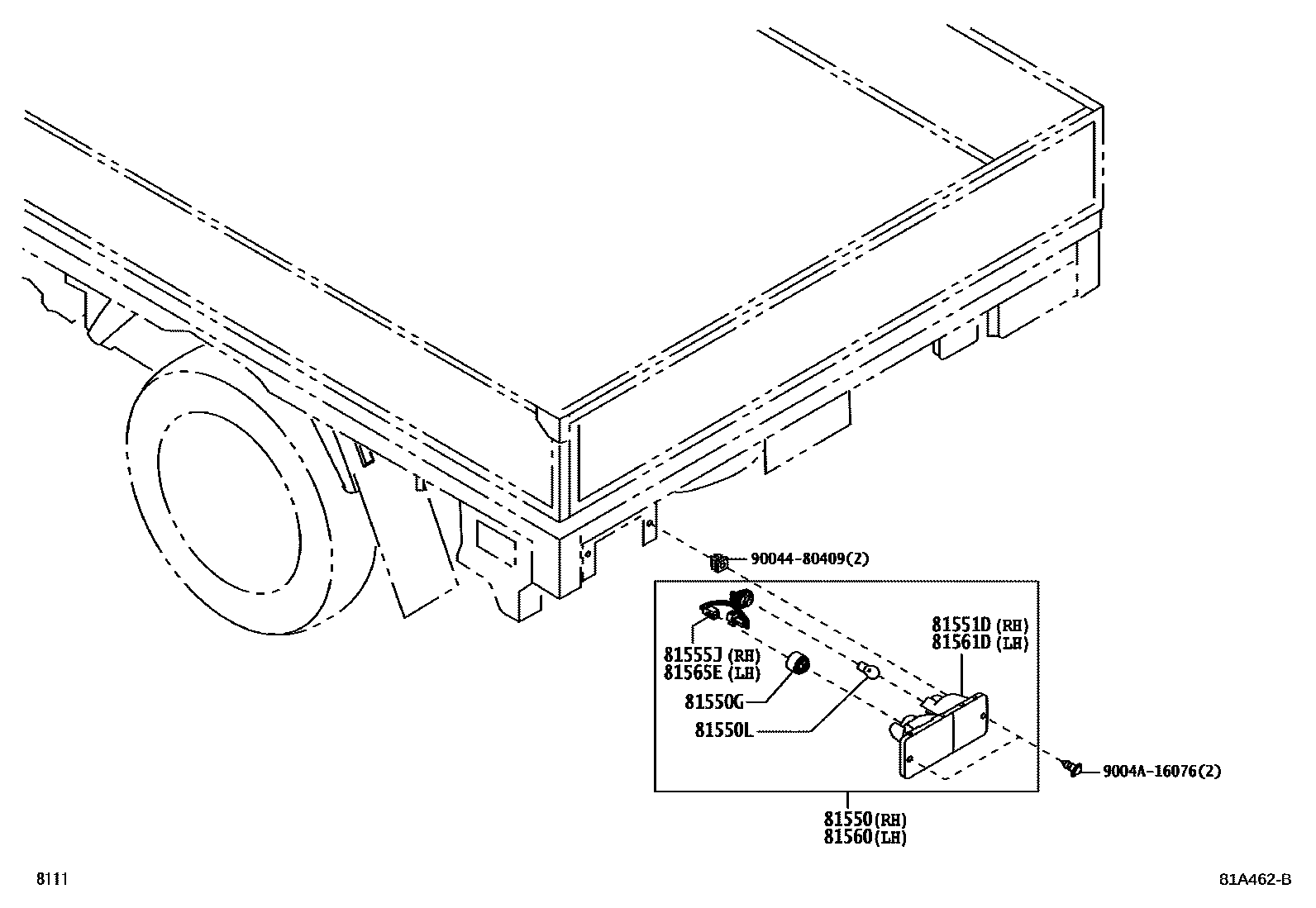

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-BZ510iS403..PIC202201

main81550-BZA50iS403..HRF202212

81550GSOCKET, TAILLAMP

main81945-BZ040×2iS403..PIC202201

main81945-BZ050iS403..HRF202212-202402

main81945-BZ090iS403..HRF202403

81550LBULB, REAR TURN SIGNAL LAMP

main9004A-81044×2iS403..PIC202201

12V P21W

main9004A-81051iS403..HRF202212

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-BZ560iS403..PIC202201

main81551-BZ580iS403..HRF202212

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-BZ290iS403..PIC202201

main81555-BZ300iS403..HRF202212

81560LAMP ASSY, REAR COMBINATION, LH

main81560-BZ510iS403..PIC202201

main81560-BZA50iS403..HRF202212

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-BZ560iS403..PIC202201

main81561-BZ580iS403..HRF202212

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-BZ290iS403..PIC202201

main81565-BZ130iS403..HRF202212

9004480409

main90044-80409

9004A16076

main9004A-16076

10 parts on this diagram · 2 diagrams in section
