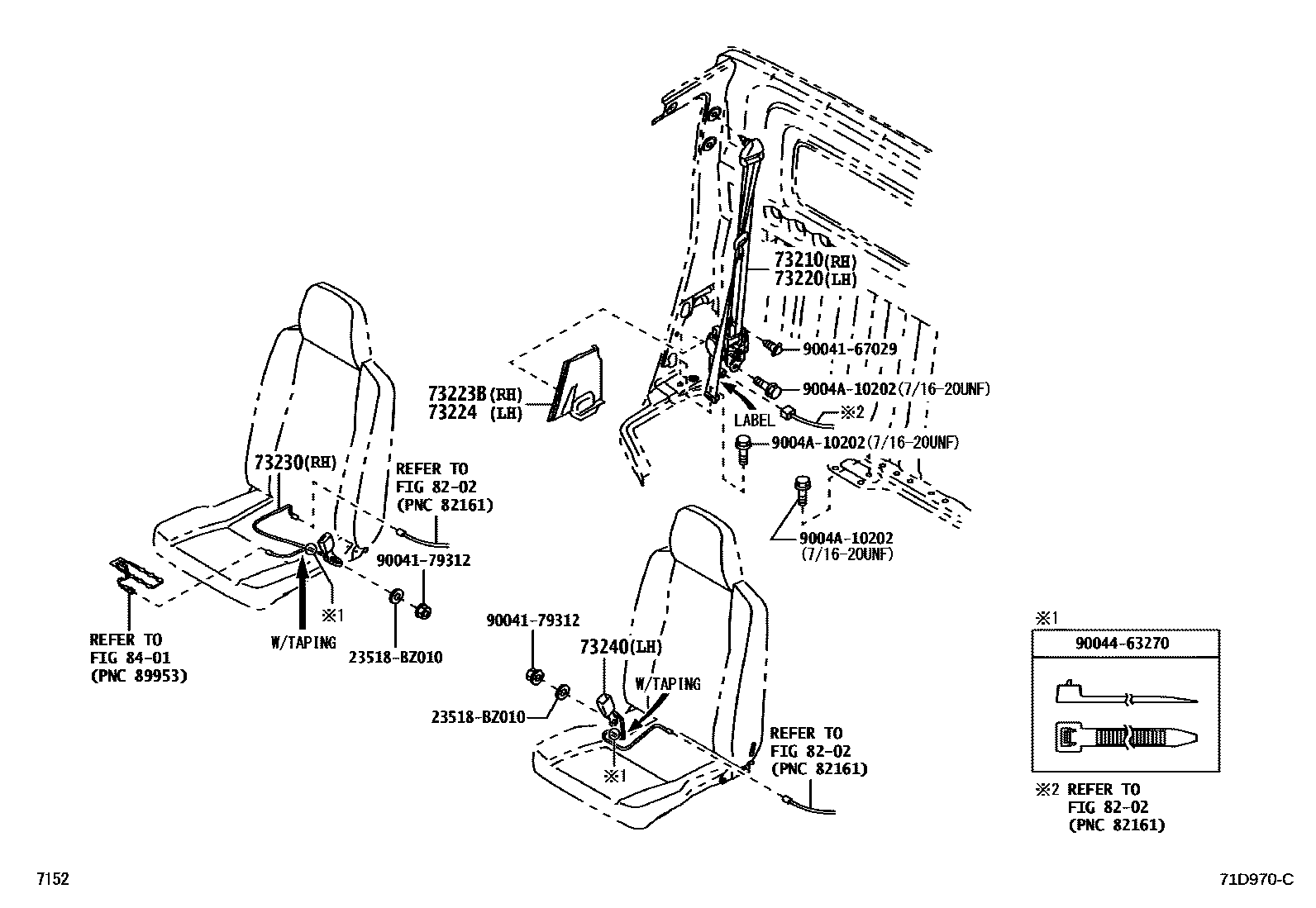

SEAT BELT

0001 1 0002 1FRONT 0003 1REAR

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ550-B0iS403..PIC202201-202301

SHADOW GRAY,TRIM1#,LABEL=R5

main73210-BZ800-B0iS403..HRF202212-202401

SHADOW GRAY,TRIM1#

sub73210-BZ801

main73210-BZ801-B0iS403..HRF202402

SHADOW GRAY,TRIM1#

main73210-BZ830-B0iS403..PIC202301-202401

SHADOW GRAY,TRIM1#,LABEL=R2

sub73210-BZ831

main73210-BZ831-B0iS403..PIC202402

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ540-B0iS403..PIC202201-202301

SHADOW GRAY,TRIM1#,LABEL=L5

main73220-BZ750-B0iS403..PIC202301-202401

SHADOW GRAY,TRIM1#,LABEL=L1

sub73220-BZ751

main73220-BZ750-B0iS403..HRF202212-202401

SHADOW GRAY,TRIM1#

sub73220-BZ751

main73220-BZ751-B0iS403202402

SHADOW GRAY,TRIM1#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-BZ100-B0iS403..PIC202201

DK.GRAY,TRIM1#

main73223-BZ120-B0iS403..HRF202212

DK.GRAY,TRIM1#

73224COVER, FRONT SEAT BELT RETRACTOR, LH

main73224-BZ050-B0iS403..PIC202201

DK.GRAY,TRIM1#

main73224-BZ070-B0iS403..HRF202212

DK.GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ810-B0iS403..PIC202201-202301

DK.GRAY,TRIM1#,MARK:TAPE=YELLOW

main73230-BZG50-B0iS403..HRF202212

DK.GRAY,TRIM1#

main73230-BZJ00-B0iS403..PIC202301

DK.GRAY,TRIM1#,MARK:TAPE=GREEN

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ800-B0iS403..PIC202201-202301

DK.GRAY,TRIM1#,MARK:TAPE=YELLOW

main73230-BZG40-B0iS403..HRF202212

DK.GRAY,TRIM1#

main73230-BZG90-B0iS403..PIC202301

DK.GRAY,TRIM1#,MARK:TAPE=GREEN

8202

8401

23518BZ010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ010

9004167029

main90041-67029

9004179312

main90041-79312

9004463270

main90044-63270

9004A10202

main9004A-10202

13 parts on this diagram · 3 diagrams in section
