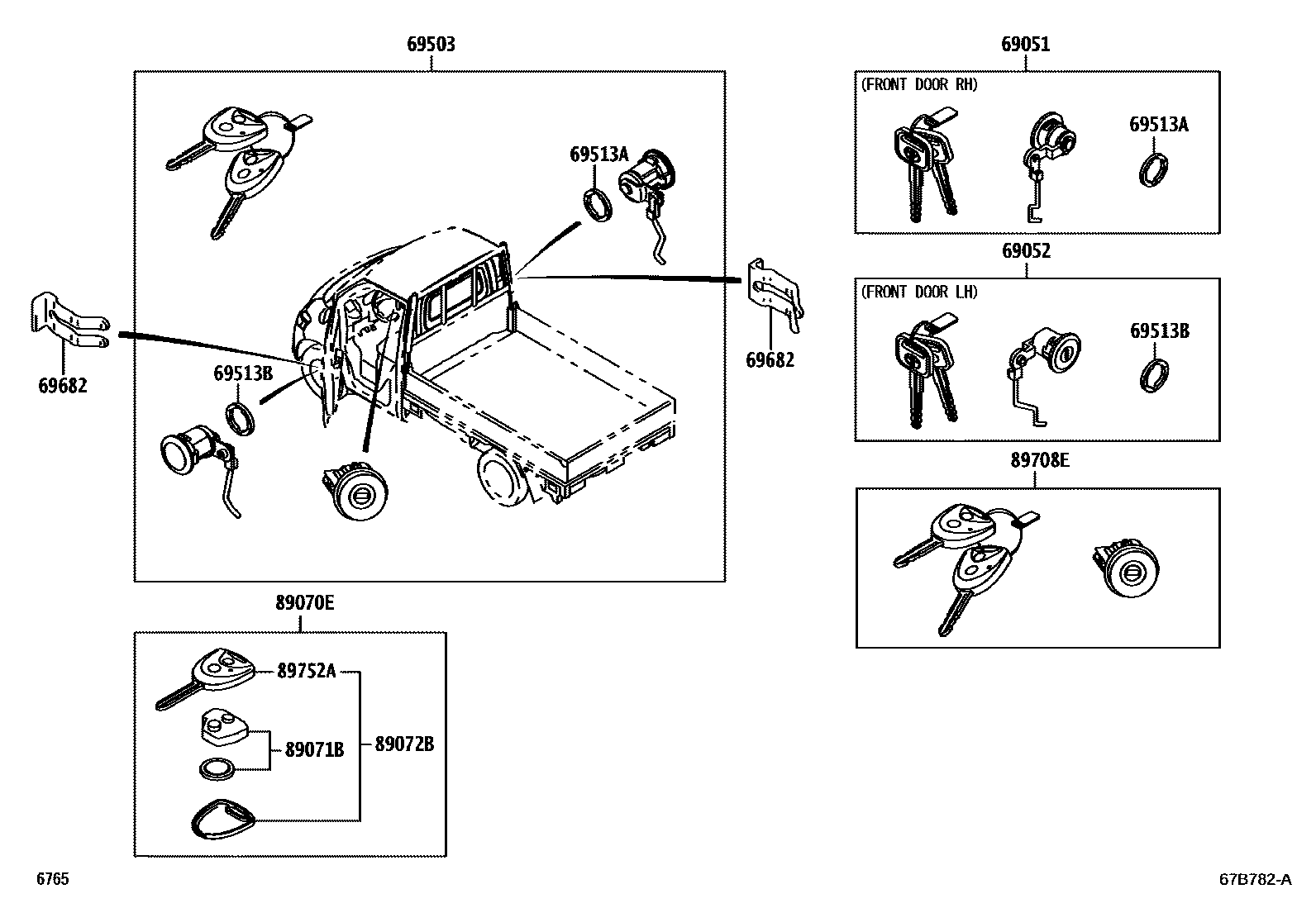

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-BZ050iS403202201-202401

main69051-BZ440iS403202402

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-BZ050iS403202201-202401

main69052-BZ260iS403202402

69503CYLINDER SET, LOCK

main69005-BZF40iS403..PIC202201

main69005-BZJ30iS403..HRF202212

69513APAD, DOOR CYLINDER

main69513-BZ010iS403202201

69513BPAD, DOOR CYLINDER

main69513-BZ010iS403202201

69682RETAINER, LOCK CYLINDER

main61317-BZ020×2iS403202201

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-BZ460iS403202201

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-BZ130iS403202201

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-BZ260iS403202201

89708ECYLINDER SET, LOCK W/TRANSMITTER

main89708-BZ250iS403202201

89752ACASE, TRANSMITTER HOUSING

main89752-BZ290iS403202201

11 parts on this diagram · 2 diagrams in section
