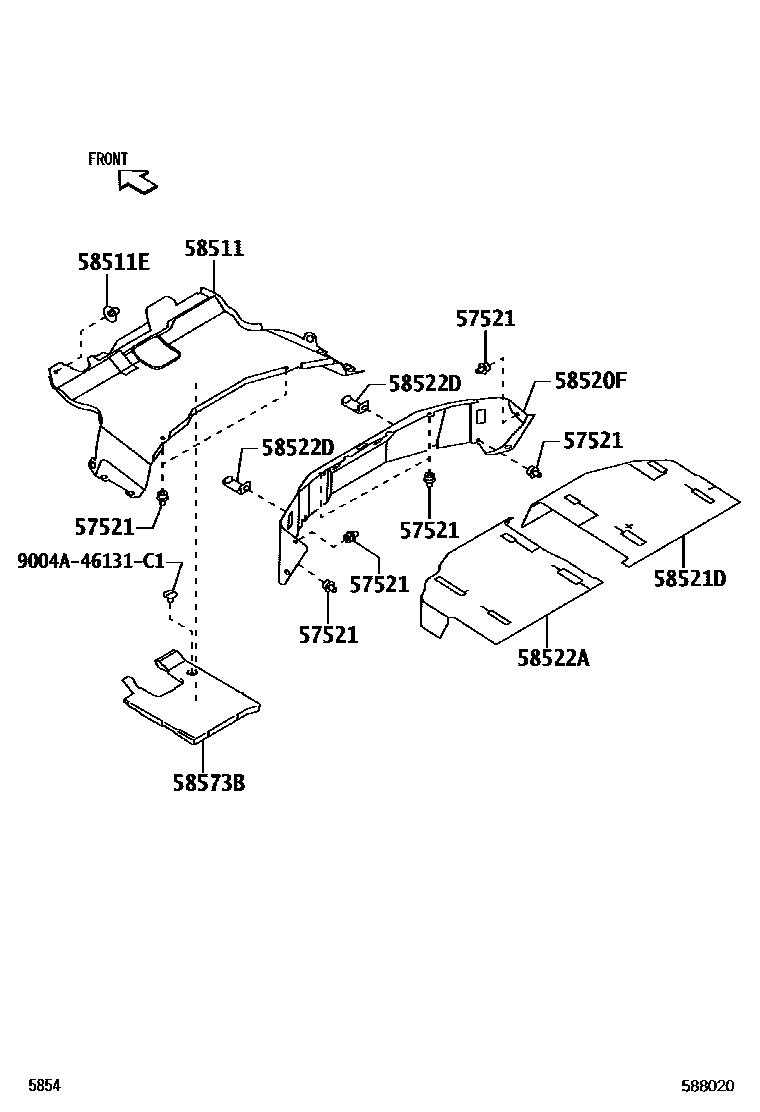

FLOOR MAT & SILENCER PAD

0001 1 0002 1

57521FASTENER, HOOK

main9004A-53002iS403202201

58511MAT, FLOOR, FRONT

main58510-BZX30-B0iS403202201

DK.GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90044-68234-B2iS403202201

DK.GRAY,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-BZ110-B0iS403..PIC202201

DK.GRAY,TRIM1#

main58520-BZ150-B0iS403..HRF202212

DK.GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-BZ660-B0iS403..PIC202201

DK.GRAY,TRIM1#

main58521-BZ730-B0iS403..HRF202212

DK.GRAY,TRIM1#

58522AMAT, ENGINE SERVICE HOLE COVER, LH

main58521-BZ670-B0iS403..PIC202201

DK.GRAY,TRIM1#

main58521-BZ740-B0iS403..HRF202212

DK.GRAY,TRIM1#

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iS403202201

58573BPAD, FRONT FLOOR CENTER

main58573-BZ040iS403..PIC202201

main58573-BZ060iS403..HRF202212

9004A46131C1

main9004A-46131C1

9 parts on this diagram · 2 diagrams in section
