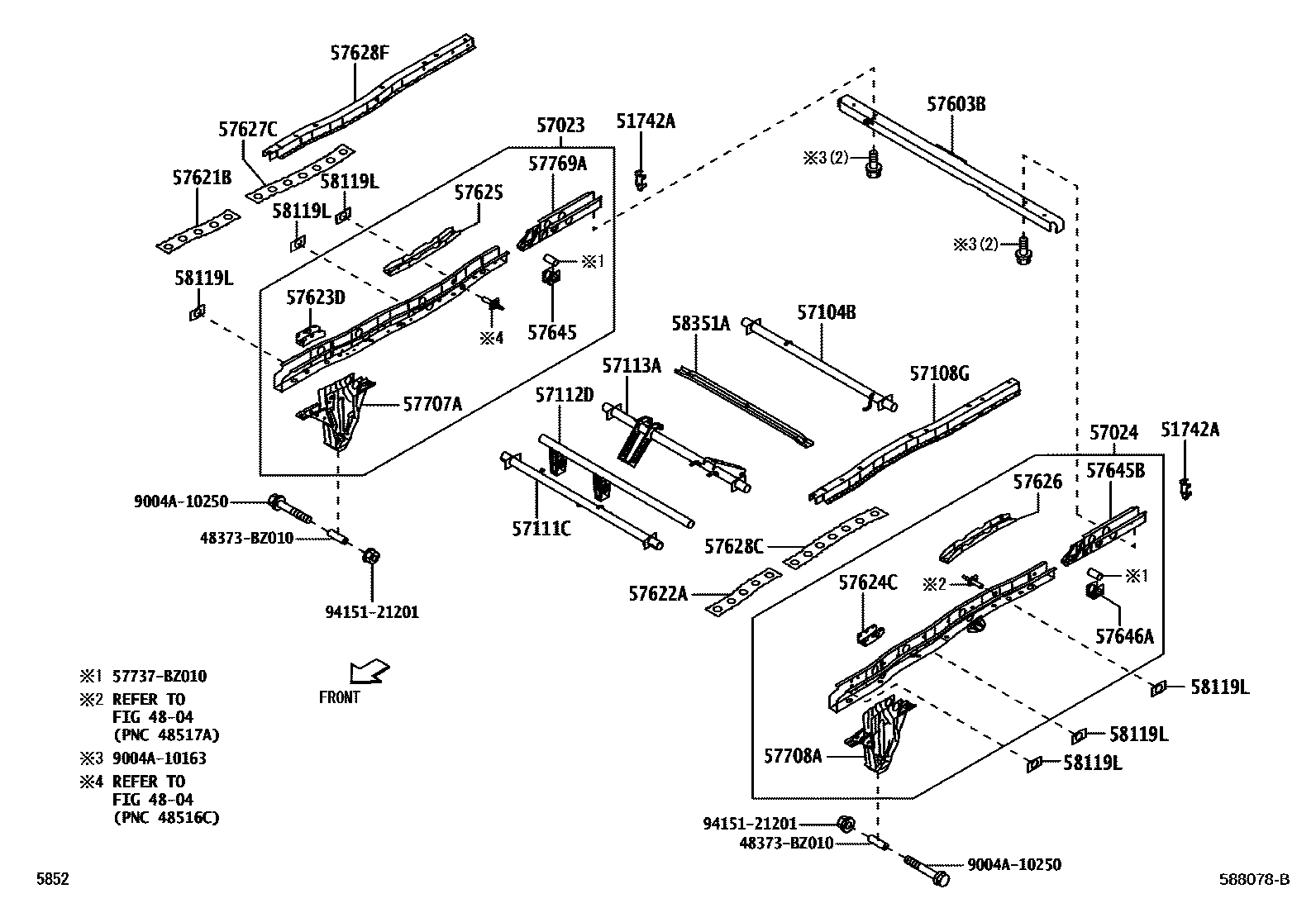

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1FLOOR PANEL 0003 1MEMBER

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

51742ABRACKET, REAR BODY MOUNTING, NO.2

main51743-BZ011×2iS403..PIC202201

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57601-BZ650iS403..PIC202201

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57602-BZ620iS403..PIC202201

57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4

main51204-BZ120iS403..PIC202201

57108GPLATE SUB-ASSY, SIDE FRAME, NO.3 LH

main57118-BZ041iS403..PIC202201

57111CCROSSMEMBER, FLOOR, NO.1

main51201-BZ020iS403..PIC202201

57112DCROSSMEMBER, FLOOR, NO.2

main51202-BZ070iS403..PIC202201

57113ACROSSMEMBER, FLOOR, NO.3

main51203-BZ100iS403..PIC202201

57603BMEMBER SUB-ASSY, REAR FLOOR SIDE REAR, CENTER

main57603-BZ210iS403..PIC202201

57621BPLATE, REAR FLOOR SIDE MEMBER, FRONT RH

main57621-BZ010iS403..PIC202201

57622APLATE, REAR FLOOR SIDE MEMBER, FRONT LH

main57621-BZ010iS403..PIC202201

57623DPLATE, REAR FLOOR SIDE MEMBER, RR RH

main57626-BZ010iS403..PIC202201

57624CPLATE, REAR FLOOR SIDE MEMBER, RR LH

main57627-BZ040iS403..PIC202201

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-BZ010iS403..PIC202201

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57625-BZ010iS403..PIC202201

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57185-BZ020iS403..PIC202201

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57185-BZ020iS403..PIC202201

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57117-BZ041iS403..PIC202201

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-BZ050iS403..PIC202201

57645BREINFORCEMENT, REAR SIDE MEMBER

main57769-BZ020iS403..PIC202201

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57645-BZ050iS403..PIC202201

57707APLATE SUB-ASSY, REAR SPRING, RH

main57707-BZ110iS403..PIC202201

57708APLATE SUB-ASSY, REAR SPRING, LH

main57708-BZ110iS403..PIC202201

57769AREINFORCEMENT, UPPER CONTROL LINK BRACKET

main57769-BZ020iS403..PIC202201

58119LPLATE, REAR FLOOR SIDE

main51311-BZ020×6iS403..PIC202201

58351ABRACKET, SPARE WHEEL CARRIER

main58359-87Z02iS403..PIC202201

48373BZ010SPACER, REAR SPRING

main48373-BZ010

57737BZ010REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH

main57737-BZ010

9004A10163

main9004A-10163

9004A10250

main9004A-10250

9415121201

main94151-21201

32 parts on this diagram · 3 diagrams in section
