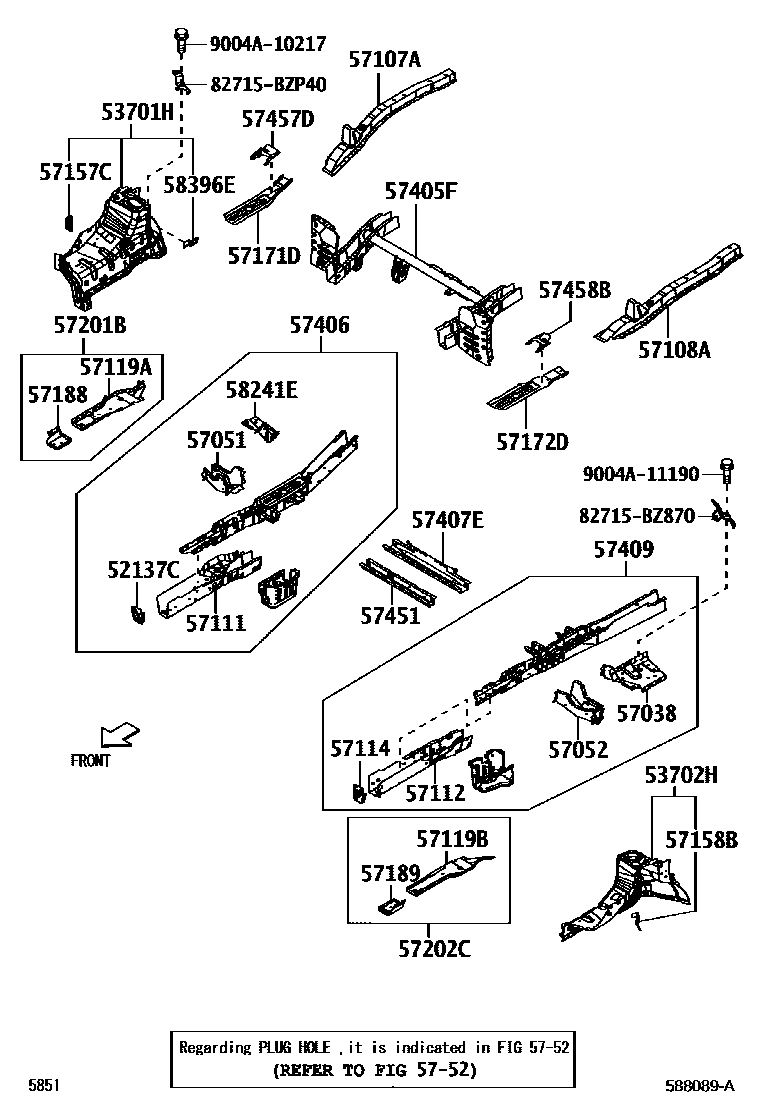

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1MEMBER 0002 1FLOOR PANEL 0003 1MEMBER 0004 1FLOOR PANEL

52137CBRACKET, FRONT BUMPER ARM MOUNTING, NO.3

main52141-BZ110iS403202201

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-BZ800iS403..PIC202201

main53701-BZ850iS403..HRF202212

53702HAPRON SUB-ASSY, FENDER, LH

main53702-BZA10iS403..PIC202201

main53702-BZA60iS403..HRF202212

57038STAY SUB-ASSY, FRONT STEP, LH

main57038-BZ010iS403202201

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ250iS403202201

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ160iS403202201

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-BZ120iS403..PIC202201

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-BZ120iS403..PIC202201

57111MEMBER, FRONT SIDE, RH

main57111-BZ300iS403202201

57112MEMBER, FRONT SIDE, LH

main57112-BZ320iS403..PIC202201

main57112-BZ380iS403..HRF202212

57114EXTENSION, FRONT SIDE MEMBER, LH

main57202-BZ060iS403202201

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-BZ080iS403202201

57119BPLATE, FRONT SIDE MEMBER, FRONT LH

main57129-BZ080iS403202201

57157CBRACKET, FLEXIBLE HOSE, FRONT RH

main57157-BZ040iS403202201

57158BBRACKET, FLEXIBLE HOSE, FRONT LH

main57158-BZ050iS403202201

57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH

main57171-BZ050iS403..PIC202201

57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH

main57172-BZ040iS403..PIC202201

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-BZ010iS403202201

57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-BZ020iS403202201

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57203-BZ020iS403202201

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57204-BZ050iS403202201

57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-BZ100iS403..PIC202201

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ340iS403..PIC202201

main57406-BZ360iS403..HRF202212

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-BZ090iS403..PIC202201

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ330iS403..PIC202201

main57409-BZ350iS403..HRF202212

57451MEMBER, FRONT FLOOR CROSS

main57451-BZ200iS403202201

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57145-BZ110iS403..PIC202201

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57146-BZ100iS403..PIC202201

5752HOLE PLUG

→ Go to FIG 57-52

58241EPANEL, FLOOR SIDE, FRONT RH

main57371-BZ020iS403202201

58396EBRACKET, WIRE HARNESS CLAMP

main58396-BZ040iS403202201

82715BZ870BRACKET,WIRING HARNESS CLAMP

main82715-BZ870

82715BZP40BRACKET,WIRING HARNESS CLAMP

main82715-BZP40

9004A10217

main9004A-10217

9004A11190

main9004A-11190

35 parts on this diagram · 4 diagrams in section
