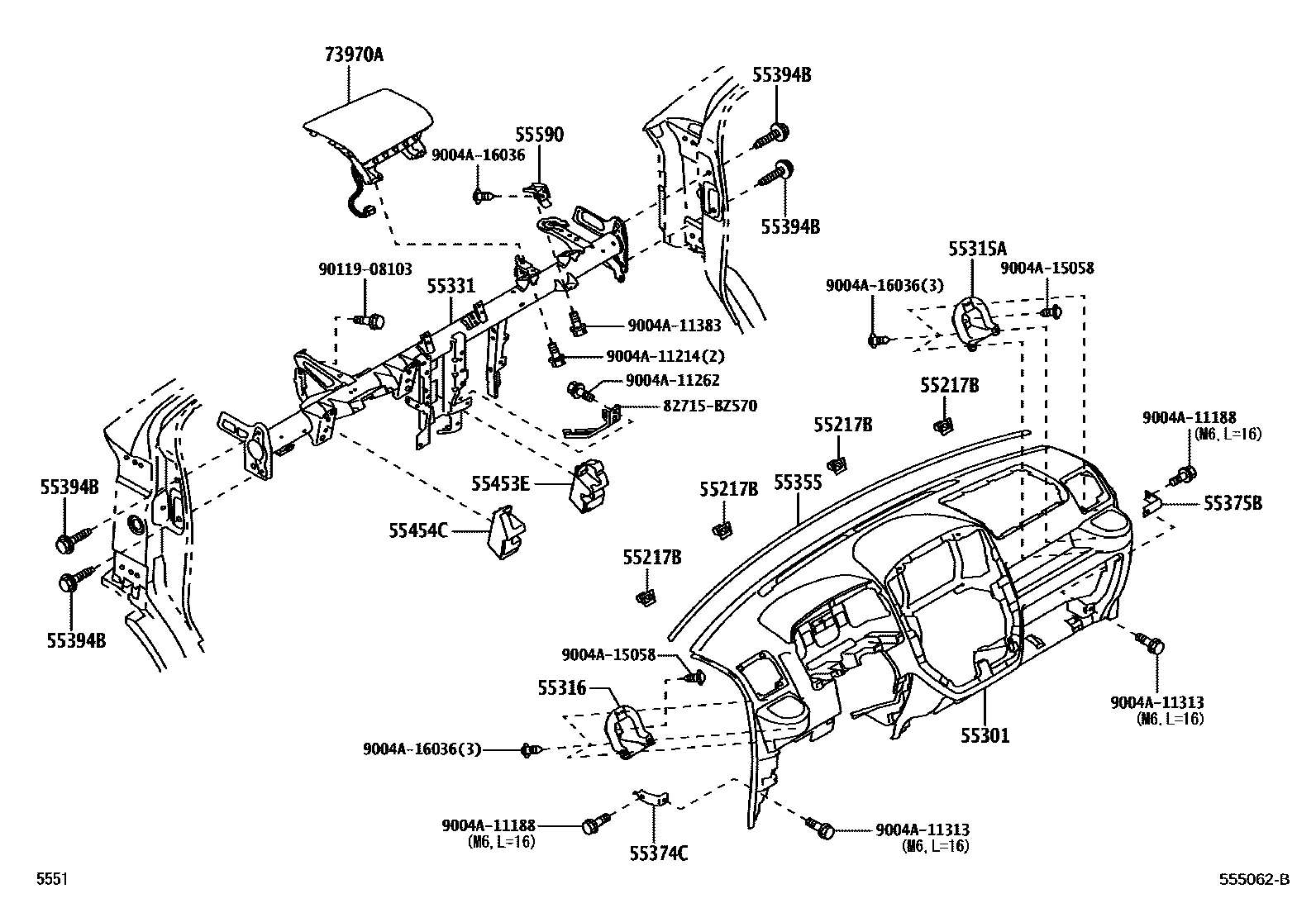

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55217BRETAINER, DASH PANEL SILENCER

main55217-B2011×4iS403202201

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZB20-B0iS403202201

DK.GRAY,TRIM1#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-BZ170iS403202201

55316SPACER, INSTRUMENT PANEL, NO.2

main55316-BZ030iS403202201

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZC60iS403..PIC202201

main55305-BZE40iS403..HRF202212

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-BZ200iS403202201

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-BZ340iS403202201

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-BZ210iS403202201

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020×4iS403202201

55453EPAD, INSTRUMENT, LOWER RH

main55453-BZ180iS403202201

55454CPAD, INSTRUMENT, LOWER LH

main55454-BZ190iS403202201

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-BZ130iS403202201

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ350-B0iS403202201-202411

DK.GRAY,TRIM1#

main73970-BZ351-B0iS403202412

DK.GRAY,TRIM1#

82715BZ570BRACKET,WIRING HARNESS CLAMP

main82715-BZ570

9004A11188

main9004A-11188

9004A11214

main9004A-11214

9004A11262

main9004A-11262

9004A11313

main9004A-11313

9004A11383

main9004A-11383

9004A15058

main9004A-15058

9004A16036

main9004A-16036

9011908103

main90119-08103

22 parts on this diagram · 4 diagrams in section
