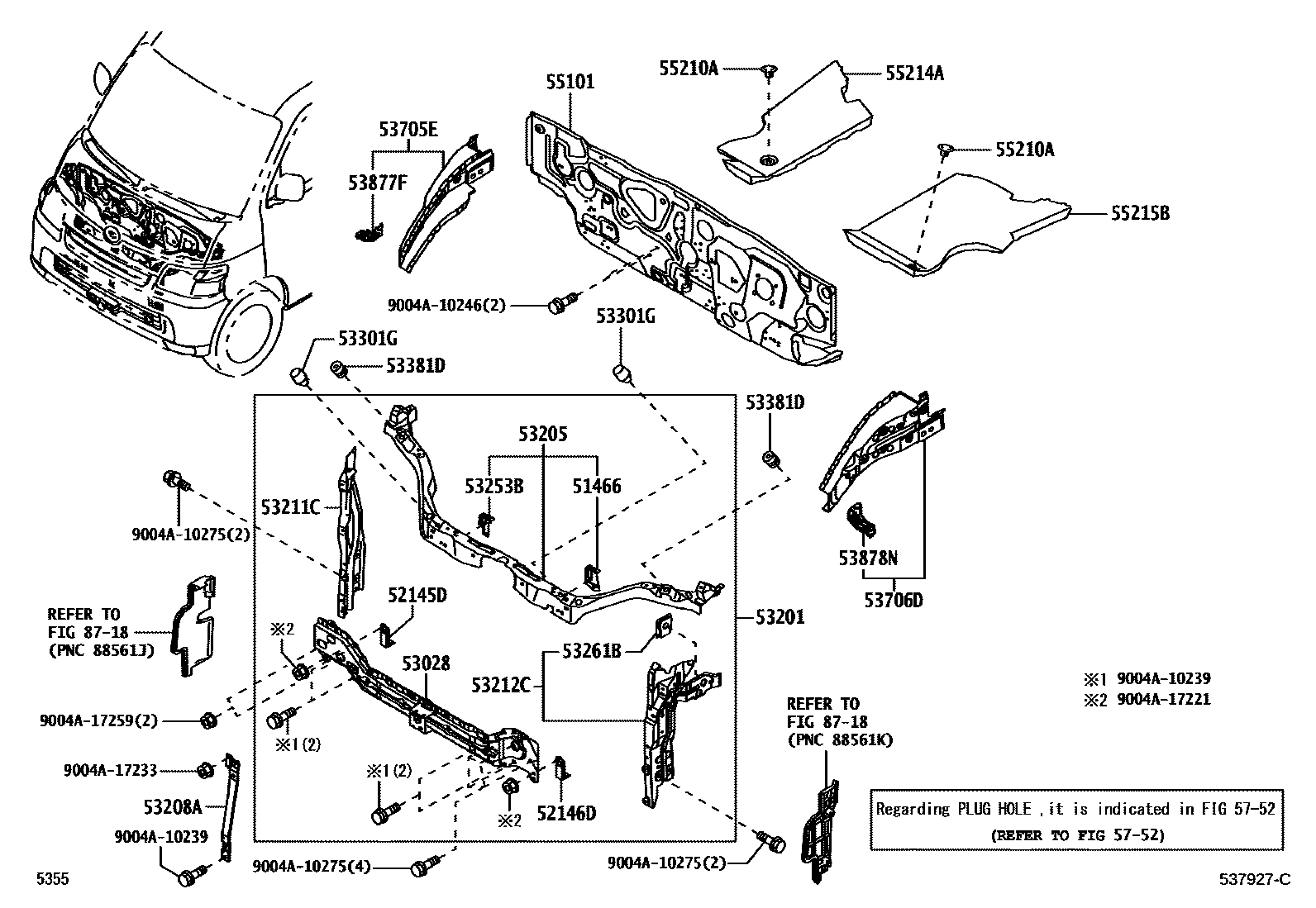

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

51466BRACE, RADIATOR SUPPORT, UPPER LH

main53254-BZ020iS403202201

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-BZ050iS403202201

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52145-BZ050iS403202201

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ080iS403..PIC202201

main53028-BZ091iS403..HRF202212

53201SUPPORT SUB-ASSY, RADIATOR

main53201-BZ370iS403..PIC202201

main53201-BZ390iS403..HRF202212

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ133iS403202201

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-BZ090iS403202201

53211CSUPPORT, RADIATOR, RH

main53211-BZ230iS403202201

53212CSUPPORT, RADIATOR, LH

main53203-BZ210iS403202201

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-BZ020iS403202201

53261BBRACKET, RADIATOR RESERVE TANK MOUNTING

main53261-87Z02iS403202201

53301GCUSHION, HOOD BUMPER

main9004A-54015iS403202201

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-BZ010iS403202201

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-BZ110iS403202201

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-BZ100iS403..PIC202201

main53706-BZ120iS403..HRF202212

53877FBRACKET, FRONT FENDER LINER, RH

main53707-BZ030iS403202201

53878NBRACKET, FRONT FENDER LINER, LH

main53708-BZ020iS403202201

55101PANEL SUB-ASSY, DASH

main55101-BZQ60iS403..HRF..4FC202212

main55101-BZQ70iS403..HRF..5F202212

main55101-BZQ80iS403..TB..4FC202201

main55101-BZQ90iS403..PIC..5F202201

55210ACLIP

main9004A-46131-B0iS403202201

DK.GRAY

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-BZ120iS403202201

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-BZ150iS403202201

5752HOLE PLUG

→ Go to FIG 57-52

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9004A10239

main9004A-10239

9004A10246

main9004A-10246

9004A10275

main9004A-10275

9004A17221

main9004A-17221

9004A17233

main9004A-17233

9004A17259

main9004A-17259

29 parts on this diagram · 2 diagrams in section
