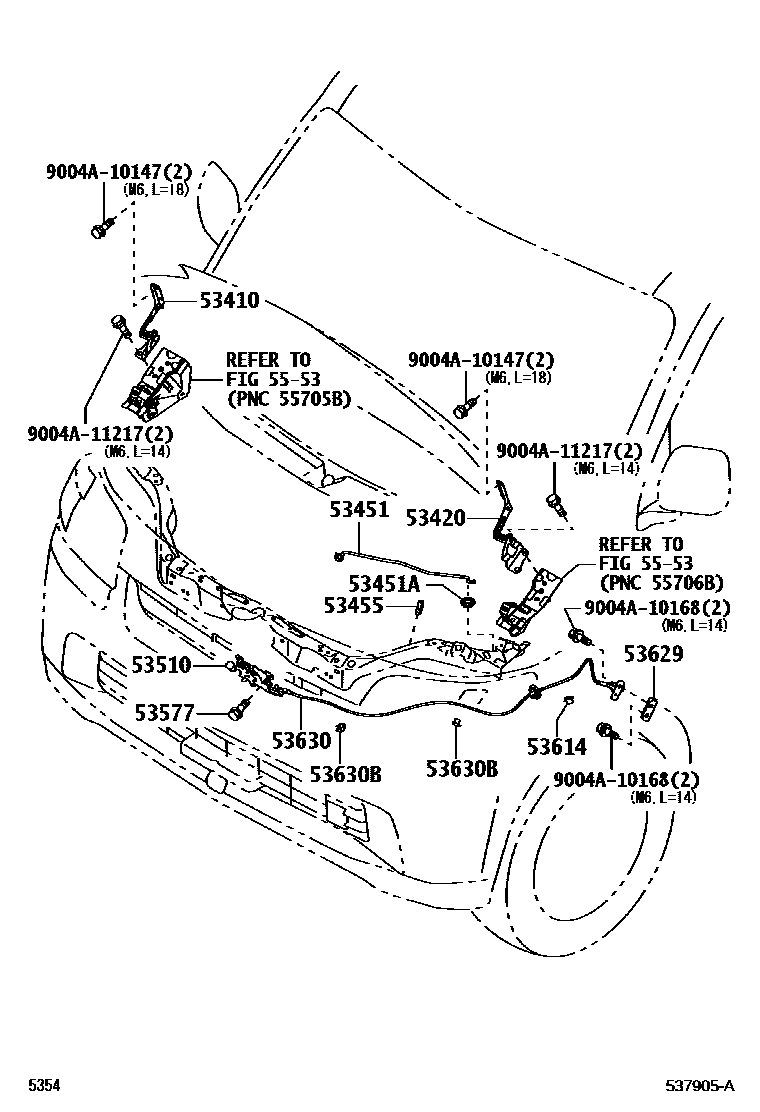

Toyota TOWNACE — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451AGROMMET(FOR HOOD SUPPORT ROD)
53455CLAMP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
53577BOLT, HOOD LOCK
53614CLAMP, HOOD LOCK CONTROL CABLE
53629COVER, HOOD LOCK CONTROL CABLE
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
5553COWL PANEL & WINDSHIELD GLASS
9004A10147
9004A10168
9004A11217
15 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota TOWNACE
This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota TOWNACE. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
