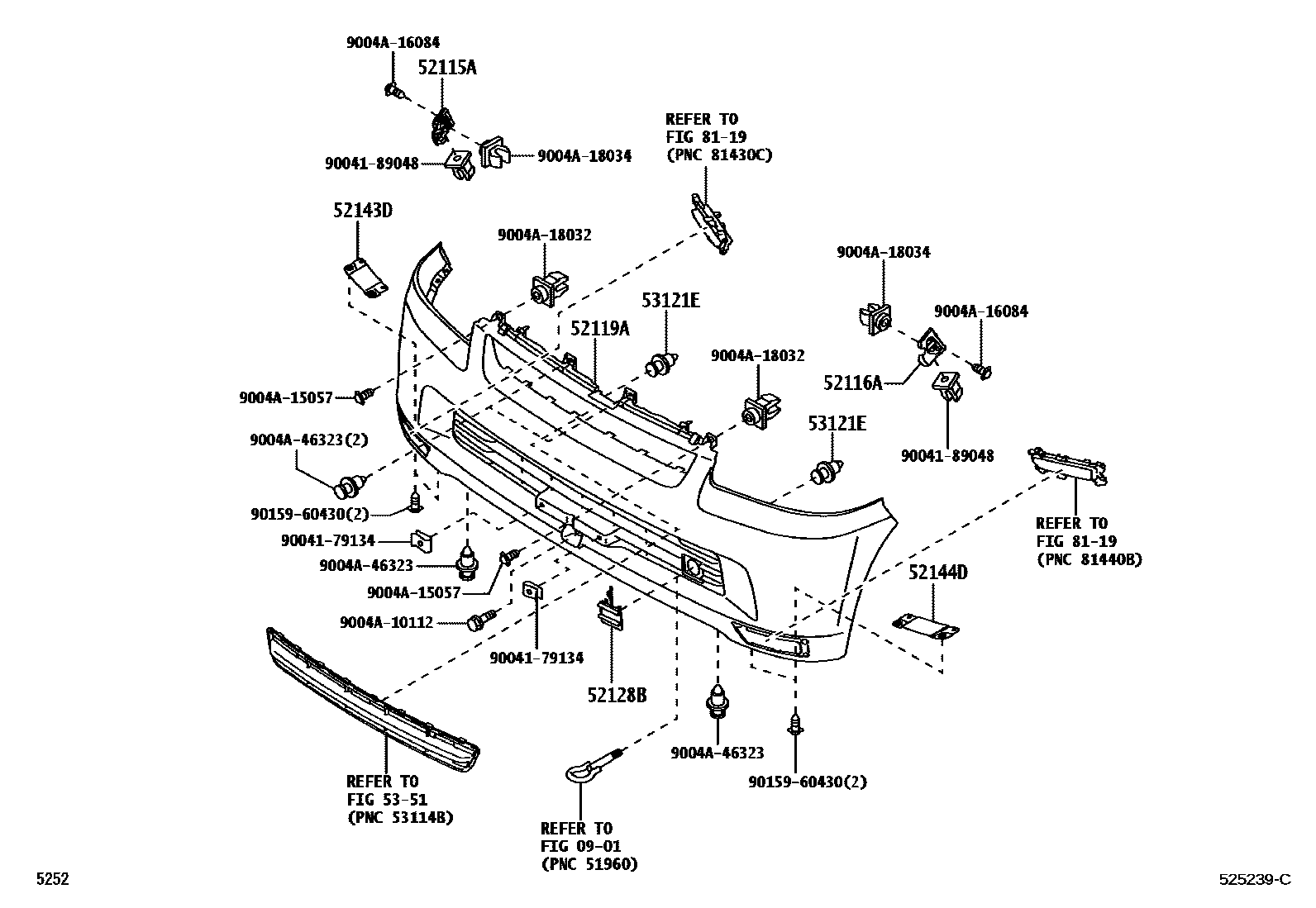

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

0901STANDARD TOOL

→ Go to FIG 09-01

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ290iS403202201

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ280iS403202201

52119ACOVER, FRONT BUMPER

main52119-BZU30iS403..PIC202201

NO PAINT REQ.

main52119-BZW50iS403..HRF202212

PAINT REQ.

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-BZ330iS403202201

52143DBRACKET, FRONT BUMPER SIDE, RH

main52143-BZ040iS403202201

52144DBRACKET, FRONT BUMPER SIDE, LH

main52144-BZ050iS403202201

53121ECLIP(FOR FRONT BUMPER), NO.1

main62217-B2010×2iS403..HRF202212

main9004A-46338×2iS403..PIC202201

5351RADIATOR GRILLE

→ Go to FIG 53-51

8119DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

→ Go to FIG 81-19

9004179134

main90041-79134

9004189048

main90041-89048

9004A10112

main9004A-10112

9004A15057

main9004A-15057

9004A16084

main9004A-16084

9004A18032

main9004A-18032

9004A18034

main9004A-18034

9004A46323

main9004A-46323

9015960430

main90159-60430

19 parts on this diagram · 2 diagrams in section
