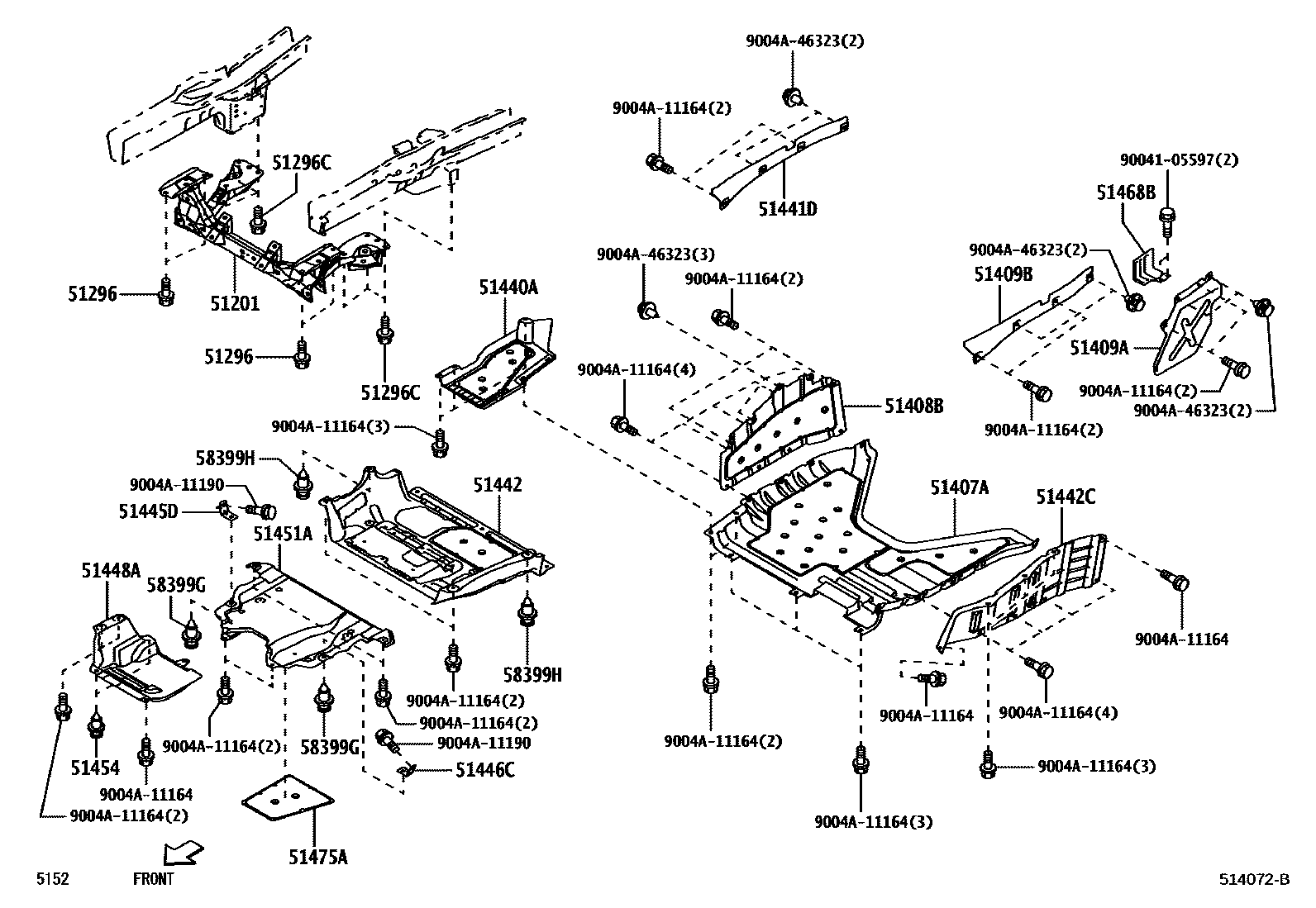

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-BZ160iS403202201

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main9004A-10245×4iS403202201

M14,L=30

51296CBOLT, FRONT SUSPENSION MEMBER MOUNTING

main9004A-10136×6iS403202201

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-BZ010iS403..PIC202201

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-BZ030iS403..PIC202201

51409ACOVER SUB-ASSY, ENGINE UNDER, NO.4

main51452-BZ010iS403..PIC202201

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51454-BZ040iS403..TGL,TS202201

main51454-BZ080iS403..TB202201

51440ACOVER ASSY, ENGINE UNDER

main51440-BZ010iS403..PIC202201

main51440-BZ020iS403..HRF202212

51441DCOVER, ENGINE UNDER

main51453-BZ040iS403..TGL,TS202201

main51453-BZ080iS403..TB202201

51442COVER, ENGINE UNDER, NO.2

main51410-BZ080iS403202201

51442CCOVER, ENGINE UNDER, LH

main51409-BZ020iS403..PIC202201

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-BZ010iS403202201

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-BZ010iS403202201

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-BZ040iS403202201

51451ACOVER, ENGINE UNDER, CENTER

main51451-BZ160iS403202201

51454CLIP

main9004A-46323×2iS403202201

51468BINSULATOR, ENGINE UNDER COVER HEAT

main51468-BZ010iS403..PIC202201

main51468-BZ020iS403..HRF202212

51475ASILENCER, ENGINE UNDER COVER, CENTER

main51475-BZ010iS403202201

58399GCLIP, NO.1(FOR REAR UNDER COVER)

main9004A-46323×2iS403202201

58399HCLIP, NO.2(FOR REAR UNDER COVER)

main9004A-46323×2iS403202201

9004105597

main90041-05597

9004A11164

main9004A-11164

9004A11190

main9004A-11190

9004A46323

main9004A-46323

24 parts on this diagram · 2 diagrams in section
