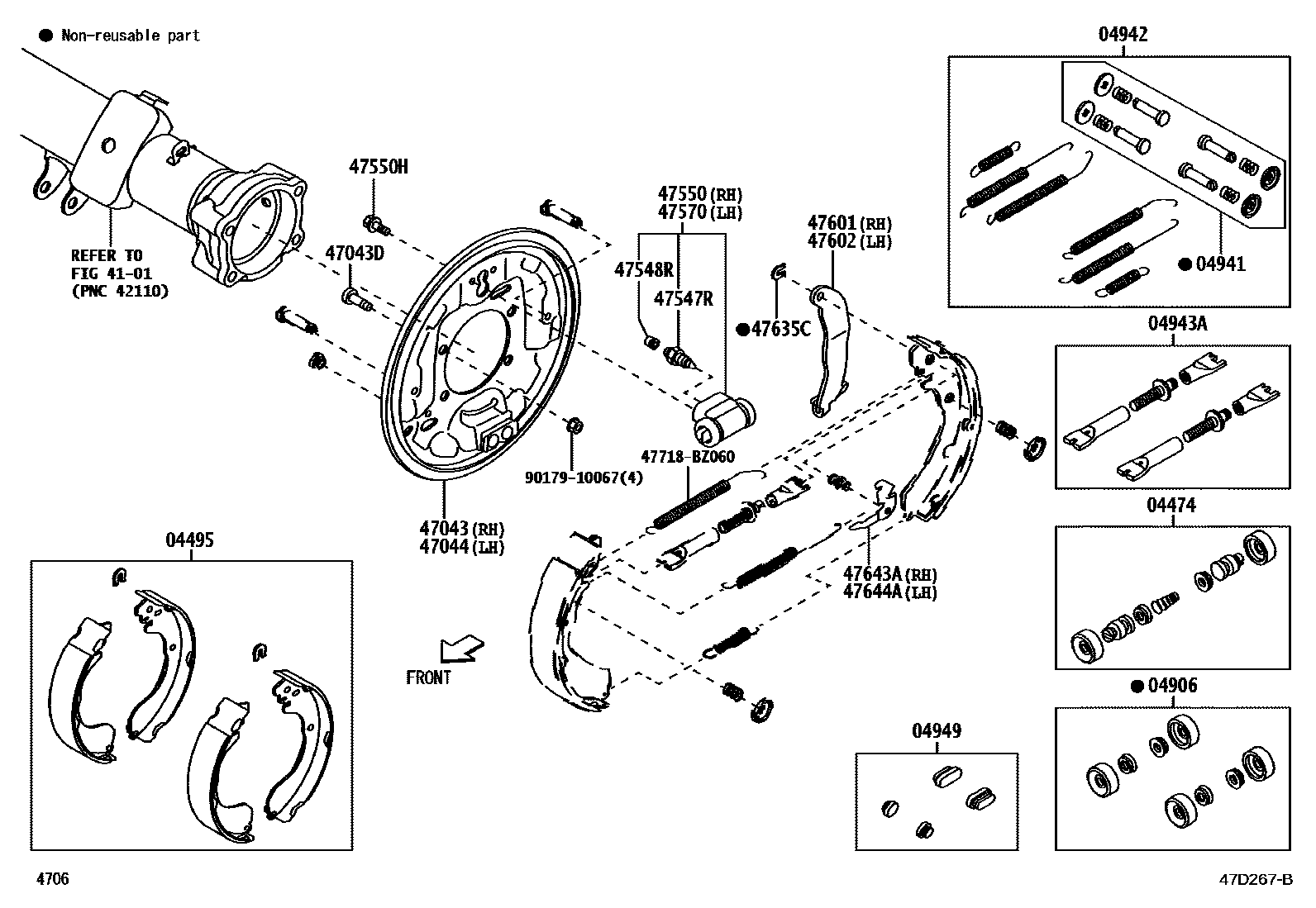

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-BZ100iS403202201

04495SHOE KIT, REAR BRAKE

main04495-BZ170iS403202201

MARK AK L608 EE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-BZ120iS403202201

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-BZ040iS403202201

04942SPRING KIT, REAR BRAKE

main04942-BZ080iS403202201

04943ASTRUT KIT, REAR BRAKE

main04943-BZ080iS403202201

04949PLUG KIT, REAR BRAKE

main04949-BZ050iS403202201

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ060iS403202201

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main9004A-10199×8iS403202201

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ060iS403202201

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ110×2iS403202201

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ080×2iS403202201

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47560-BZ090iS403202201

47550HBOLT(FOR REAR WHEEL CYLINDER)

main9004A-10131×4iS403202201

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-BZ090iS403202201

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-BZ090iS403202201

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-BZ090iS403202201

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ030×2iS403202201

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ090iS403202201

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ080iS403202201

47718BZ060SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-BZ060

9017910067

main90179-10067

23 parts on this diagram · 1 diagram in section
