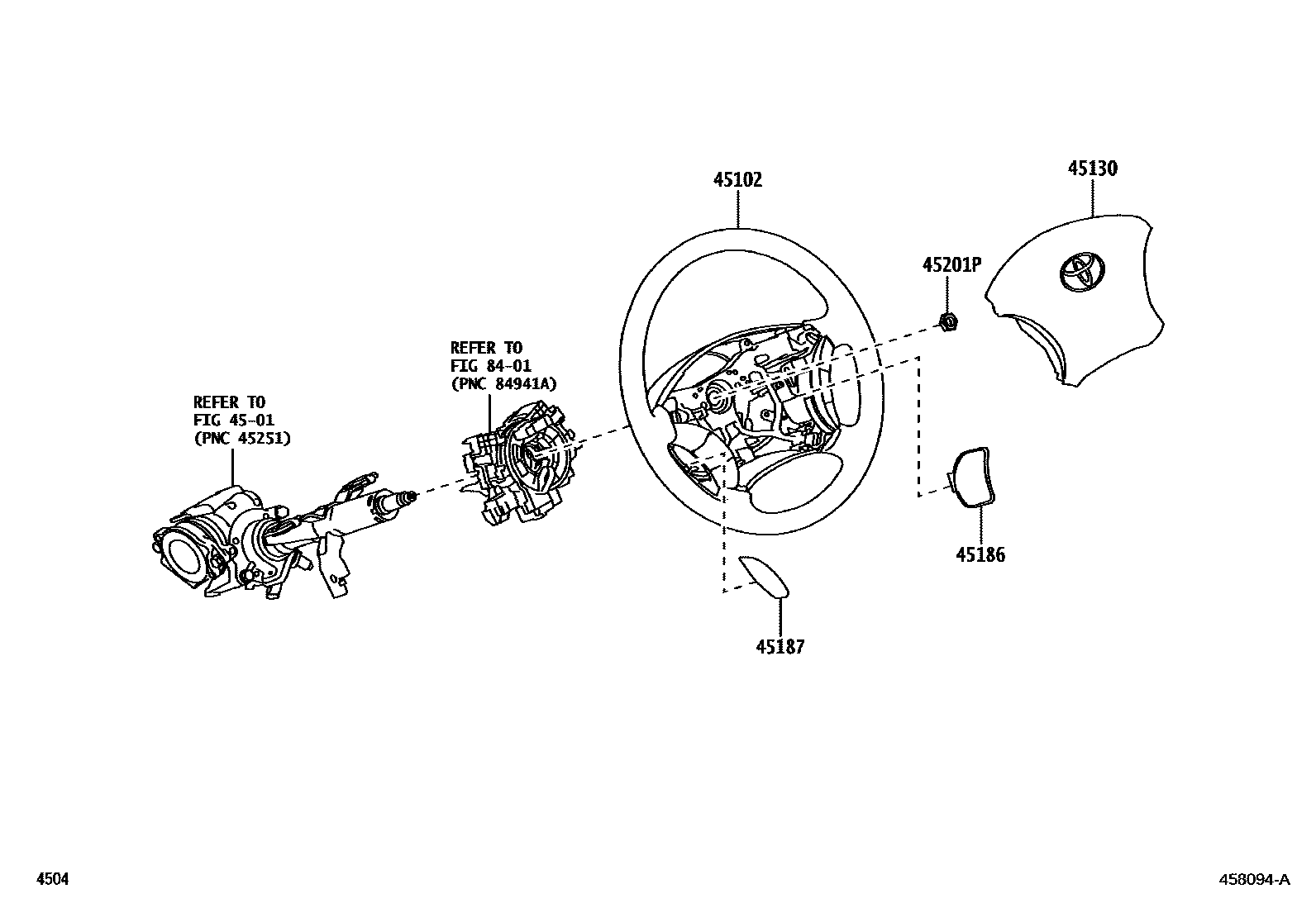

STEERING WHEEL

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45102WHEEL SUB-ASSY, STEERING

main45102-BZB20-B0iS403202201

DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-BZA60-B0iS403202201-202306

DK.GRAY,TRIM1#

main45130-BZA61-B0iS403202307

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-BZ040-B0iS403202201

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-BZ040-B0iS403202201

DK.GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main9004A-17176iS403202201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section
