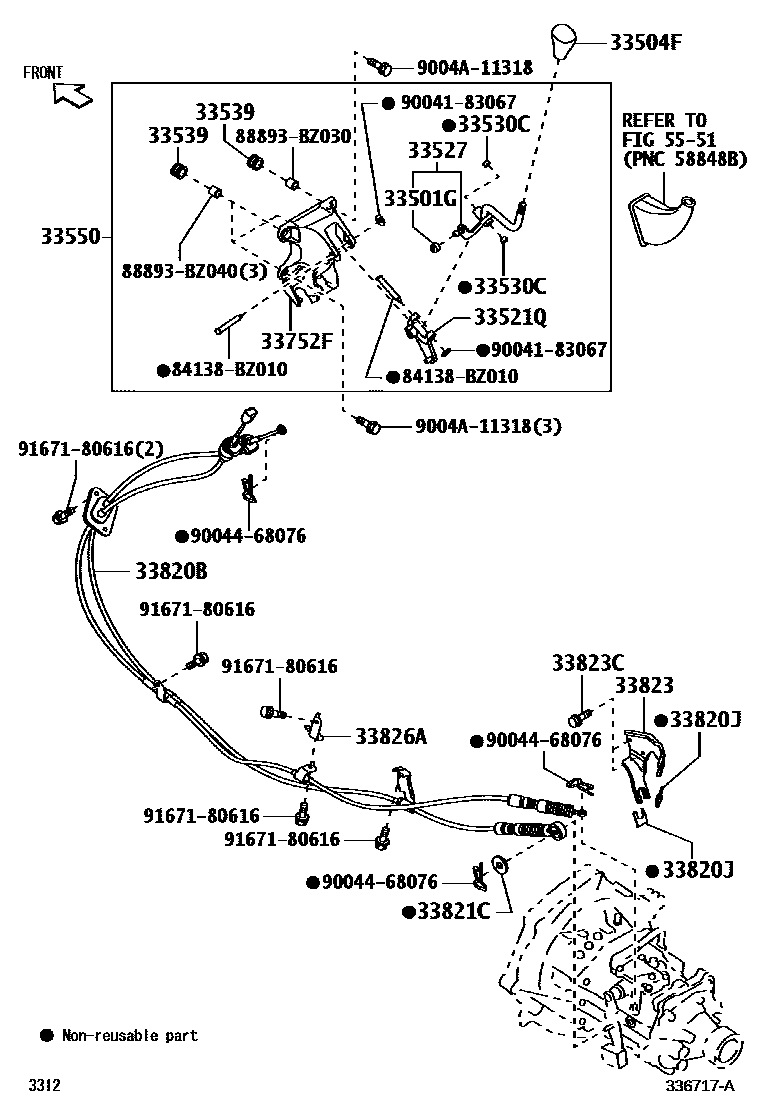

SHIFT LEVER & RETAINER

0001 1MTM 0002 1ATM

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main33548-BZ080iS403..5F202201

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ010-C1iS403..5F202201

BLACK,TRIM1#

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-BZ010iS403..5F202201

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33055-BZ030iS403..5F202201

33530CBUSH (FOR SHIFT LEVER)

main33548-BZ090×2iS403..5F202201

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-BZ010×4iS403..5F202201

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ101iS403..5F202201

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-BZ020iS403..5F202201

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ250iS403..4FC202201

main33820-BZ261iS403..5F202201

33820JCLIP(FOR TRANSMISSION CONTROL CABLE)

main90044-68367×2iS403..5F202201

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main9004A-20016iS403..5F202201

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ040iS403..5F202201

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90105-T0120×2iS403..5F202201

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33823-BZ080iS403..5F202201

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

84138BZ010

main84138-BZ010

88893BZ030COLLAR (FOR COOLER IDLER PULLEY)

main88893-BZ030

88893BZ040COLLAR (FOR COOLER IDLER PULLEY)

main88893-BZ040

9004183067

main90041-83067

9004468076

main90044-68076

9004A11318

main9004A-11318

9167180616

main91671-80616

22 parts on this diagram · 2 diagrams in section
