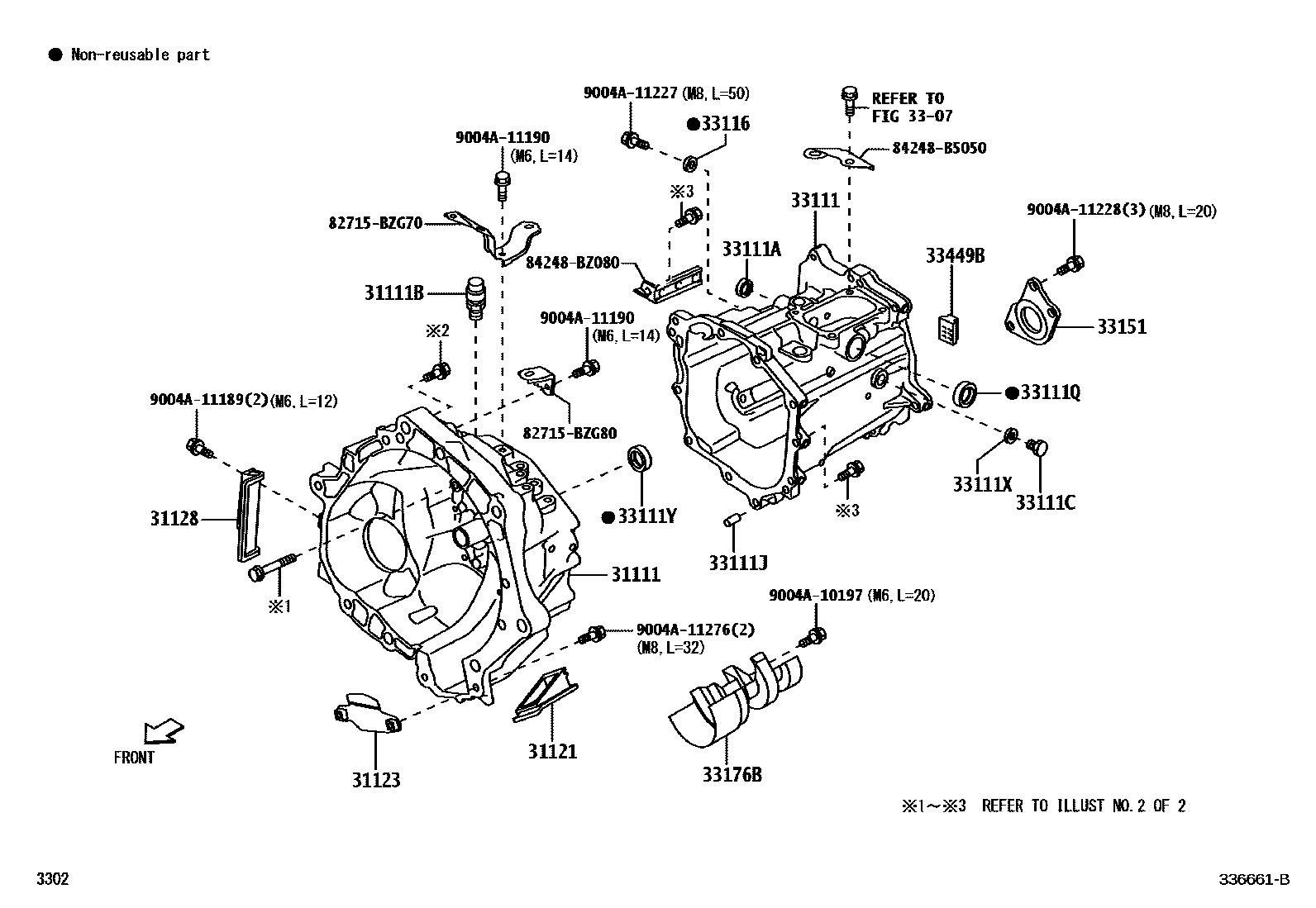

Toyota 642210 — CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111BPLUG(FOR CLUTCH HOUSING)
31121COVER, CLUTCH HOUSING, NO.1
31123COVER, CLUTCH HOUSING, NO.2
31128COVER, CLUTCH HOUSING UNDER
3307GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111QSEAL, OIL(FOR TRANSMISSION CASE)
33111XGASKET, TRANSMISSION CASE PLUG
33111YSEAL, OIL(FOR TRANSMISSION CASE)
33116GASKET, MANUAL TRANSMISSION CASE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33449BMAGNET, TRANSMISSION
82715BZG70BRACKET,WIRING HARNESS CLAMP
82715BZG80BRACKET,WIRING HARNESS CLAMP
84248B5050CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS
84248BZ080CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS
9004A10197
9004A11189
9004A11190
9004A11227
9004A11228
9004A11276
27 parts on this diagram · 2 diagrams in section
CLUTCH HOUSING & TRANSMISSION CASE (MTM) for Toyota 642210
This section contains 31 genuine Toyota parts for the CLUTCH HOUSING & TRANSMISSION CASE (MTM) system of the Toyota 642210. Key components include: HOUSING, CLUTCH, PLUG(FOR CLUTCH HOUSING), COVER, CLUTCH HOUSING, NO.1, COVER, CLUTCH HOUSING, NO.2, COVER, CLUTCH HOUSING UNDER.
