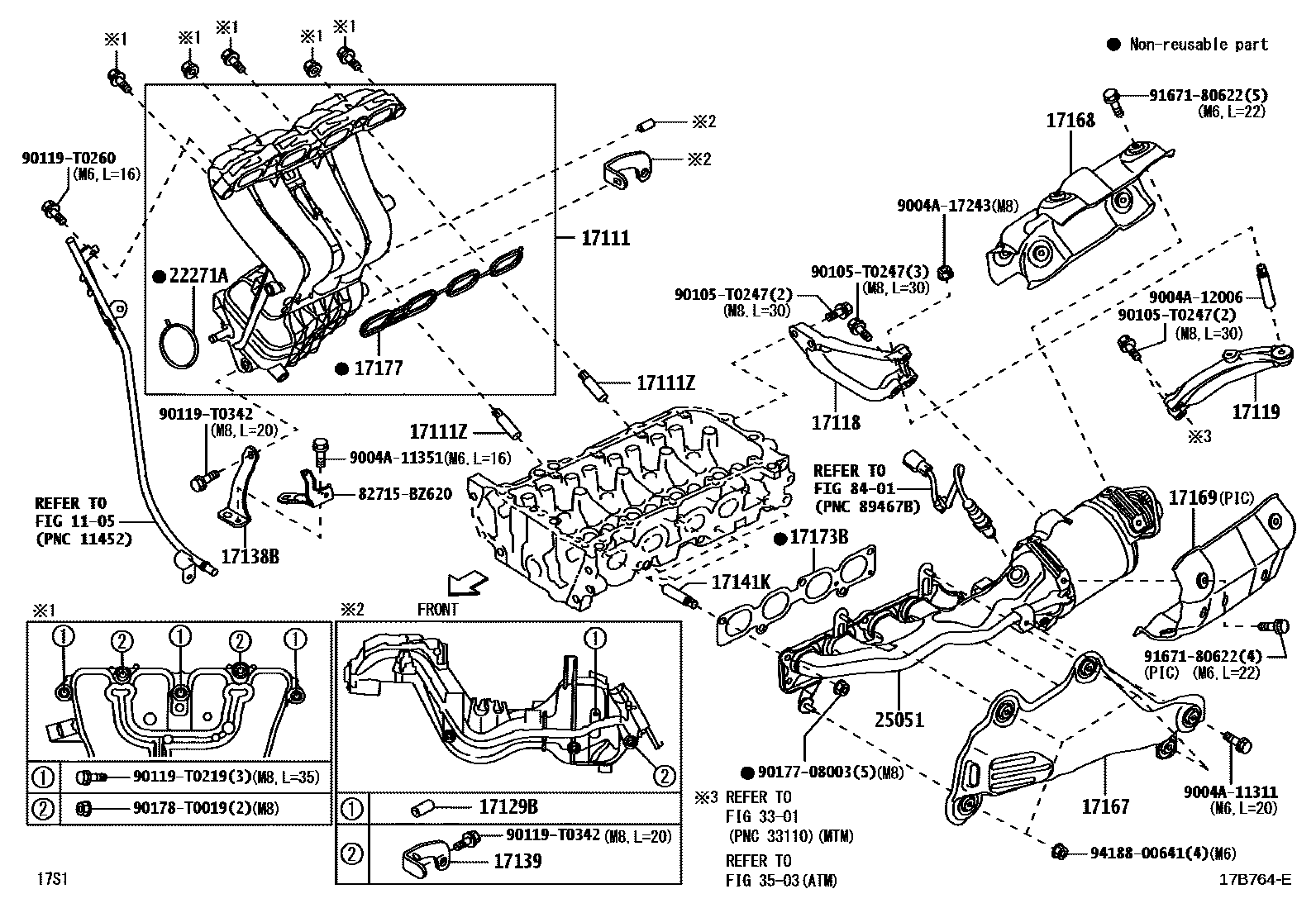

MANIFOLD

1105CYLINDER BLOCK

→ Go to FIG 11-05

17111MANIFOLD, INTAKE

main17120-BZ110i2NRVE..S403202201

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-T0019×2i2NRVE..S403202201

17118STAY, MANIFOLD

main17118-BZ220i2NRVE..S403202201

17119STAY, MANIFOLD, NO.2

main17119-BZ020i2NRVE..S403202201

17129BPLUG

main90043-39029i2NRVE..S403202201

17138BSTAY, INTAKE MANIFOLD

main17138-BZ120i2NRVE..S403202201

17139STAY, MANIFOLD, NO.2

main17139-BZ010i2NRVE..S403202201

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063×5i2NRVE..S403202201

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-BZ160i2NRVE..S403202201

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-BZ051i2NRVE..S403202201

17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-BZ011i2NRVE..S403..PIC202201

17173BGASKET, EXHAUST MANIFOLD

main17173-BZ070i2NRVE..S403202201

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i2NRVE..S403202201

22271AGASKET, THROTTLE BODY

main22271-BZ040i2NRVE..S403202201

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-BZ190i2NRVE..S403202201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

82715BZ620BRACKET,WIRING HARNESS CLAMP

main82715-BZ620

9004A11311

main9004A-11311

9004A11351

main9004A-11351

9004A12006

main9004A-12006

9004A17243

main9004A-17243

90105T0247

main90105-T0247

90119T0219

main90119-T0219

90119T0260

main90119-T0260

90119T0342

main90119-T0342

9017708003

main90177-08003

90178T0019

main90178-T0019

9167180622

main91671-80622

9418800641

main94188-00641

30 parts on this diagram · 1 diagram in section
