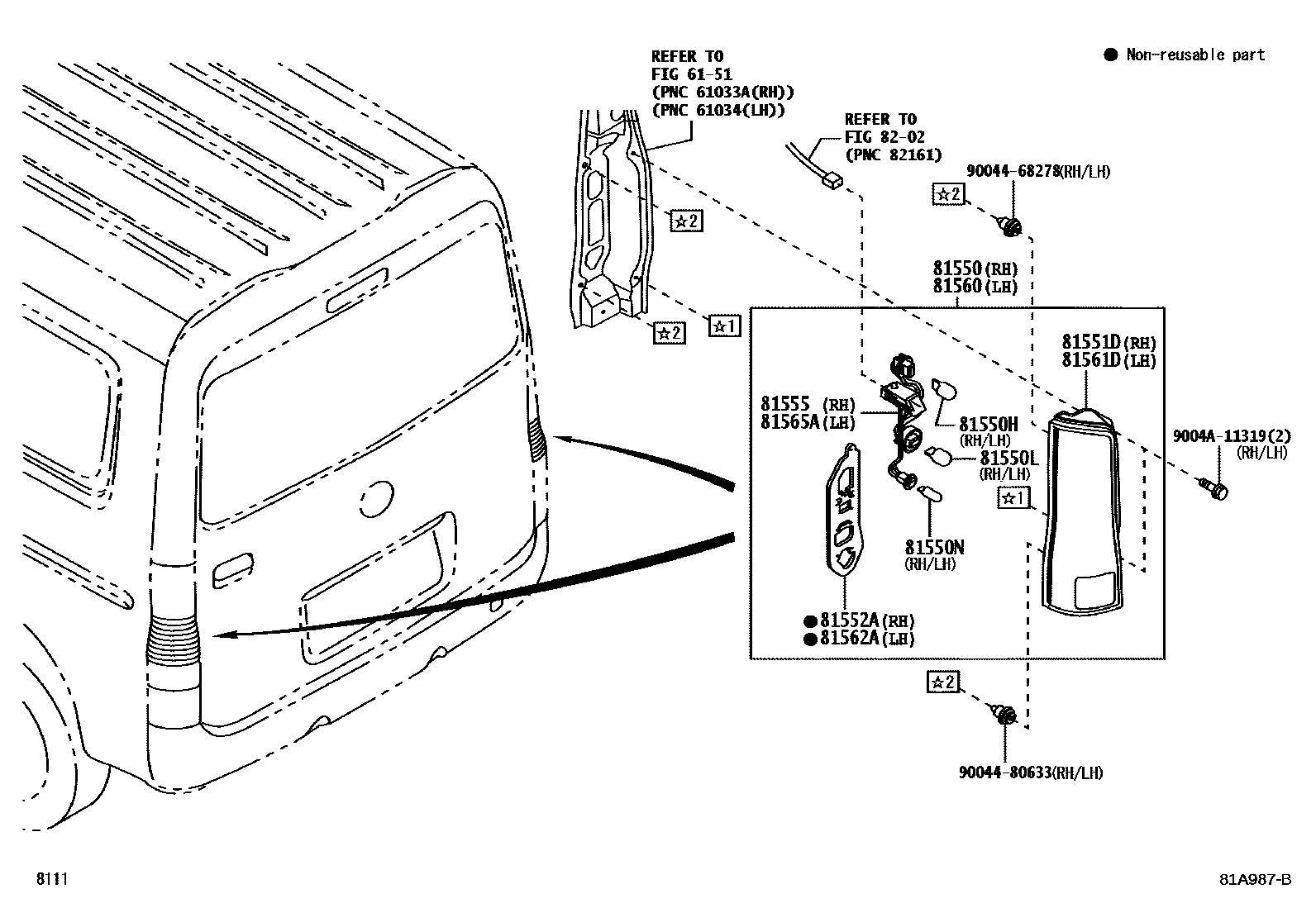

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6151SIDE MEMBER

→ Go to FIG 61-51

81550LAMP ASSY, REAR COMBINATION, RH

main81550-BZ120iS403..VAN..(CRI,GEN,MMR)202205

main81550-BZ140iS403..T2202205

81550HBULB, TAIL & STOP LAMP

main81945-BZ010×2iS403..GCC202205-202402

main81945-BZ080×2iS403..GCC202403

main90049-51130×2iS403..VAN..(CRI,GEN,MMR)202205

12V 21/5W

main9004A-81021×2iS403..T2202205

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51179×2iS403..VAN..(CRI,GEN,MMR)202205

12V 21W

main9004A-81022×2iS403..T2202205

main9004A-81031×2iS403..GCC202205

12V 21W AMBER

81550NBULB, BACK UP LAMP

main90049-51194×2iS403..VAN..(CRI,GEN,MMR)202205

12V 16W

main9004A-81033iS403..GCC202205

12V 16W CLEAR

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-BZ100iS403..VAN..(CRI,GEN,MMR)202205

main81551-BZ130iS403..T2202205

main81551-BZ370iS403..GCC202205

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-BZ010iS403..VAN..(CRI,GEN,MMR)202205

main81552-BZ040iS403..GCC202205

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-BZ030iS403..VAN..(CRI,GEN,MMR)202205

main81559-BZ040iS403..GCC202205

main9004B-58002iS403..T2202205

81560LAMP ASSY, REAR COMBINATION, LH

main81560-BZ120iS403..VAN..(CRI,GEN,MMR)202205

main81560-BZ140iS403..T2202205

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-BZ100iS403..VAN..(CRI,GEN,MMR)202205

main81561-BZ130iS403..T2202205

main81561-BZ450iS403..GCC202205

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-BZ010iS403..VAN..(CRI,GEN,MMR)202205

main81562-BZ040iS403..GCC202205

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-BZ030iS403..VAN..(CRI,GEN,MMR)202205

main81565-BZ100iS403..GCC202205

main9004B-58002iS403..T2202205

8202WIRING & CLAMP

→ Go to FIG 82-02

9004468278

main90044-68278

9004480633

main90044-80633

9004A11319

main9004A-11319

16 parts on this diagram · 3 diagrams in section
