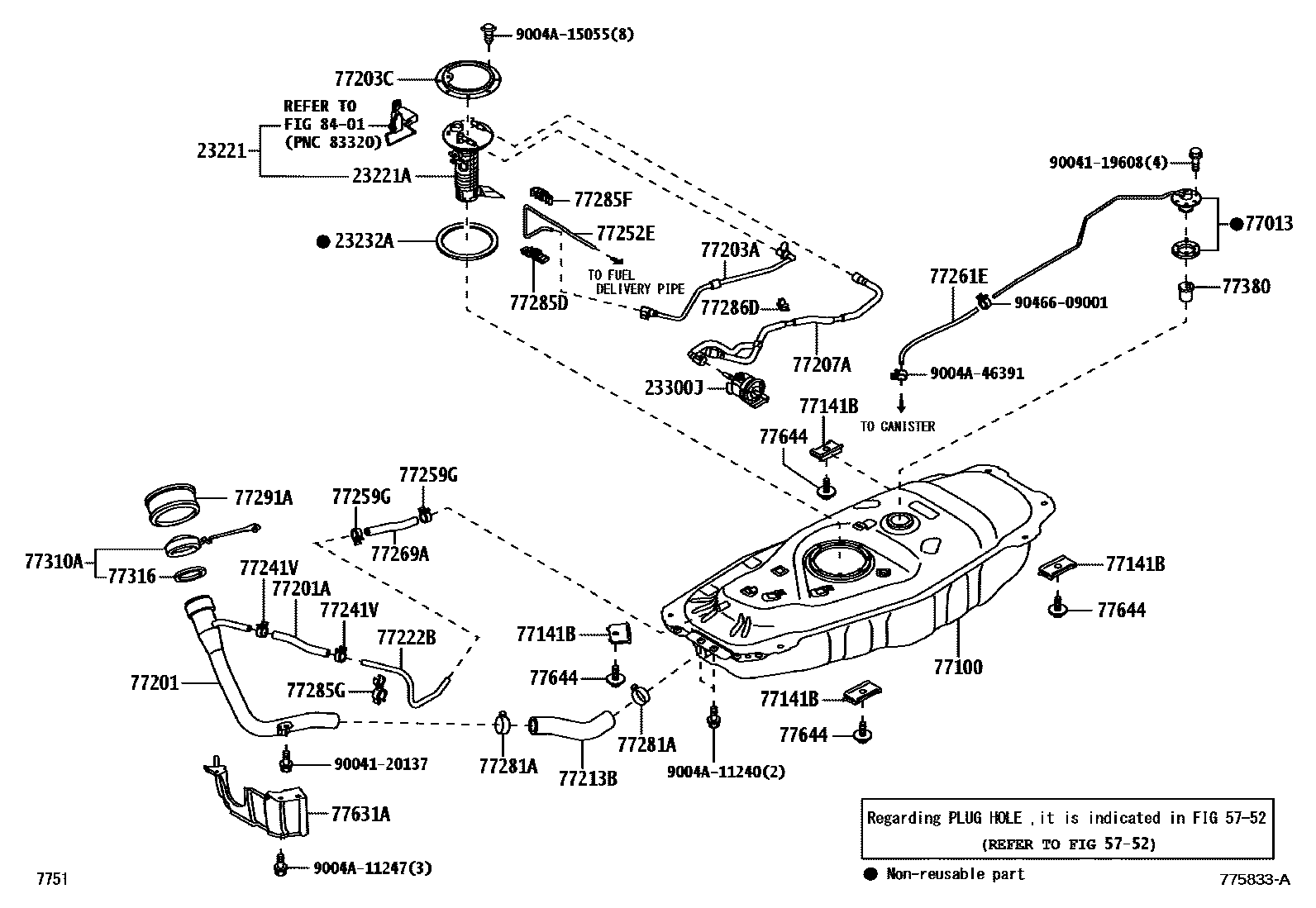

FUEL TANK & TUBE

0001 1TANK & TUBING 0002 1CANISTER 0003 1FUEL LID

23221PUMP, FUEL

main23210-BZ260i2NRVE..S403202205

23221APUMP, FUEL, NO.1

main23100-BZ250i2NRVE..S403202205

23232AGASKET, FUEL PUMP

main23232-BZ010i2NRVE..S403202205

23300JFILTER ASSY, FUEL

main23300-BZ020i2NRVE..S403202205

5752HOLE PLUG

→ Go to FIG 57-52

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ030iS403202205

77100TANK ASSY, FUEL

main77001-BZ430iS403202205

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ090iS403202205

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ200iS403..GEN,MMR202205

main77201-BZ220iS403..CRI,GCC,THAI202205

PHILIPPINE

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-BZ050iS403..GEN,MMR202205

L=195

main77269-BZ060iS403..LHD..R..GEN202205-202305

L=195

main77269-BZ060iS403..CRI,GCC,THAI202205-202305

L=195,PHILIPPINE

main77269-BZ410iS403..CRI,GCC,THAI202306

PHILIPPINE

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ170iS403202205

77203CBRACKET, FUEL PUMP

main23265-BZ010iS403202205

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-BZ040iS403202205

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ060iS403..LHD..R..GEN202205-202305

PHILIPPINE

main77213-BZ210iS403..GEN,MMR202205

main77213-BZ470iS403..LHD..R..GEN202306

PHILIPPINE

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-BZ030iS403202205

77241VCLIP, TUBE JOINT

main90044-67244iS403..GEN,MMR202205

main90959-04001iS403..CRI,GCC,THAI202205-202306

PHILIPPINE

77252ETUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)

main77251-BZ350iS403..T2202205

main77251-BZ360iS403..VAN202205

77259GCLIP, FUEL HOSE

main90044-67244iS403..GEN,MMR202205

main90959-04001iS403..CRI,GCC,THAI202205-202306

PHILIPPINE

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77259-BZ030iS403202205

PHILIPPINE

77269AHOSE, FUEL TANK BREATHER

main77269-BZ050iS403..GEN,MMR202205

main77269-BZ060iS403..LHD..R..GEN202205-202305

PHILIPPINE

main77269-BZ410iS403..CRI,GCC,THAI202306

PHILIPPINE

77281ACLAMP, FUEL FILLER PIPE

main90044-60129iS403..CRI,GCC,THAI202205-202212

PHILIPPINE

main96111-30440iS403..GEN,MMR202205

77285DCLAMP, FUEL TUBE, NO.1

main77285-BZ010iS403202205

77285FCLAMP, FUEL TUBE, NO.1

main77285-BZ010iS403202205

77285GCLAMP, FUEL TUBE, NO.1

main23841-B5010iS403202205

77286DCLAMP, FUEL TUBE, NO.2

main77286-B0010iS403202205

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ041iS403202205

77310ACAP ASSY, FUEL TANK

main77300-52030iS403202205

77316GASKET, FUEL TANK CAP

main77316-52040iS403202205

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iS403202205

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ090iS403202205

77644BOLT, FUEL TANK

main90041-20292iS403202205

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119608

main90041-19608

9004120137

main90041-20137

9004A11240

main9004A-11240

9004A11247

main9004A-11247

9004A15055

main9004A-15055

9004A46391

main9004A-46391

9046609001

main90466-09001

39 parts on this diagram · 3 diagrams in section
