SEAT & SEAT TRACK

0001 1FR SEAT(RH) 0002 1FR SEAT(LH) 0003 1FR SEAT(RH) 0004 1FR SEAT(LH) 0005 1FR SEAT(RH) 0006 1FR SEAT(LH) 0007 1FR SEAT(RH) 0008 1FR SEAT(LH) 0009 1FR SEAT(RH) 0010 1FR SEAT(LH) 0011 1RR NO.1 SEAT(RH) 0012 1RR NO.1 SEAT(LH) 0013 1RR NO.2 SEAT(RH) 0014 1RR NO.2 SEAT(LH)

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-BZ120iS403..RHD..T2202205

main71013-BZ130iS403..GCC202205

main71013-BZ170iS403..LHD..T2202205

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-BZM30-B0iS403..T2202205

MID GRAY,TRIM1#

main71071-BZM50iS403..RHD..SP202205-202208

main71071-BZM50-B0iS403..RHD..SP202208

MID GRAY,TRIM1#

main71071-BZM70-B0iS403..GCC202205

GRAY,TRIM1#

main71071-BZP90-B0iS403..LHD..SP..(CRI,GEN,MMR)202205

MID GRAY,TRIM1#

main71071-BZW70-B0iS403..G202205

GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BZN80-B0iS403..GCC202205

GRAY,TRIM1#

main71073-BZS20-B1iS403..SP..(CRI,GEN,MMR)202205

MID GRAY,TRIM1#

main71073-BZS40-B1iS403..T2202205

MID GRAY,TRIM1#

main71073-BZZ80-B1iS403..G202205

GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ500iS403..T2202205

main71501-BZ510iS403..GCC202205

main71501-BZ530iS403..VAN..(CRI,GEN,MMR)202205

7152SEAT BELT

→ Go to FIG 71-52

71521PAD, FRONT SEAT CUSHION SILENCER, A

main58431-BZ040iS403..RHD202205

main58431-BZ060iS403..LHD202205

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main58435-BZ030iS403202205

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ180iS403..VAN..(CRI,GEN,MMR)202205

main71505-BZ350iS403..T2202205

main71505-BZ520iS403..GCC202205

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-BZ110iS403..T2202205

main71610-BZ130iS403..RHD..SP202205

main71610-BZ140iS403..GCC202205

main71610-BZ160iS403..LHD..VAN..(CRI,GEN,MMR)202205

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main9004A-46143iS403..GCC202205

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main9004A-46143iS403..VAN..(CRI,GEN,MMR)202205

71903CATCH SUB-ASSY, SEAT CUSHION, FRONT

main72504-BZ010iS403202205

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-BZ240iS403..RHD..SP202205

main72110-BZ260iS403..RHD..T2202205

main72110-BZ280iS403..LHD..T2202205

main72110-BZ290iS403..GCC202205

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-BZ250iS403..RHD..SP202205

main72130-BZ270iS403..RHD..T2202205

main72130-BZ300iS403..LHD..T2202205

main72130-BZ310iS403..GCC202205

72137CCOVER, SEAT TRACK INNER, RH

main72137-BZ011iS403..LHD..T2202205-202307

72137GCOVER, SEAT TRACK, OUTER RH

main72137-BZ011iS403..LHD..T2202205-202307

72213BKNOB, SEAT TRACK ADJUSTING HANDLE, RH

main72213-BZ010iS403..T2202205

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-BZ030iS403..T2;S403..GCC202205

72551BCOVER, RECLINING HINGE, RH

main72551-BZ030-B0iS403..T2202205

DK.GRAY,TRIM1#

72552BCOVER, RECLINING HINGE, LH

main72551-BZ040-B0iS403..T2202205

DK.GRAY,TRIM1#

72637EHANDLE, REAR SEAT LOCK, RH

main72637-BZ010-B0iS403..SRF,T2202205

DK.GRAY,TRIM1#

78899BOLT, FRONT SEAT

main90041-05547iS403202205

M8,L=23.5

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main58410-BZ270iS403..RHD202205

main58410-BZ350iS403..LHD202205

23518BZ020WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ020

84139B1010

main84139-B1010

9004A10078

main9004A-10078

9004A11199

main9004A-11199

9155180614

main91551-80614

9418560600

main94185-60600

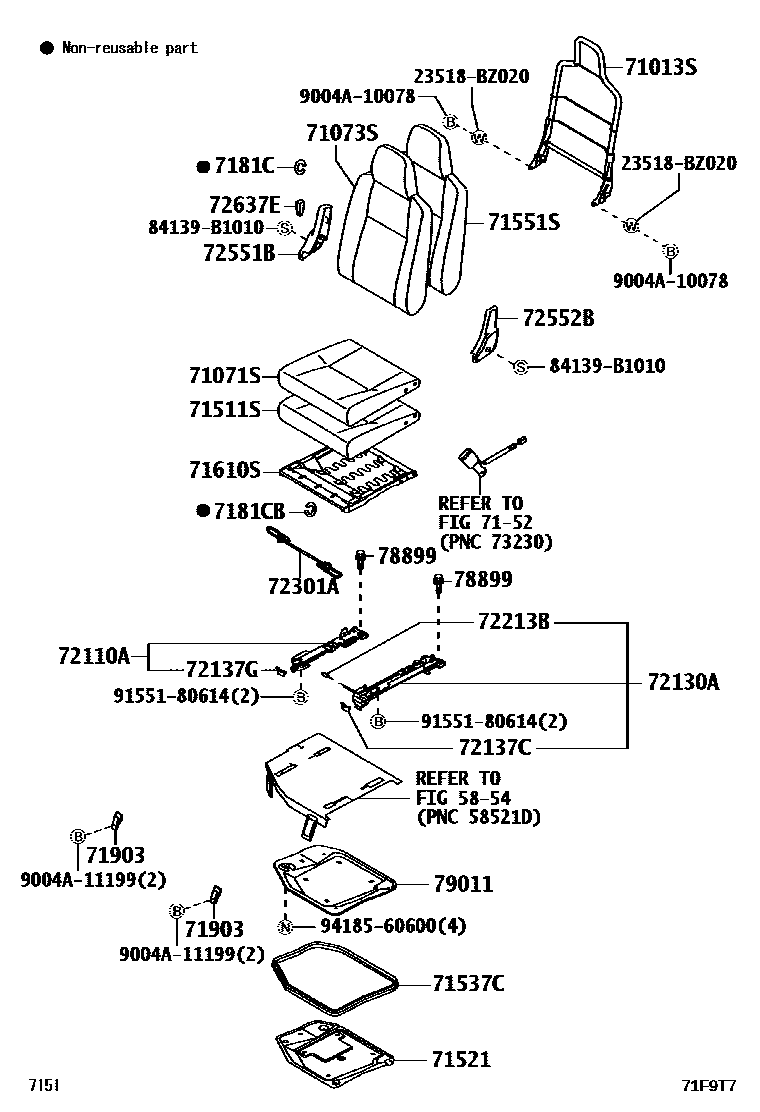

30 parts on this diagram · 14 diagrams in section
