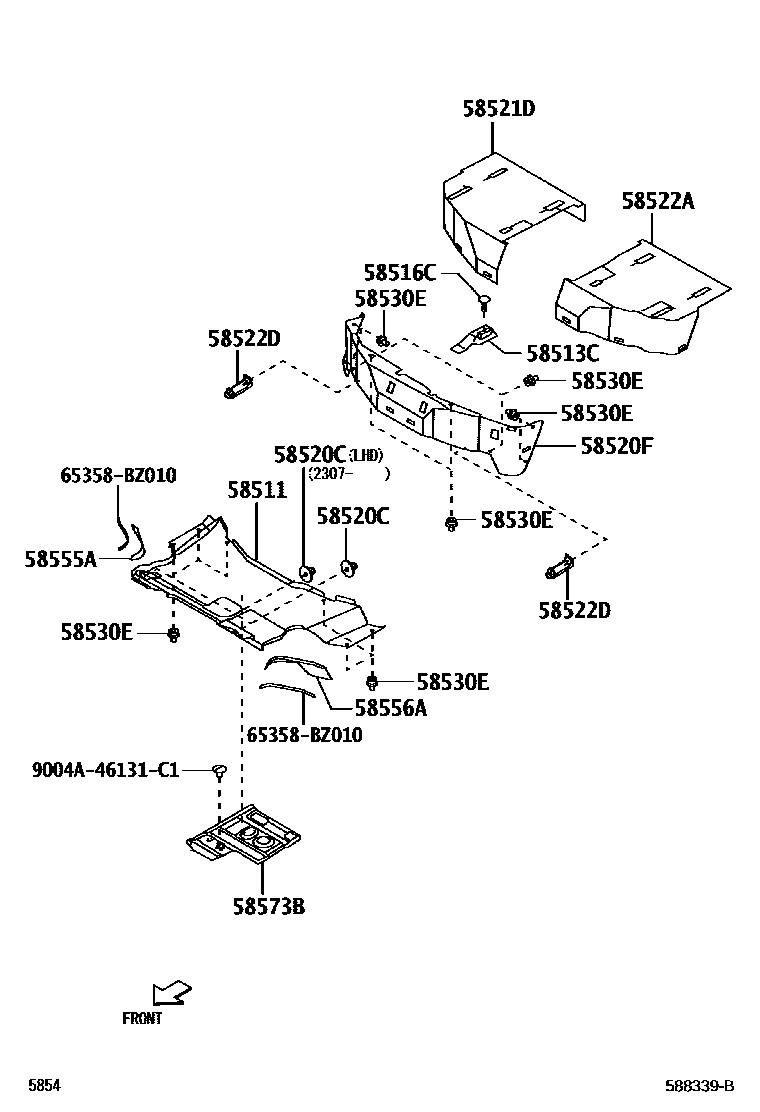

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0004 1 0005 1FLOOR MAT

58511MAT, FLOOR, FRONT

main58510-BZN80-B0iS403..LHD202205

DK.GRAY,TRIM1#

main58510-BZQ00-B1iS403..RHD202205

DK.GRAY,TRIM1#

58513CMAT, FLOOR, FRONT CENTER

main58513-BZ070iS403..R202205-202208

main58513-BZ070-B0iS403..R202208

DK.GRAY,TRIM1#

58516CCLIP(FOR FLOOR MAT)

main90044-68046-C2iS403202205

BLACK

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68234-B2iS403..RHD202205-202307

DK.GRAY,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-BZ090-B1iS403..CRI,GEN,MMR,THAI202205

DK.GRAY,TRIM1#

main58520-BZ120-B0iS403..GCC202205

DK.GRAY,TRIM1#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-BZ380iS403..RHD..SP202205-202208

main58521-BZ380-B0iS403..RHD..SP202208

DK.GRAY,TRIM1#

main58521-BZ520-B0iS403..GCC202205

DK.GRAY,TRIM1#

main58521-BZ540-B0iS403..LHD..VAN..(CRI,GEN,MMR)202205

DK.GRAY,TRIM1#

main58521-BZ560-B0iS403..LHD..T2202205

DK.GRAY,TRIM1#

main58521-BZ640-B0iS403..RHD..T2202205

DK.GRAY,TRIM1#

58522AMAT, ENGINE SERVICE HOLE COVER, LH

main58521-BZ390iS403..RHD..SP202205-202208

main58521-BZ390-B0iS403..RHD..SP202208

DK.GRAY,TRIM1#

main58521-BZ530-B0iS403..GCC202205

DK.GRAY,TRIM1#

main58521-BZ550-B0iS403..LHD..VAN..(CRI,GEN,MMR)202205

DK.GRAY,TRIM1#

main58521-BZ590-B0iS403..LHD..T2202205

DK.GRAY,TRIM1#

main58521-BZ650-B0iS403..RHD..T2202205

DK.GRAY,TRIM1#

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iS403202205

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main9004A-53002iS403202205

58555AMAT, FRONT, RH

main58551-BZ020-B0iS403202205

DK.GRAY,TRIM1#

58556AMAT, FRONT, LH

main58561-BZ040-B0iS403202205

DK.GRAY,TRIM1#

58573BPAD, FRONT FLOOR CENTER

main58573-BZ020iS403..RHD202205

main58573-BZ040iS403..LHD202205

65358BZ010TAPE, FLOOR BOARD COVER

main65358-BZ010

9004A46131C1

main9004A-46131C1

14 parts on this diagram · 4 diagrams in section
