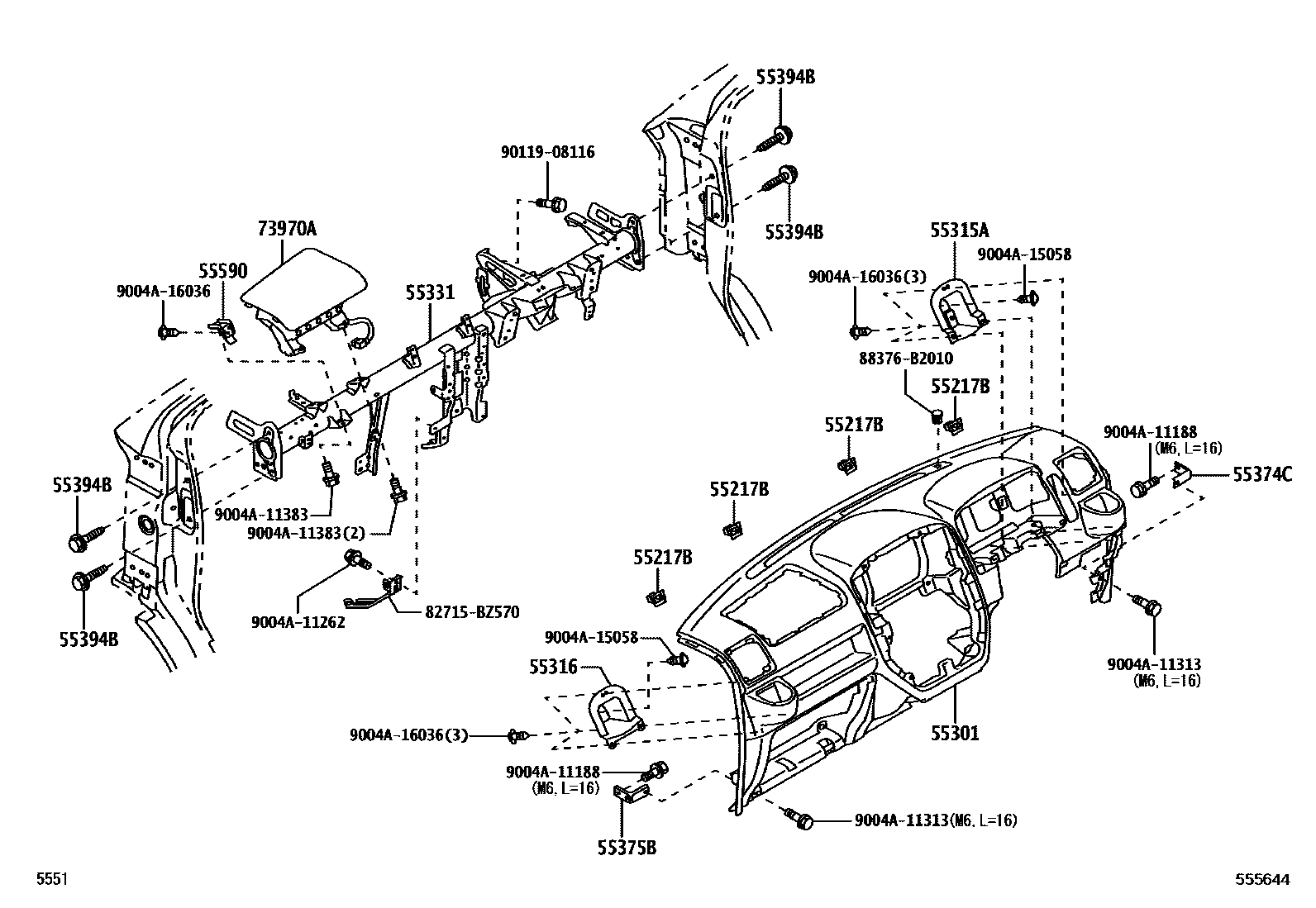

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

55217BRETAINER, DASH PANEL SILENCER

main55217-B2011×4iS403202205

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ830-B1iS403..RHD202205

DK.GRAY,TRIM1#

main55311-BZB10-B0iS403..LHD..(CRI,GEN,MMR)202205

DK.GRAY,TRIM1#

main55311-BZD40-B0iS403..GCC202205

DK.GRAY,TRIM1#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-BZ080iS403..RHD202205

main55315-BZ160iS403..LHD202205

55316SPACER, INSTRUMENT PANEL, NO.2

main55316-BZ010iS403..RHD202205

main55316-BZ020iS403..LHD202205

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZA60iS403..RHD202205

main55305-BZC40iS403..LHD202205

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-BZ130iS403202205

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-BZ060iS403202205

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020×4iS403202205

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-BZ070iS403202205

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ271-B0iS403..RHD202205

DK.GRAY,TRIM1#

main73970-BZ350-B0iS403..LHD202205-202411

DK.GRAY,TRIM1#

main73970-BZ351-B0iS403..LHD202412

DK.GRAY,TRIM1#

82715BZ570BRACKET,WIRING HARNESS CLAMP

main82715-BZ570

88376B2010CAP, BLIND

main88376-B2010

9004A11188

main9004A-11188

9004A11262

main9004A-11262

9004A11313

main9004A-11313

9004A11383

main9004A-11383

9004A15058

main9004A-15058

9004A16036

main9004A-16036

9011908116

main90119-08116

19 parts on this diagram · 9 diagrams in section
