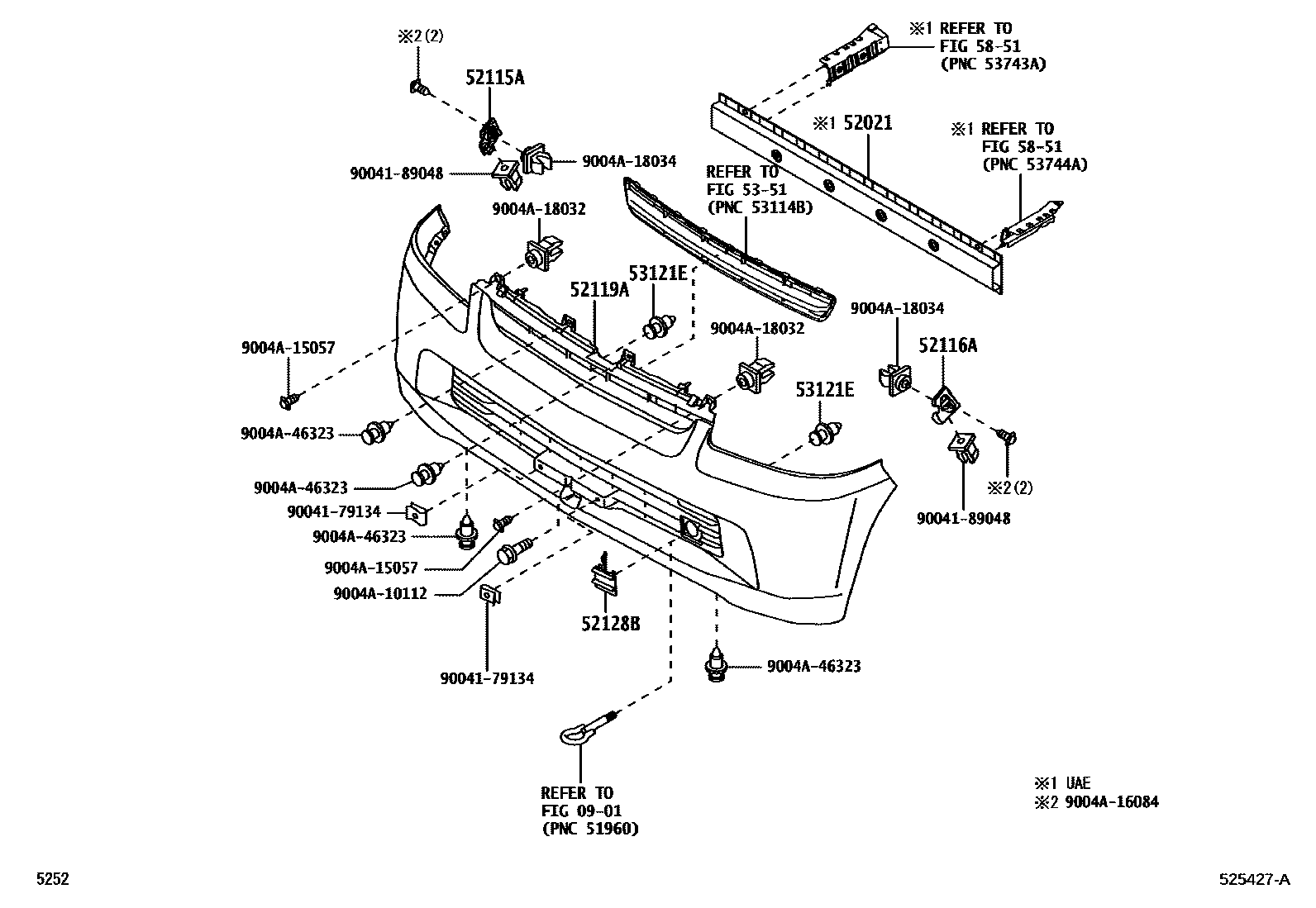

FRONT BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52022-BZ010iS403..GCC202205

UAE

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ100iS403202205

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ090iS403202205

52119ACOVER, FRONT BUMPER

main52119-BZ480iS403202205

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-BZ050iS403202205

53121ECLIP(FOR FRONT BUMPER), NO.1

main9004A-46338×2iS403202205

main62217-B2010×2iS403..GCC202205

UAE

5351RADIATOR GRILLE

→ Go to FIG 53-51

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9004179134

main90041-79134

9004189048

main90041-89048

9004A10112

main9004A-10112

9004A15057

main9004A-15057

9004A16084

main9004A-16084

9004A18032

main9004A-18032

9004A18034

main9004A-18034

9004A46323

main9004A-46323

17 parts on this diagram · 1 diagram in section
