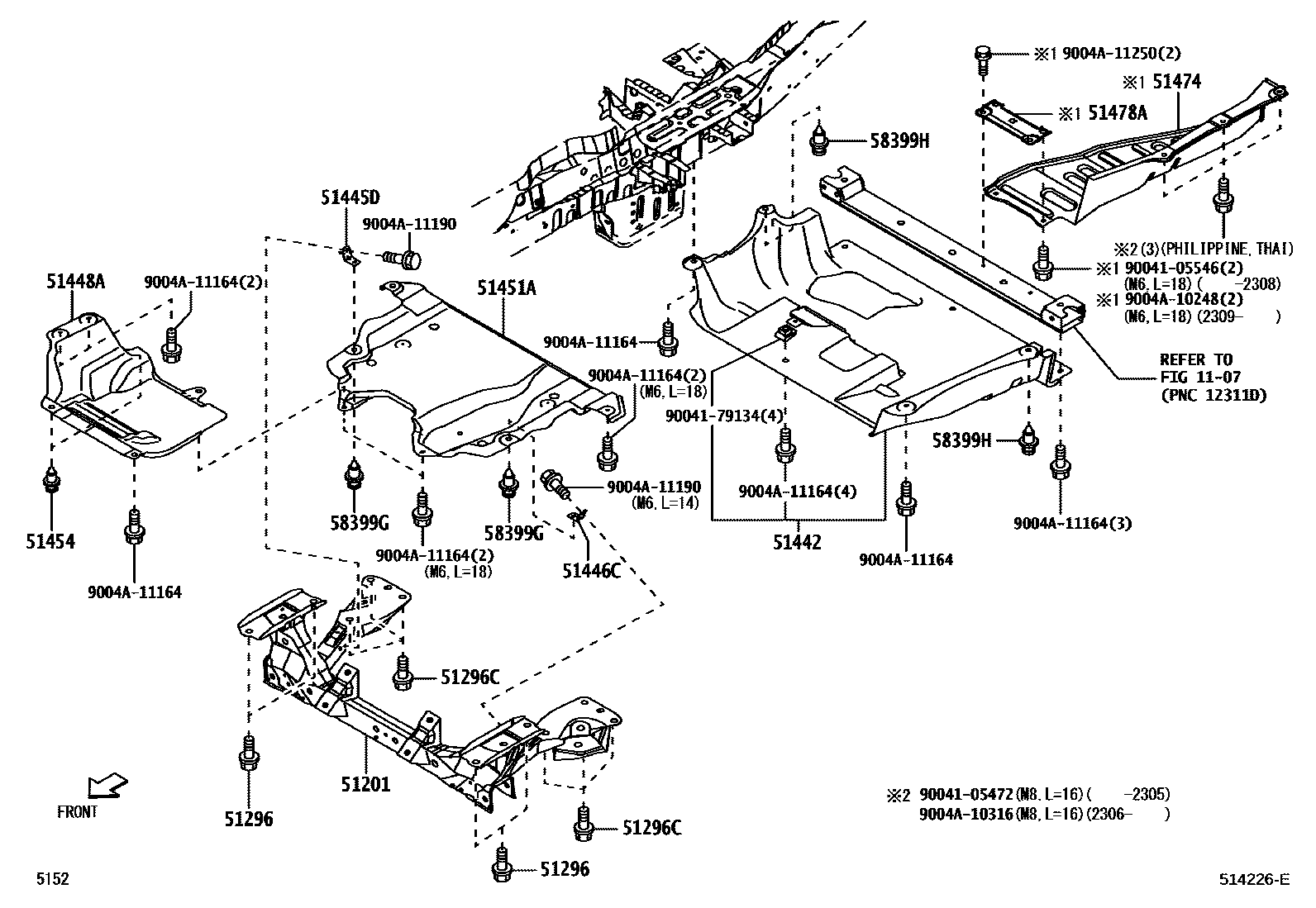

SUSPENSION CROSSMEMBER & UNDER COVER

1107MOUNTING

→ Go to FIG 11-07

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-BZ150iS403202205

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main9004A-10245×4iS403202205

M14,L=30

51296CBOLT, FRONT SUSPENSION MEMBER MOUNTING

main9004A-10136×6iS403202205

51442COVER, ENGINE UNDER, NO.2

main51410-BZ050iS403202205

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-BZ010iS403202205

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-BZ010iS403202205

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-BZ040iS403202205

51451ACOVER, ENGINE UNDER, CENTER

main51451-BZ160iS403202205

51454CLIP

main9004A-46323×2iS403202205

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-BZ080iS403..LHD..T2..GEN; S403..THAI202205

PHILIPPINE

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-BZ040iS403..LHD..T2..GEN; S403..THAI202205

PHILIPPINE

58399GCLIP, NO.1(FOR REAR UNDER COVER)

main9004A-46323×2iS403202205

58399HCLIP, NO.2(FOR REAR UNDER COVER)

main9004A-46323×2iS403202205

9004105472

main90041-05472

9004105546

main90041-05546

9004179134

main90041-79134

9004A10248

main9004A-10248

9004A10316

main9004A-10316

9004A11164

main9004A-11164

9004A11190

main9004A-11190

9004A11250

main9004A-11250

22 parts on this diagram · 1 diagram in section
