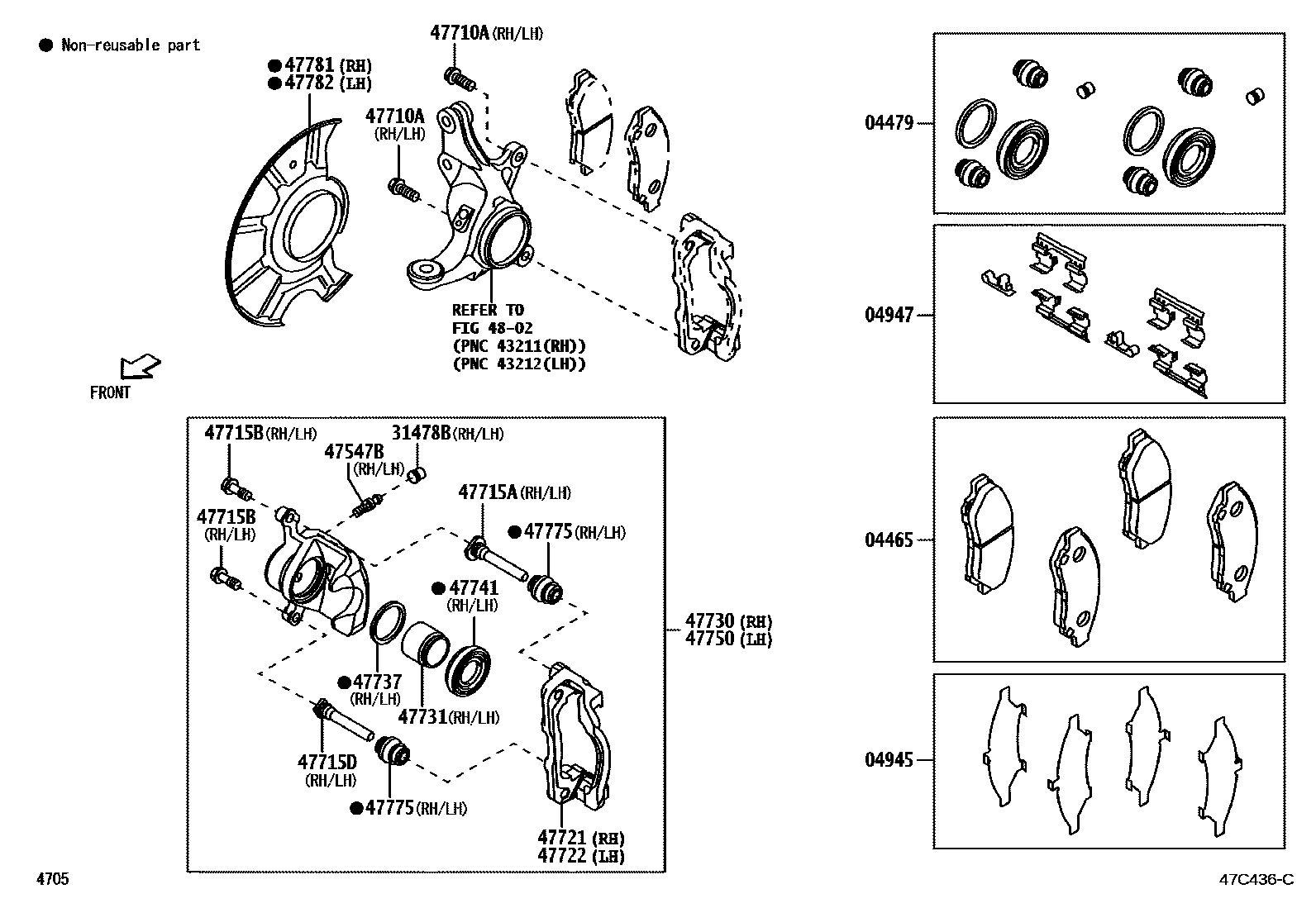

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-BZ280iS403202205

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-BZ131iS403202205

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-BZ040iS403202205

04947FITTING KIT, DISC BRAKE, FRONT

main04947-BZ040iS403202205

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ080×2iS403202205

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ050×2iS403202205

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main9004A-10171×4iS403202205

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-BZ120×2iS403202205

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main9004A-10110×4iS403202205

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-BZ090×2iS403202205

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-BZ060iS403202205

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-BZ060iS403202205

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ060iS403202205

47731PISTON, FRONT DISC BRAKE

main47731-BZ050×2iS403202205

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-BZ050×2iS403202205

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-BZ090×2iS403202205

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ060iS403202205

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-BZ010×4iS403202205

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ200iS403202205

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ200iS403202205

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

21 parts on this diagram · 1 diagram in section
