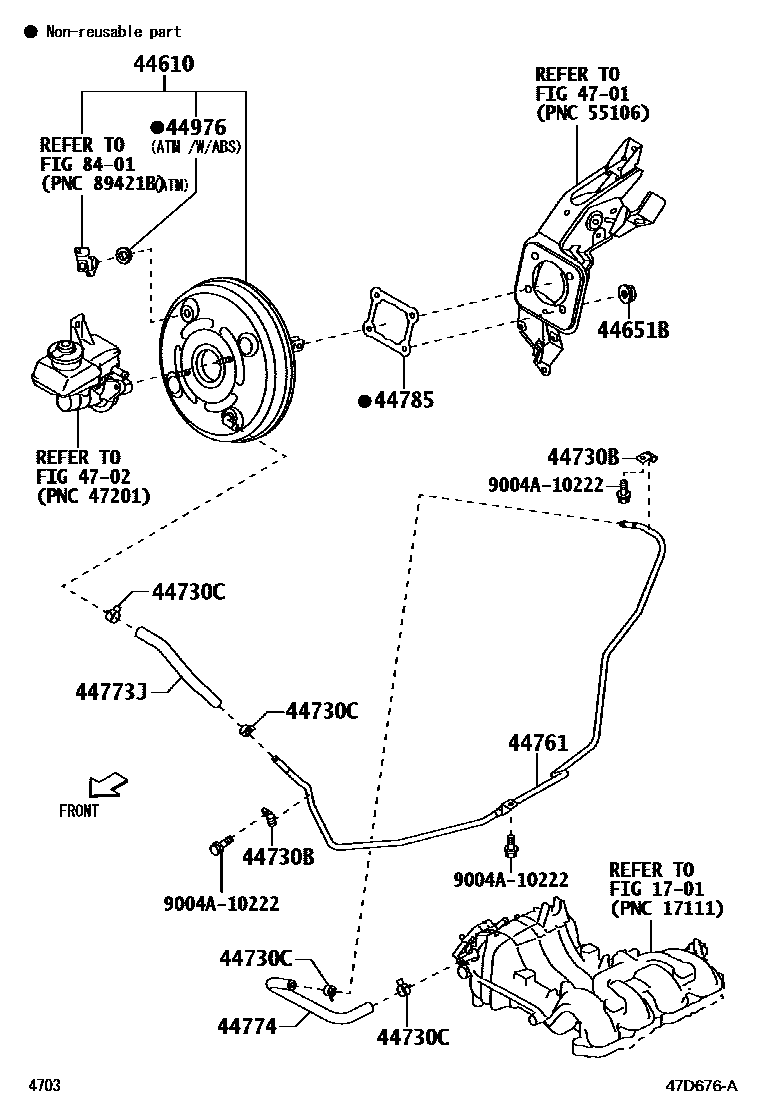

BRAKE BOOSTER & VACUUM TUBE

0001 1RHD 0002 1LHD

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-BZ560iS403..4FC..GEN202205

main44610-BZ810iS403..RHD..5F202205

main44610-BZA80iS403..LHD..4FC202205

main44610-BZA90iS403..LHD..5F202205

44651BNUT, BOOSTER

main90041-79300iS403202205

M8

44730BCLAMP, VACUUM HOSE

main90044-62270iS403..LHD202205

44730CCLIP(FOR VACUUM HOSE)

main9004A-46337iS403202205

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-BZ080iS403..RHD202205

main44761-BZ090iS403..LHD202205

44773JHOSE, VACUUM, NO.3

main44750-BZ210iS403..RHD202205

main44750-BZ520iS403..LHD202205

44774HOSE, UNION TO CONNECTOR TUBE

main44774-BZ080iS403202205

44785GASKET, BRAKE BOOSTER

main47275-BZ010iS403202205

44976SEAL, BOOSTER

main44685-B2010iS403..4FC..GEN202205

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004A10222

main9004A-10222

14 parts on this diagram · 2 diagrams in section
