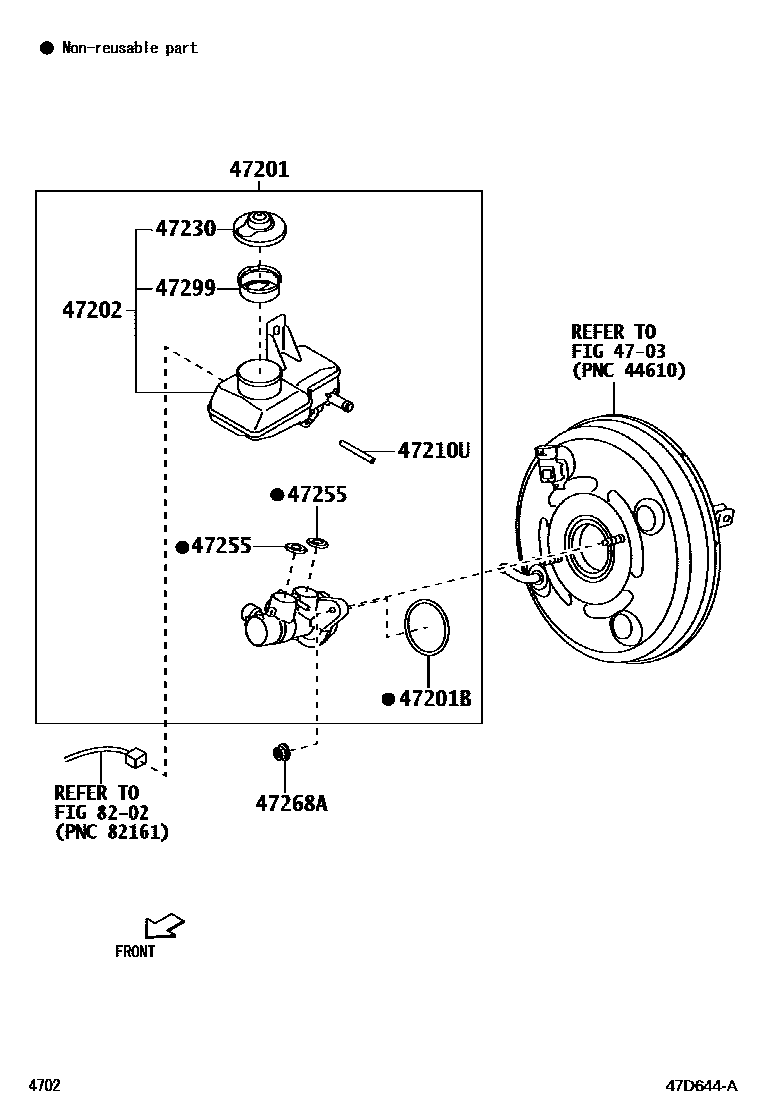

BRAKE MASTER CYLINDER
4703BRAKE BOOSTER & VACUUM TUBE
47201CYLINDER SUB-ASSY, BRAKE MASTER
G - ABS + VSC P/W CNTLOCK&W/O ABS(ANTI-LOCK BRK SYSTM); PHILIPPINE&G - ABS + VSC CNT-LOCK&W/O ABS(ANTI-LOCK BRK SYSTM)
G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47255GROMMET, MASTER CYLINDER RESERVOIR
47268ANUT, BRAKE MASTER CYLINDER
M8
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
8202WIRING & CLAMP
10 parts on this diagram · 1 diagram in section
