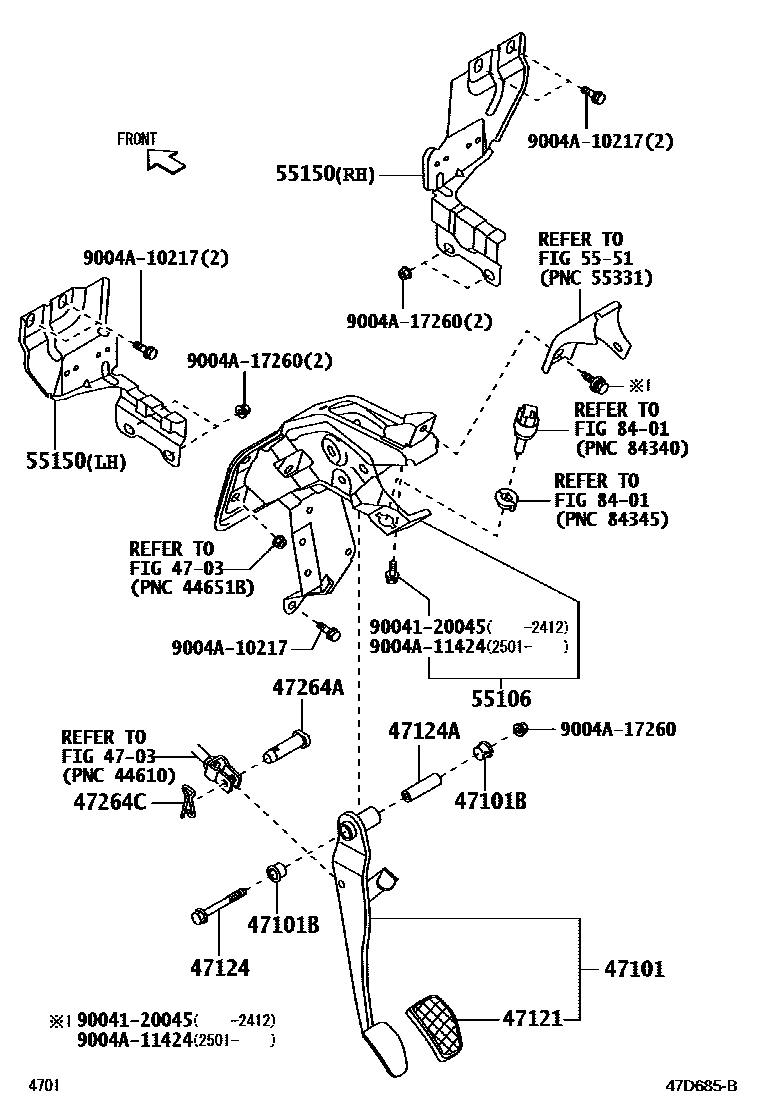

BRAKE PEDAL & BRACKET

0001 1RHD 0002 1LHD 0003 1LHD

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47101-BZ521iS403..RHD202205

main47101-BZ630iS403..LHD202205

47101BBUSH(FOR BRAKE PEDAL)

main9004A-38094iS403202205

47121PAD, BRAKE PEDAL

main31321-BZ140iS403202205

47124SHAFT, BRAKE PEDAL

main9004A-10281iS403202205

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main9004A-56112iS403202205

47264APIN(FOR PUSH ROD)

main90042-40151iS403202205

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS403202205

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-BZ420iS403..RHD202205

main55106-BZ560iS403..LHD202205

55150BRACKET ASSY, PEDAL

main55715-BZ010iS403202205

RH

main55716-BZ010iS403202205

LH

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004120045

main90041-20045

9004A10217

main9004A-10217

9004A11424

main9004A-11424

9004A17260

main9004A-17260

16 parts on this diagram · 3 diagrams in section
