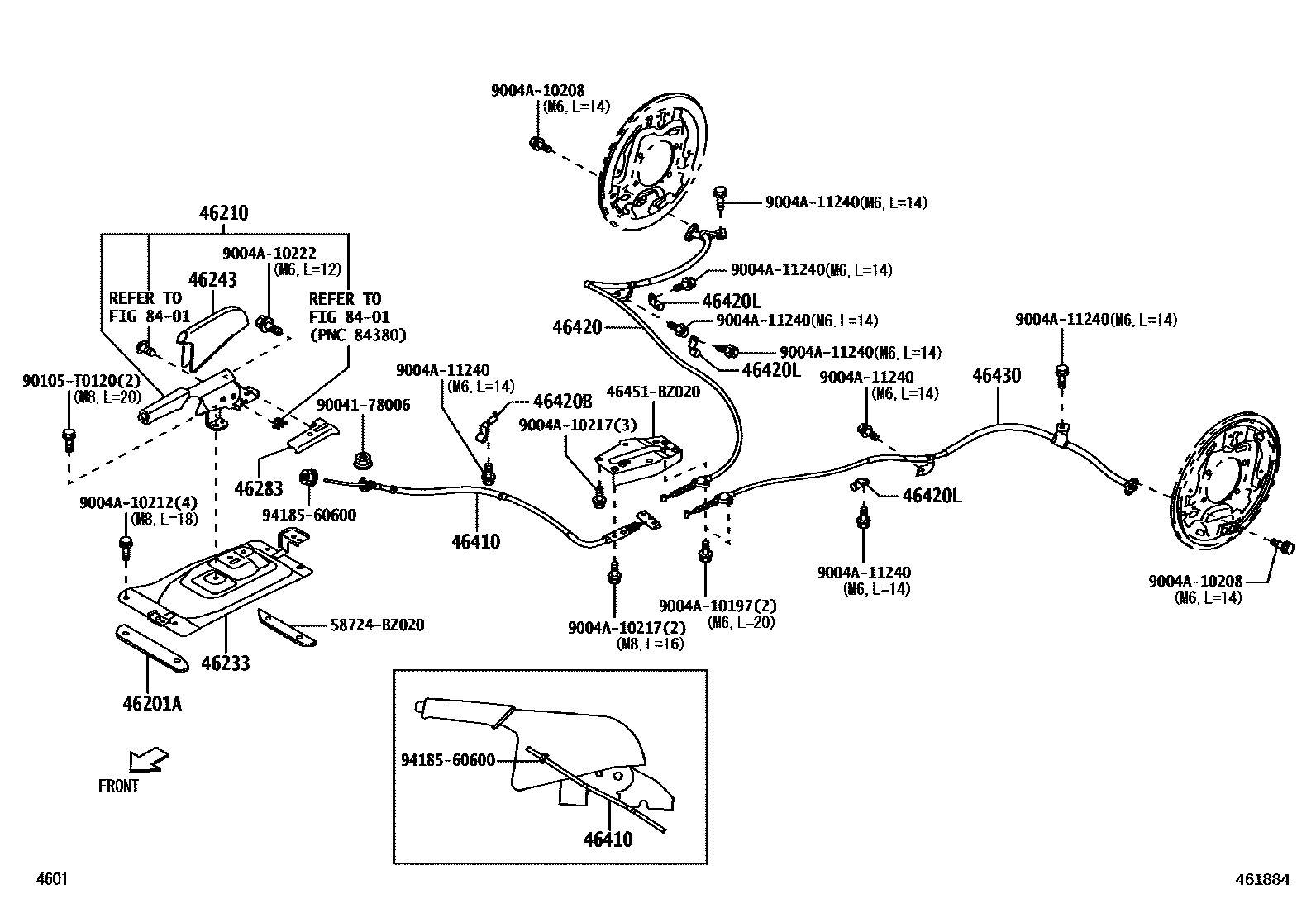

PARKING BRAKE & CABLE

0001 1PIC 0002 1VAN

46201ACUSHION(FOR PARKING BRAKE PEDAL)

main58723-BZ020iS403202205

46210LEVER ASSY, PARKING BRAKE

main46210-BZ121iS403..VAN202205-202208

main46210-BZ121-B0iS403..T2202205

DK.GRAY,TRIM1#

46233SUPPORT, PARKING BRAKE CENTER

main46233-BZ030iS403202205

46243COVER, PARKING BRAKE LEVER

main46243-BZ010iS403..VAN202205-202208

main46243-BZ010-B0iS403..T2202205

DK.GRAY,TRIM1#

46283PROTECTOR, PARKING BRAKE SIGNAL SWITCH

main46283-BZ010iS403202205

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-BZ030iS403..VAN202205

main46410-BZ100iS403..T2202205

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ260iS403..VAN202205

main46420-BZ270iS403..T2202205

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main9004A-46278iS403..VAN202205

main9004A-46340iS403..T2202205

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90044-61755iS403..T2202205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ260iS403..VAN202205

main46430-BZ270iS403..T2202205

8401

46451BZ020BRACKET, CABLE SUPPORT

main46451-BZ020

58724BZ020PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2

main58724-BZ020

9004178006

main90041-78006

9004A10197

main9004A-10197

9004A10208

main9004A-10208

9004A10212

main9004A-10212

9004A10217

main9004A-10217

9004A10222

main9004A-10222

9004A11240

main9004A-11240

90105T0120

main90105-T0120

9418560600

main94185-60600

22 parts on this diagram · 2 diagrams in section
