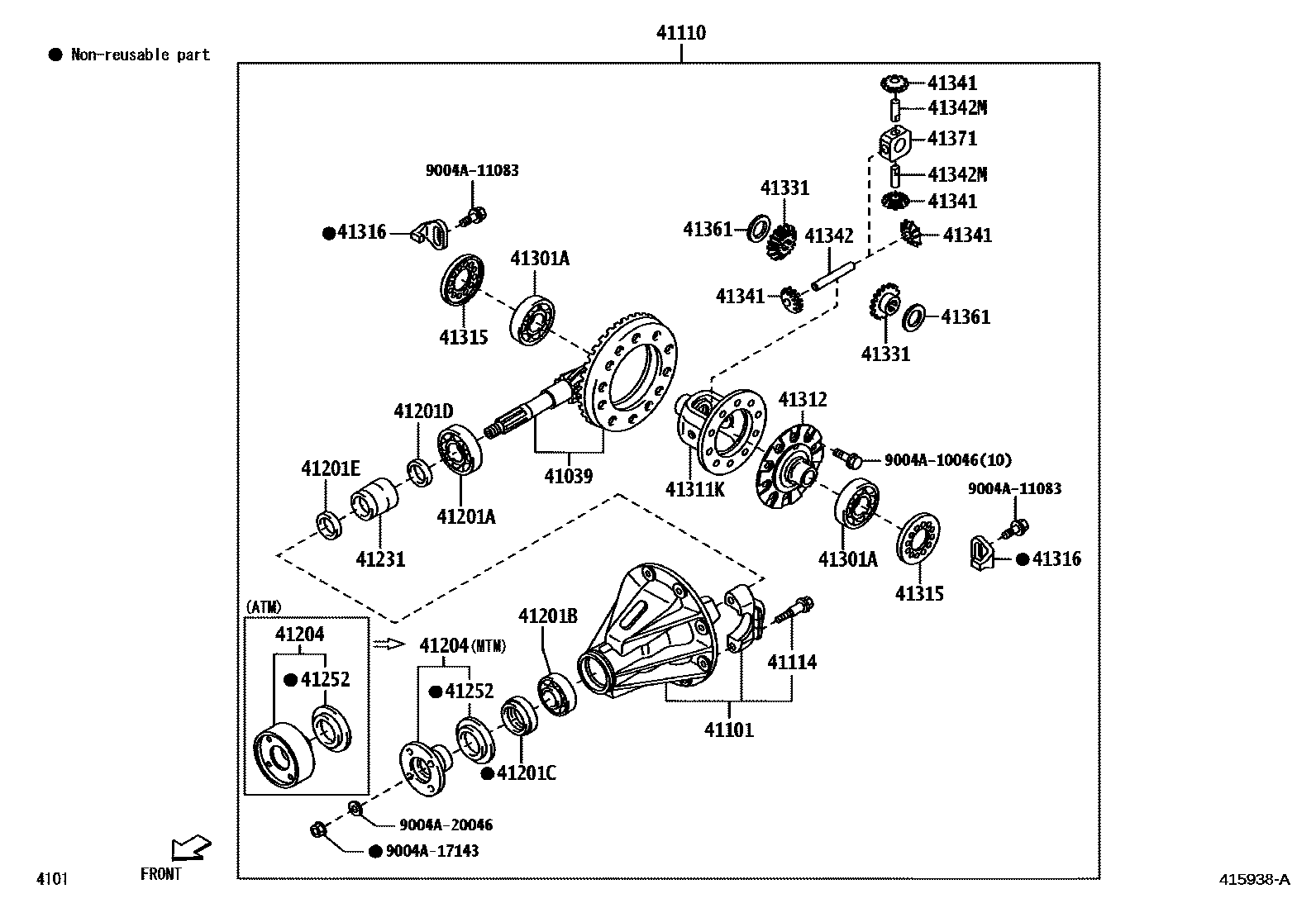

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201ABEARING (FOR REAR DRIVE PINION REAR)
OD=28
41201BBEARING (FOR REAR DRIVE PINION FRONT)
CARRIER SEAL:081
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=0.29
T=0.32
T=0.35
T=0.38
T=0.41
T=0.44
T=0.47
T=0.50
T=0.53
T=0.56
T=0.59
T=0.62
T=0.65
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41311KCASE, REAR DIFFERENTIAL
41312COVER, DIFFERENTIAL CASE
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41342MSHAFT, REAR DIFFERENTIAL PINION, NO.2
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.15
T=1.25
T=1.35
T=1.1
T=1.3
T=1.2
41371SPIDER, REAR DIFFERENTIAL
9004A10046
main9004A-10046
9004A11083
main9004A-11083
9004A17143
main9004A-17143
9004A20046
main9004A-20046
27 parts on this diagram · 2 diagrams in section
