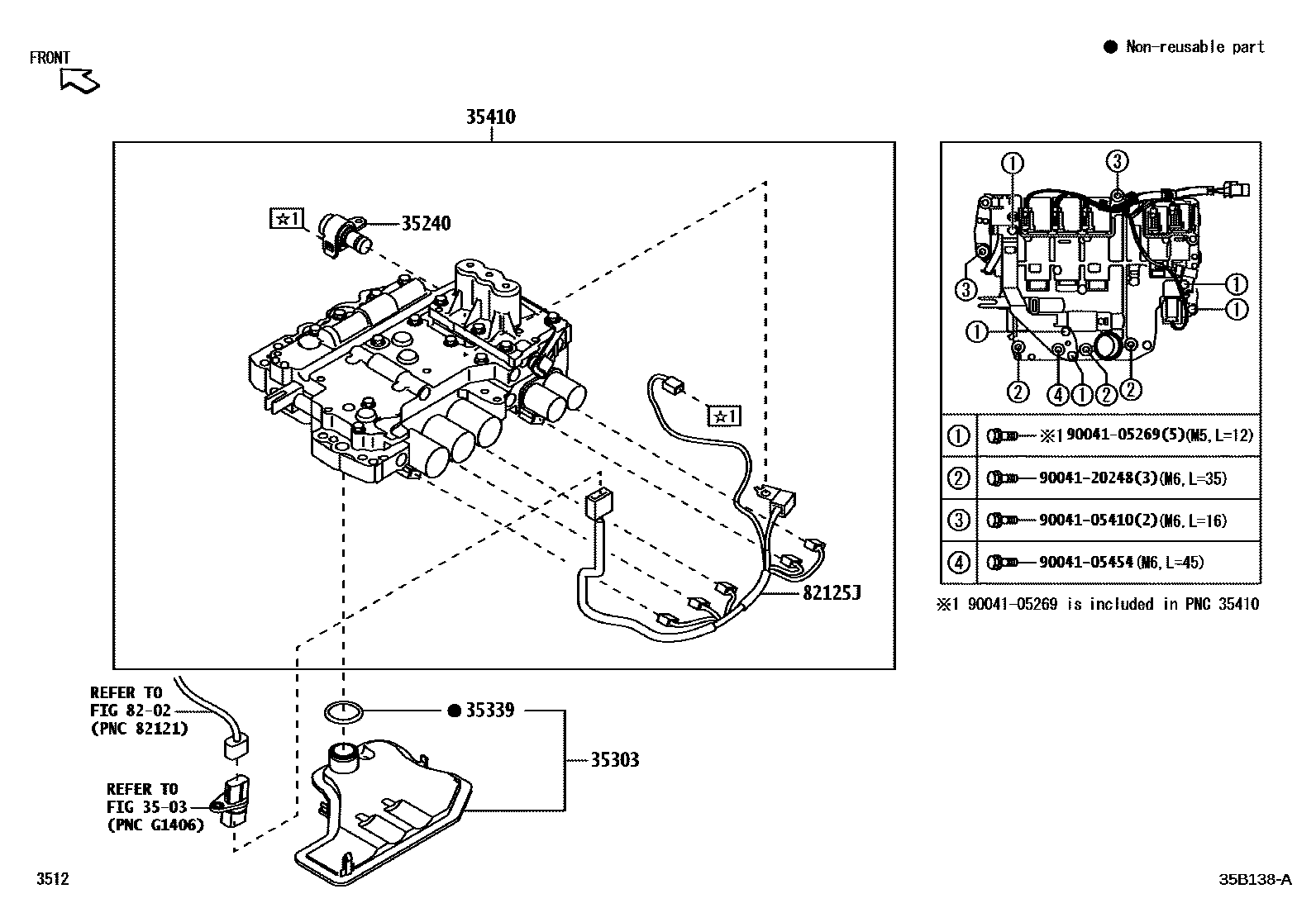

VALVE BODY & OIL STRAINER (ATM)

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-B1020iS403..4FC202205

35303STRAINER SUB-ASSY, OIL

main35303-B1010iS403..4FC202205

35339GASKET, OIL STRAINER

main90043-01364iS403..4FC202205

35410BODY ASSY, TRANSMISSION VALVE

main35410-B1061iS403..4FC202205

8202WIRING & CLAMP

→ Go to FIG 82-02

82125JWIRE, TRANSMISSION

main82125-B1050iS403..4FC202205

9004105269

main90041-05269

9004105410

main90041-05410

9004105454

main90041-05454

9004120248

main90041-20248

11 parts on this diagram · 1 diagram in section
