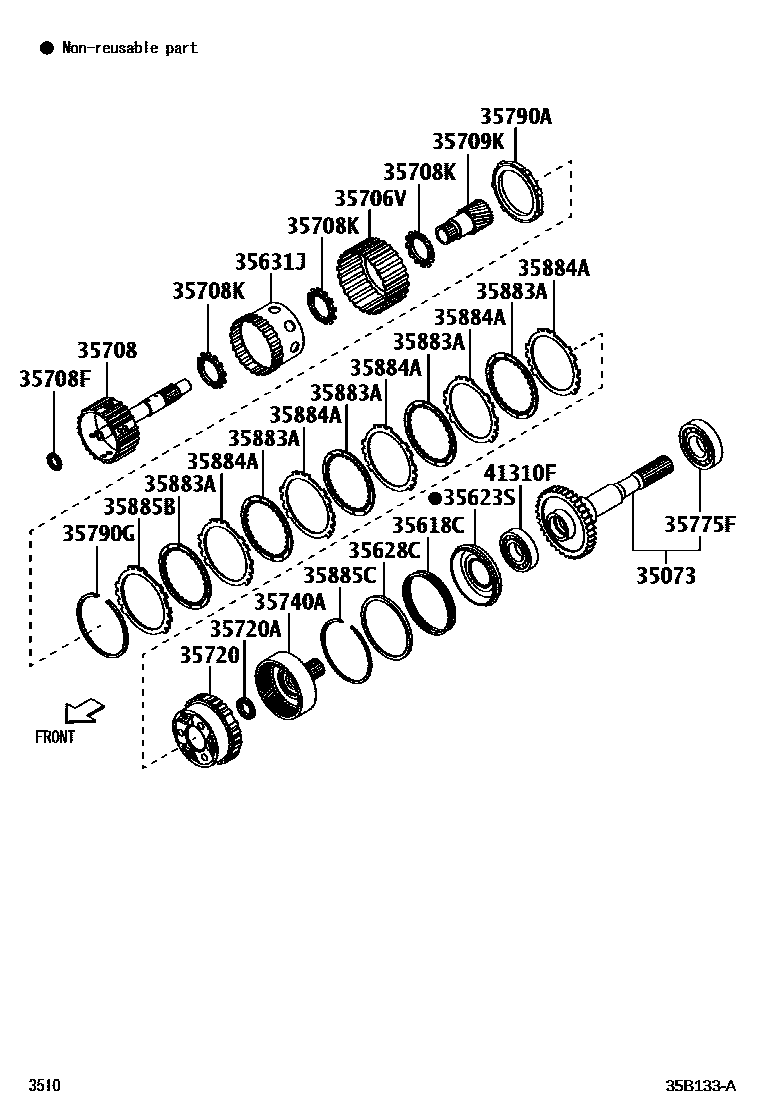

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35073SHAFT SUB-ASSY, OUTPUT

main35073-B9010iS403..4FC202205

35618CRETURN SPRING SUB-ASSY, 1ST & REVERSE

main35618-B1010iS403..4FC202205

35623SPISTON,1ST & REVERSE BRAKE

main35623-B1050iS403..4FC202205

UNIT.NO=LB8S

35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING

main35628-97202iS403..4FC202205

35631JHUB, FORWARD CLUTCH, NO.1

main35631-B1010iS403..4FC202205

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-97203iS403..4FC202205

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-97203iS403..4FC202205

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90043-74051iS403..4FC202205

35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)

main90043-74047×3iS403..4FC202205

35709KGEAR SUB-ASSY, REAR PLANETARY

main35709-97204iS403..4FC202205

35720GEAR ASSY, FRONT PLANETARY

main35720-97211iS403..4FC202205

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90043-74043iS403..4FC202205

35740AGEAR ASSY,FRONT PLANETARY RING

main35740-97201iS403..4FC202205

35775FBEARING, RADIAL BOLL

main90043-63277iS403..4FC202205

35790ACLUTCH ASSY, 1 WAY

main35790-B1050iS403..4FC202205

35790GHOLE SNAP RING (FOR 1WAY CLUTCH)

main90045-21174iS403..4FC202205

35883ADISC, BRAKE

main35883-B5010×5iS403..4FC202205

35884APLATE,BRAKE

main35884-B1010×5iS403..4FC202205

35885BFLANGE, BRAKE

main35885-B1010iS403..4FC202205

T=4.0

main35885-B1020iS403..4FC202205

T=4.2

main35885-B1030iS403..4FC202205

T=4.4

main35885-B1040iS403..4FC202205

T=4.6

main35885-B1050iS403..4FC202205

T=4.8

main35885-B1060iS403..4FC202205

T=5.0

35885CRING,HOLE SNAP (FOR CLUTCH PLATE)

main90045-21194iS403..4FC202205

41310FBALL BEARING(FOR DIFFERENTIAL CASE REAR)

main90043-63273iS403..4FC202205

21 parts on this diagram · 1 diagram in section
