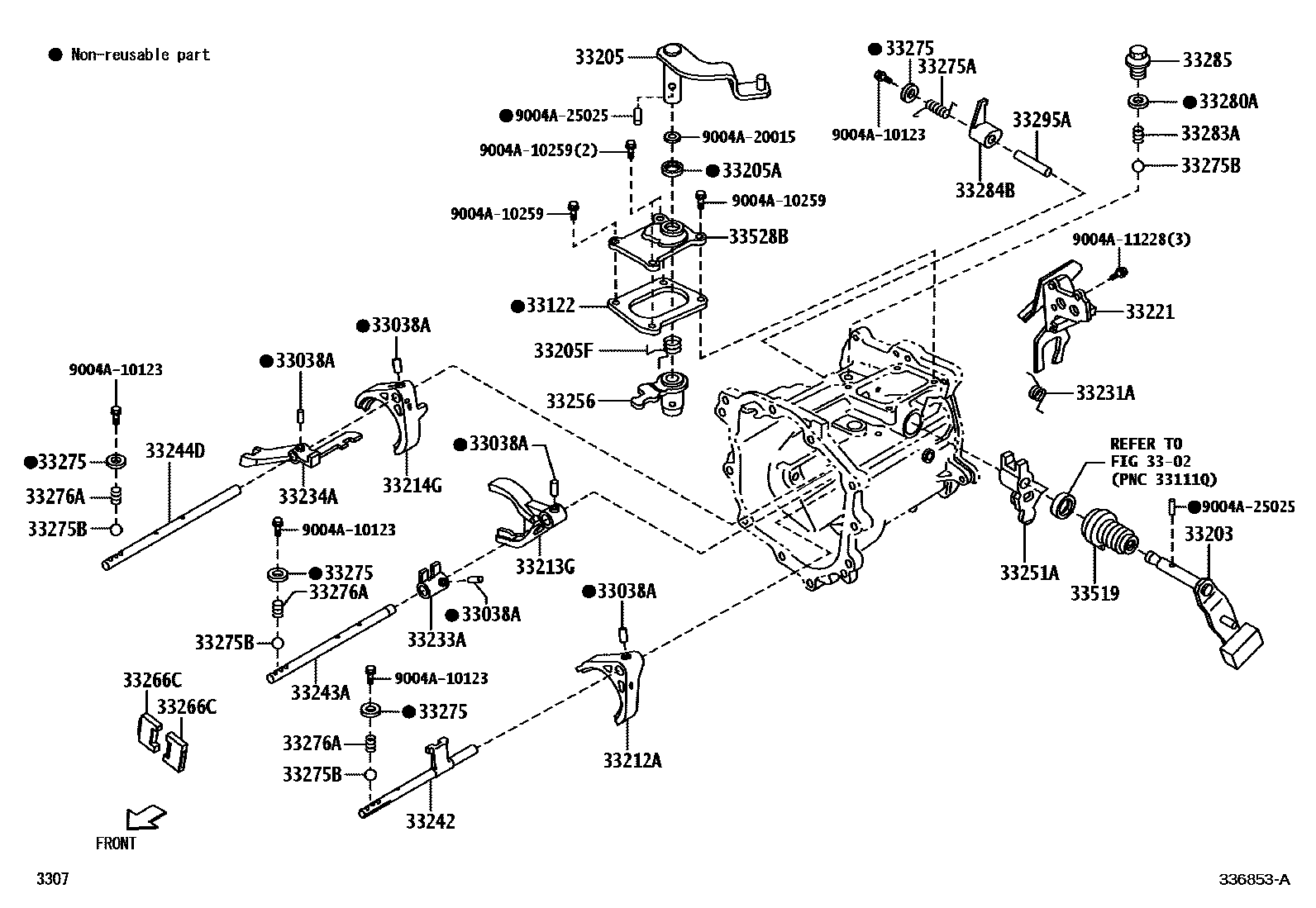

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33038APIN, SLOTTED SPRING
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33212AFORK, GEAR SHIFT, NO.1
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33256LEVER, SELECT INNER
33266CPLATE, SHIFT INTERLOCK
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
0D=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=22.3
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33280AGASKET, REVERSE RESTRICT PIN
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33284BPIN, REVERSE RESTRICT, NO.2
33285HOLDER, REVERSE RESTRICT PIN
33295ASHAFT, REVERSE RESTRICT
33519BOOT, CONTROL SHAFT DUST
33528BCOVER, CONTROL SHAFT
9004A10123
main9004A-10123
9004A10259
main9004A-10259
9004A11228
main9004A-11228
9004A20015
main9004A-20015
9004A25025
main9004A-25025
36 parts on this diagram · 1 diagram in section
