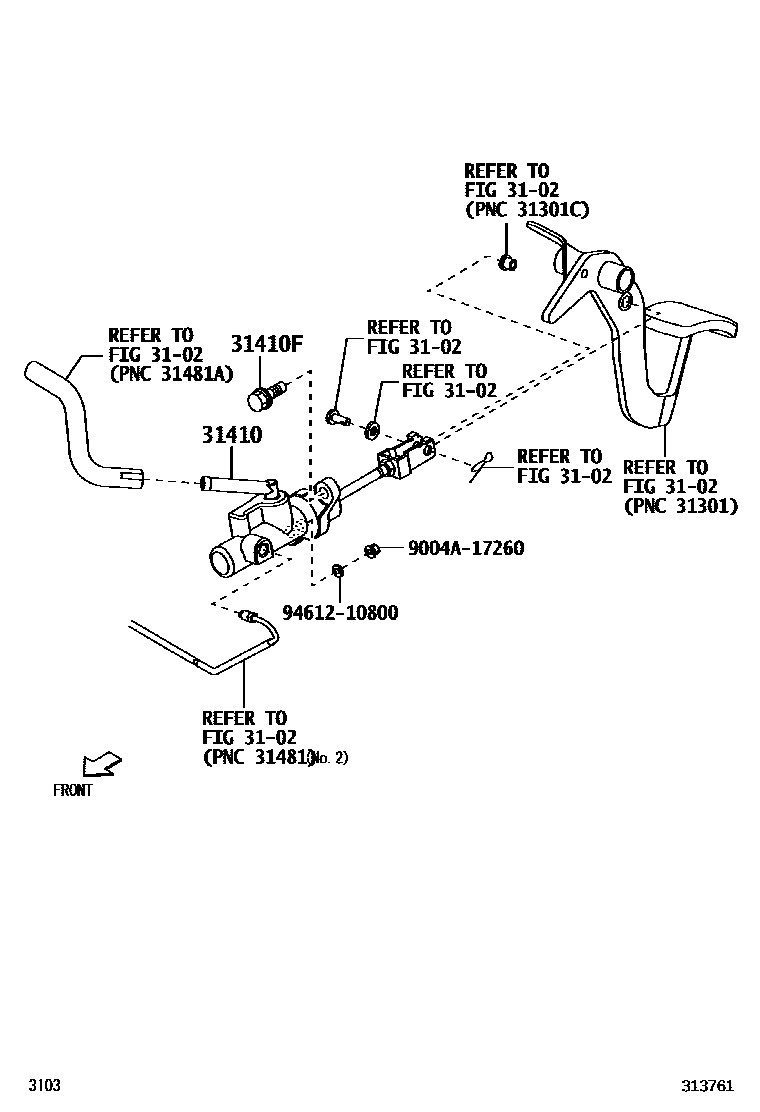

CLUTCH MASTER CYLINDER

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31410CYLINDER ASSY, CLUTCH MASTER

main31420-BZ030iS403..RHD..5F202205

main31420-BZ060iS403..LHD..5F202205

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main91551-80818iS403..5F202205

M8,L=18

9004A17260

main9004A-17260

9461210800

main94612-10800

5 parts on this diagram · 1 diagram in section
