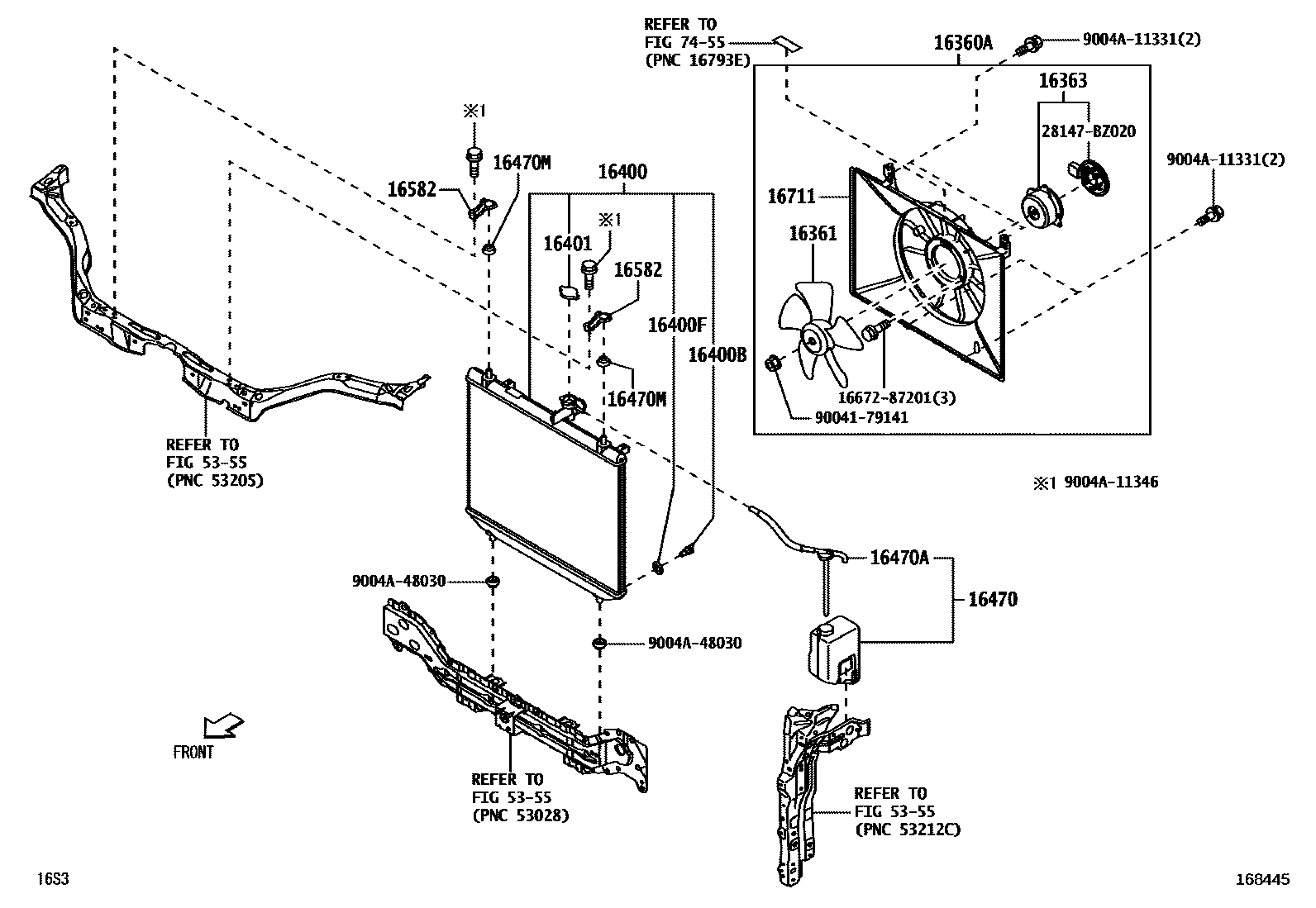

RADIATOR & WATER OUTLET

0001 1RADIATOR(80W) 0002 1RADIATOR(160W) 0003 1RADIATOR HOSE 0004 1WATER BY-PASS PIPE 0005 1WATER BY-PASS PIPE

16360AFAN ASSY, W/MOTOR

main16360-BZ210i2NRVE..S403..CRI,GEN,MMR,THAI202205

main16360-BZ440i2NRVE..S403..GCC202205

16361FAN

main16361-BZ090i2NRVE..S403..CRI,GEN,MMR,THAI202205

main16361-BZ170i2NRVE..S403..GCC202205

16363MOTOR, COOLING FAN

main16363-BZ100i2NRVE..S403..CRI,GEN,MMR,THAI202205

main16363-BZ180i2NRVE..S403..GCC202205

16400RADIATOR ASSY

main16400-BZ870i2NRVE..S403..CRI,GEN,MMR,THAI202205

main16400-BZB60i2NRVE..S403..GCC202205

16400BPLUG, RADIATOR DRAIN COCK

main23322-87101i2NRVE..S403202205

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201i2NRVE..S403202205

16401CAP SUB-ASSY, RADIATOR

main16401-BZ180i2NRVE..S403202205

16470TANK ASSY, RADIATOR RESERVE

main16470-BZ161i2NRVE..S403202205

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16503-BZ101i2NRVE..S403202205

16470MGROMMET

main9004A-48017×2i2NRVE..S403202205

16582BRACKET, RADIATOR, NO.1

main16582-BZ060×2i2NRVE..S403202205

16711SHROUD, FAN

main16711-BZ050i2NRVE..S403..CRI,GEN,MMR,THAI202205

main16711-BZ200i2NRVE..S403..GCC202205

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

7455CAUTION PLATE

→ Go to FIG 74-55

1667287201

main16672-87201

28147BZ020

main28147-BZ020

9004179141

main90041-79141

9004A11331

main9004A-11331

9004A11346

main9004A-11346

9004A48030

main9004A-48030

20 parts on this diagram · 5 diagrams in section
