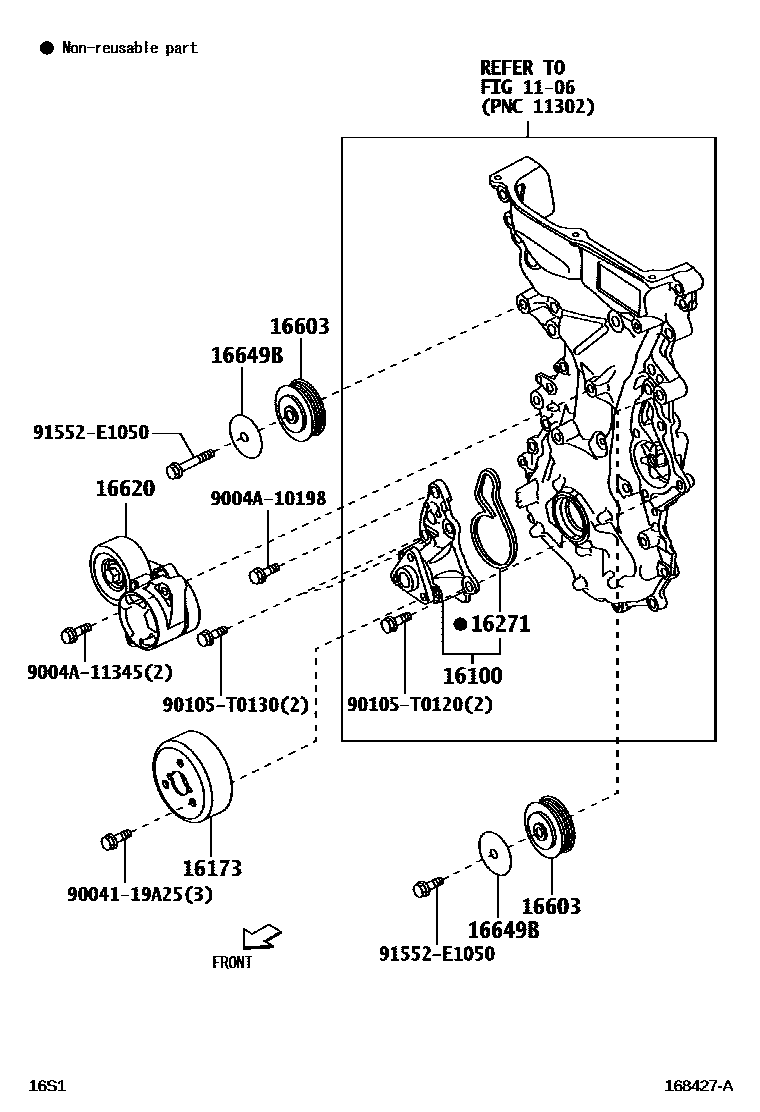

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-B9421i2NRVE..S403202205

16173PULLEY, WATER PUMP

main16173-BZ080i2NRVE..S403202205

16271GASKET, WATER PUMP

main16271-BZ060i2NRVE..S403202205

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-B0030×2i2NRVE..S403202205

16620TENSIONER ASSY, V-RIBBED BELT

main16620-BZ010i2NRVE..S403202205

16649BPLATE, IDLER PULLEY COVER

main16649-BZ050×2i2NRVE..S403202205

9004119A25

main90041-19A25

9004A10198

main9004A-10198

9004A11345

main9004A-11345

90105T0120

main90105-T0120

90105T0130

main90105-T0130

91552E1050

main91552-E1050

13 parts on this diagram · 1 diagram in section
