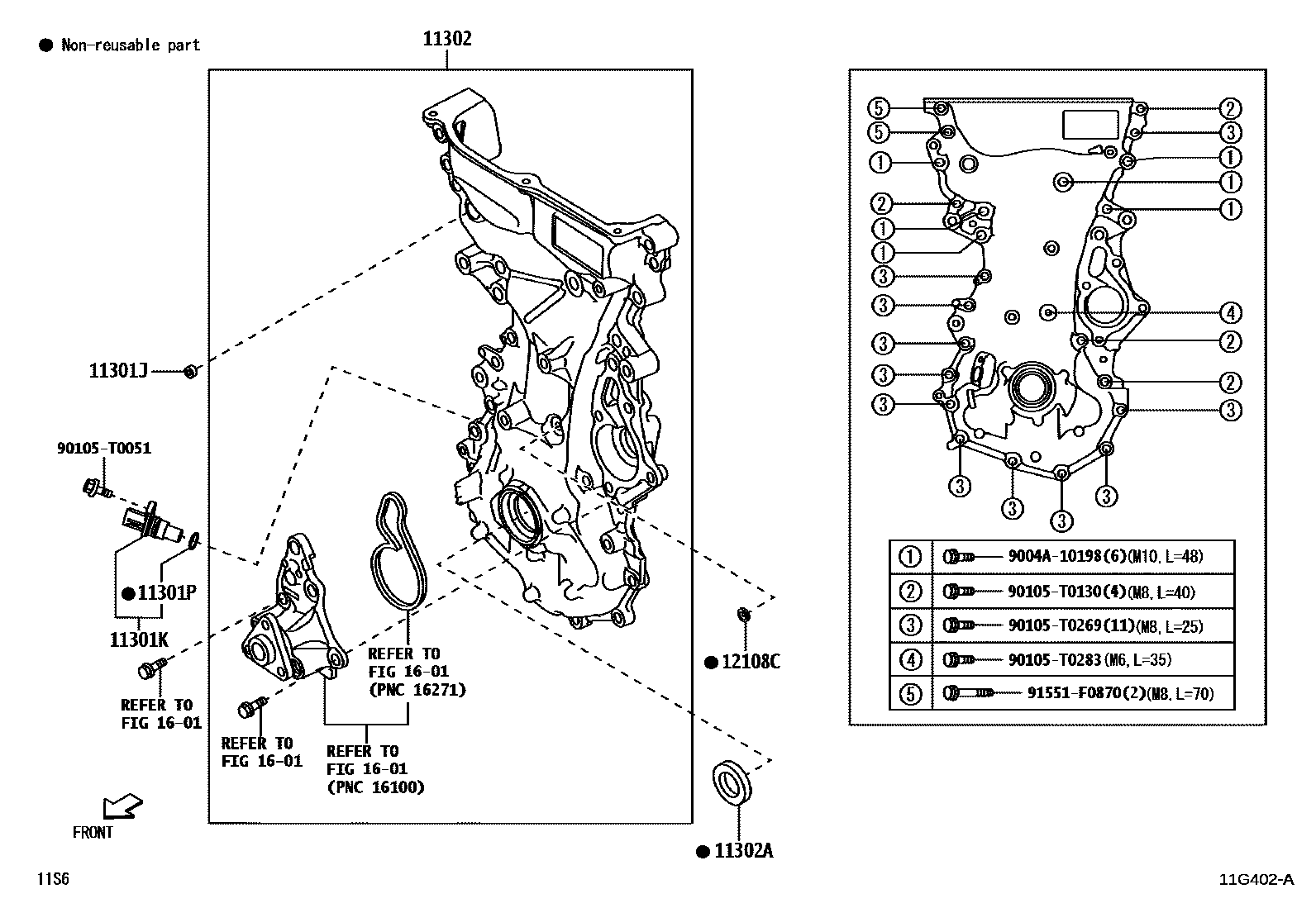

TIMING GEAR COVER & REAR END PLATE

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90043-44022i2NRVE..S403202205

11301KSENSOR, CRANK POSITION

main90919-T5001i2NRVE..S403202205

11301PO RING, CRANK POSITION SENSOR

main9004A-30059i2NRVE..S403202205

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-BZ120i2NRVE..S403202205

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-T0076i2NRVE..S403202205

12108CGASKET

main16258-0Y010i2NRVE..S403202205

1601WATER PUMP

→ Go to FIG 16-01

9004A10198

main9004A-10198

90105T0051

main90105-T0051

90105T0130

main90105-T0130

90105T0269

main90105-T0269

90105T0283

main90105-T0283

91551F0870

main91551-F0870

13 parts on this diagram · 1 diagram in section
