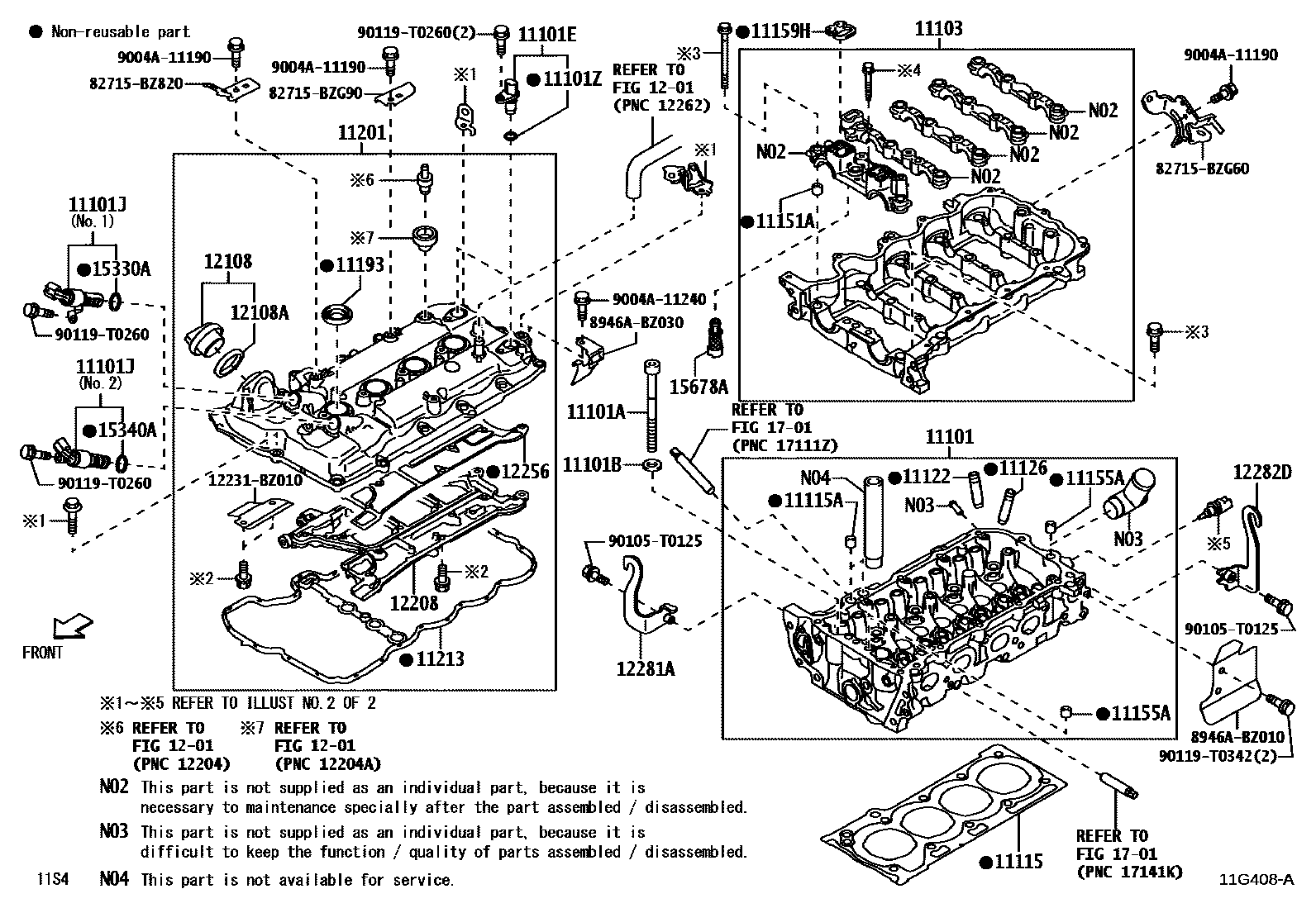

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.2
NO.1
NO.1
NO.2
11101ZO RING, CAM POSITION SENSOR
11103HOUSING SUB-ASSY, CAMSHAFT
11115GASKET, CYLINDER HEAD
11115APIN, RING
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12208PLATE SUB-ASSY, VENTILATION BAFFLE
12256GASKET, VENTILATION BAFFLE
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1701MANIFOLD
12231BZ010
main12231-BZ010
82715BZ820BRACKET,WIRING HARNESS CLAMP
main82715-BZ820
82715BZG60BRACKET,WIRING HARNESS CLAMP
main82715-BZG60
82715BZG90BRACKET,WIRING HARNESS CLAMP
main82715-BZG90
8946ABZ010BRACKET, EXHAUST SENSOR CLAMP
main8946A-BZ010
8946ABZ030BRACKET, EXHAUST SENSOR CLAMP
main8946A-BZ030
9004A11190
main9004A-11190
9004A11240
main9004A-11240
90105T0125
main90105-T0125
90119T0260
main90119-T0260
90119T0342
main90119-T0342
39 parts on this diagram · 2 diagrams in section
