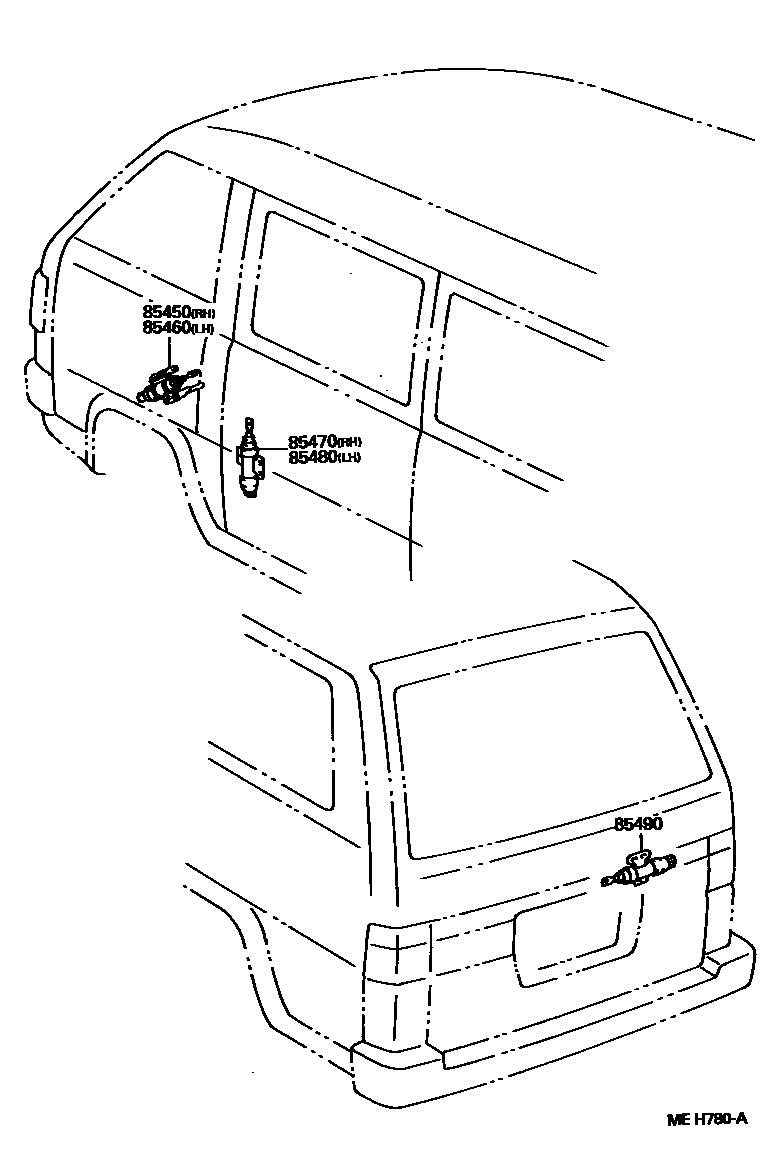

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-95704iKM30199304-199307

main85450-95705iKM30199307-199804

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85460-95700iKM30199304-199307

main85460-95701iKM30199307-199804

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85470-95700iKM30199304-199804

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85480-95702iYM35..GEN;CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199804

85490SOLENOID ASSY, DOOR CONTROL BACK

main85490-95702iYM35..GEN;CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199804

5 parts on this diagram · 1 diagram in section
