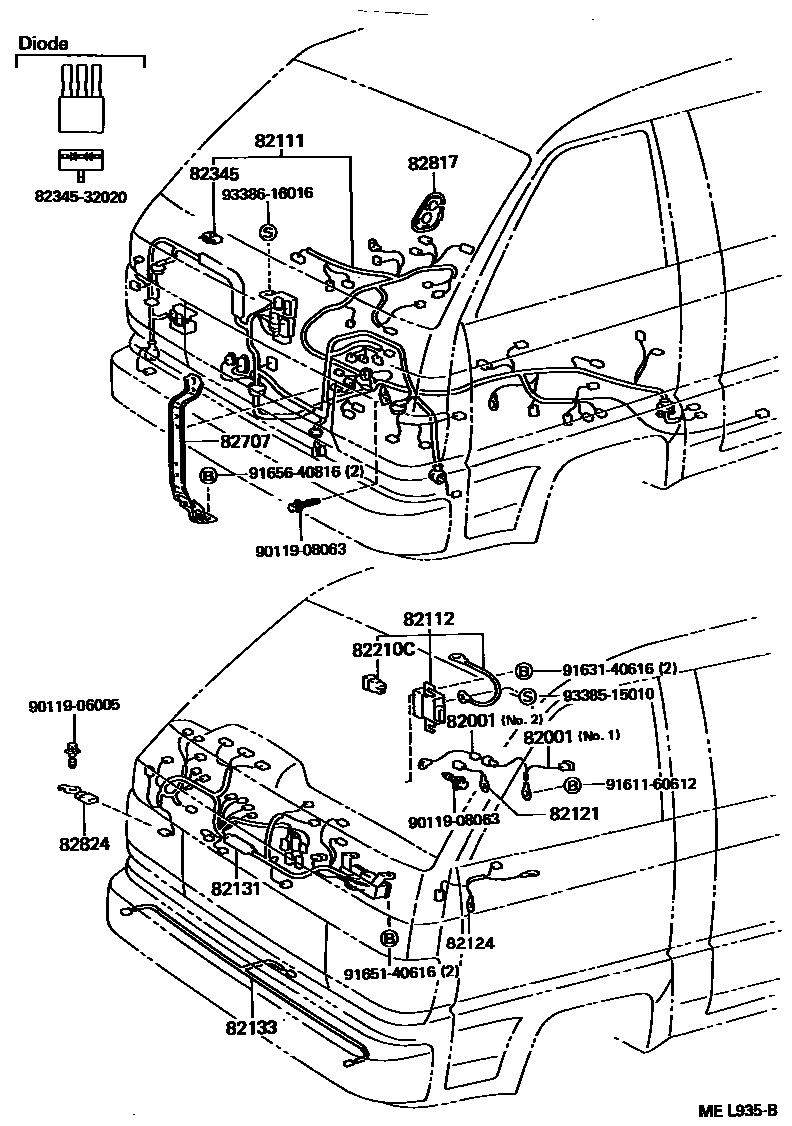

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.3
NO.4
NO.2; NO.3
NO.2
NO.1
NO.4
NO.2
NO.1
82111WIRE, ENGINE ROOM MAIN
82112WIRE, ENGINE ROOM, NO.2
82121WIRE, ENGINE
82124WIRE, ENGINE, NO.4
MALAYSIA FOR CKD OR W(*RWD) OR W(AIR CONDITIONER); W(*RWD) OR W(AIR CONDITIONER)
82131WIRE, COWL
82133WIRE, COWL, NO.3
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
50A,TERM.:MALE,RED
80A,TERM.:MALE,BLK
82345DIODE
82707SUPPORT SUB-ASSY, WIRING HARNESS
82817PROTECTOR, WIRING HARNESS, NO.1
82824CONNECTOR, WIRING HARNESS
8234532020DIODE
main82345-32020
9011906005
main90119-06005
9011908063
main90119-08063
9161160612
main91611-60612
9163140616
main91631-40616
9165140616
main91651-40616
9165640816
main91656-40816
9338515010
main93385-15010
9338616016
main93386-16016
21 parts on this diagram · 8 diagrams in section
