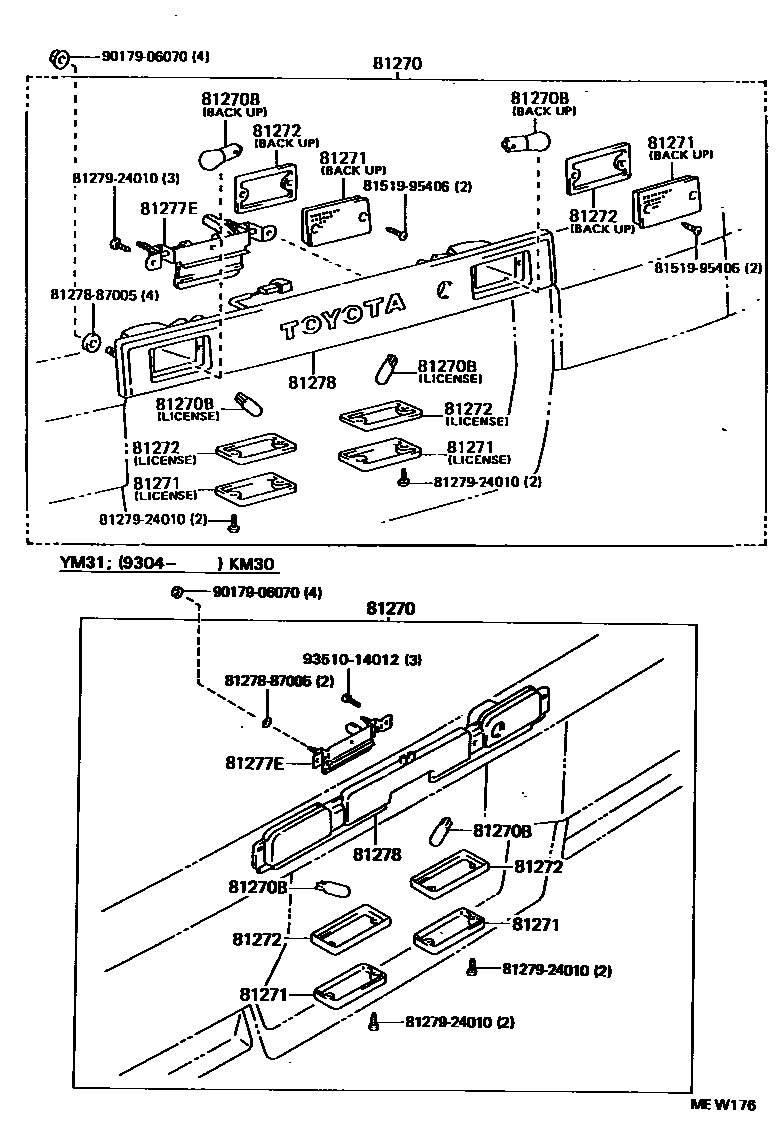

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-95712iKM30,YM31199304-199804

main81270-95713iCM36,KM3#,YM30,35198808-199304

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11210×2iCM36,KM3#,YM30,35198808-199304

12V 21W,BACK UP

main99132-12050×2iCM36,KM3#,YM30,35; YM31198808-199304

12V 5W; 12V 5W,LICENSE

81271LENS, LICENSE PLATE LAMP

main81271-95709×2iCM36,KM36,YM35; KM30,YM31199304-199804

LICENSE

main81277-95709×2iCM36,KM3#,YM30,35198808-199304

BACK UP

81272GASKET, LICENSE PLATE LAMP LENS

main81272-95709×2iCM36,KM3#,YM30,35; YM31198808-199304

LICENSE

main81276-95709×2iCM36,KM3#,YM30,35198808-199304

BACK UP

81277EHANDLE, LICENSE PLATE LAMP

main81278-95709iCM36,KM3#,YM3#198808-199804

81278COVER, LICENSE PLATE LAMP

main81273-95712iKM30,YM31199304-199804

main81273-95713iCM36,KM3#,YM30,35198808-199304

8127887005COVER, LICENSE PLATE LAMP

main81278-87005

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

8151995406BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-95406

9017906070

main90179-06070

9351014012

main93510-14012

11 parts on this diagram · 1 diagram in section
