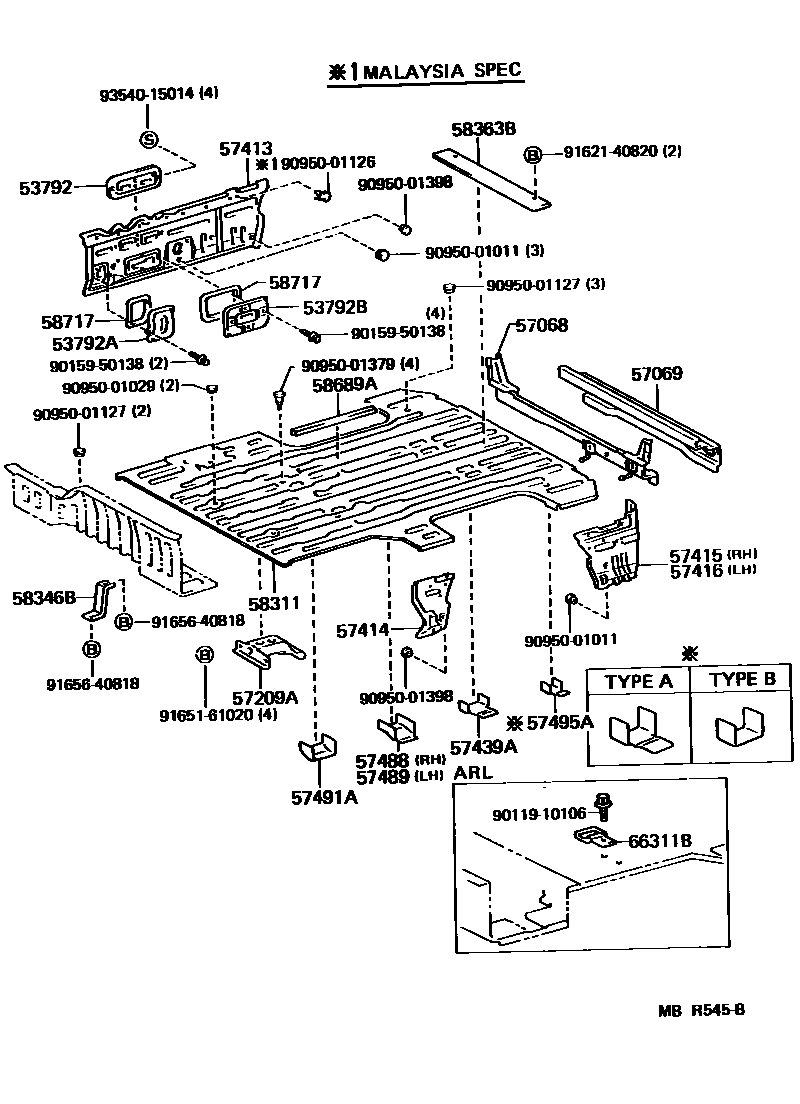

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

53792COVER, COOLER AIR INLET

main53792-95704iCM36,KM36,YM30,31..RHD..MRF..(05S,08S); YM35..GEN;KM36..SRF..05S199108-199212

MALAYSIA SPEC

53792ACOVER, COOLER AIR INLET NO.1

main53792-95706iYM30198808-199108

53792BCOVER, COOLER AIR INLET NO.2

main53792-95705iCM36,KM36..MRF; YM35;KM36..SRF199310-199804

MALAYSIA SPEC

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-95700iCM36,KM3#,YM31,35198808-199804

main57068-95702iYM30198808-199201

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-95700iYM35..GEN198905-199804

main57069-95701iCM36..5H;CM36..SRF;CM36,KM36,37,YM30,35..(4FC,4H,5F)..(02S,03S,06S,08S,09S)198808-199201

main57069-95702iYM35..GEN199107-199804

MALAYSIA SPEC

main57069-95703iYM35..GEN198905-199804

ROUGH ROAD PACKAGE

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-95710iKM3#..LHD198808-199804

main57209-95711iYM3#..5F198808-199804

main57209-95712iYM30,35..4FC198808-199201

main57209-95713iCM36198808-199804

57413RAIL, FLOOR SIDE, CENTER RH

main57405-95719iKM30199604-199804

main57405-95721iYM35..GEN199107-199108

MALAYSIA SPEC

main57405-95724iKM36..06S..ARL198808-199201

W(RR HEATER-BUILD IN TYPE)

main57405-95725iYM35..GEN;KM36..06S..ARL198808-199804

main57405-95728iYM30198808-199201

W(RR HEATER-PUT FLOOR TYPE)

main57405-95729iYM30198808-199201

main57405-95730iCM36..RHD;KM36,YM35..VSP..ARL;KM36..RHD..V4D..GEN198808-199108

main57405-95736iCM36,KM36..MRF; YM35;KM36..SRF199212-199310

MALAYSIA SPEC

main57413-95735iKM36..V5D;CM36,KM3#..LHD..V4D198808-199604

57414RAIL, FLOOR SIDE, CENTER LH

main57406-95708iKM37198808-199201

W(RR HEATER-PUT FLOOR TYPE)

main57406-95711iCM36,KM36,37..LHD..V4D198808-199201

main57406-95714iYM30,35..VSG;KM36..06S..ARL198808-199201

main57406-95715iKM30199001-199112

main57414-95718iYM35199212-199309

W/O(REAR SEAT)

57415RAIL, FLOOR SIDE, REAR RH

main57047-95700iYM31199201-199804

main57047-95704iKM30,YM30199001-199804

main57047-95705iCM36,KM36,37,YM31,35198808-199201

main57047-95707iYM30198808-199001

57416RAIL, FLOOR SIDE, REAR LH

main57048-95700iYM31199201-199804

main57048-95704iKM30,YM30199001-199804

main57048-95705iCM36,KM36,YM35199201-199804

main57048-95707iYM30198808-199001

57439ASTRENGTH, UPPER REAR FLOOR, NO.5

main57439-95700×2iYM35..GEN;KM36..SRF..05S199108-199804

57488REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 RH

main57488-95700iCM36,KM36..SRF..5F199005-199108

57489REINFORCEMENT, FLOOR SIDE MEMBER, NO.2 LH

main57489-95700iCM36,KM36..SRF..5F199005-199108

57491ARETAINER, FLOOR MEMBER REINFORCEMENT

main57491-95700×2iCM36,KM36..SRF..5F199005-199108

57495APATCH, UPPER REAR FLOOR STRENGTH

main57495-95700iYM35..GEN;KM36..SRF..05S199108-199804

TYPE A

main57495-95701iYM35..GEN199107-199108

TYPE B

58311PAN, REAR FLOOR

main58311-95767iYM35..GEN199107-199212

MALAYSIA SPEC

main58311-95773iCM36,KM36..LHD..VSG198808-199201

main58311-95774iKM36,YM31..RHD..VSG..GEN198808-199201

main58311-95780iKM37198808-199201

W(RR HEATER-PUT FLOOR TYPE)

main58311-95781iKM37198808-199201

main58311-95784iYM30198808-199201

W(RR HEATER-PUT FLOOR TYPE)

main58311-95785iYM30198808-199201

main58311-95789iKM30199001-199201

main58311-95G09iCM36,KM36..RHD..V4D..VSP..GEN198808-199201

main58311-95G12iKM36..RHD..V5D198808-199201

main58311-95G15iCM36..LHD..02S198808-199201

main58311-95G16iCM36,KM36,YM35..VSP..MTM..ARL198808-199201

main58311-95G17iKM36..06S..ARL198808-199201

main58311-95G18iCM36,KM36..RHD..V4D..VSP..GEN; CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199201

W(RR FLOOR MAT); W/O(REAR SEAT)

main58311-95G19iKM36..RHD..V5D198808-199201

W(RR FLOOR MAT)

main58311-95G24iKM36..LHD..03S198808-199201

main58311-95G25iKM36..LHD..03S198808-199201

W(RR FLOOR MAT)

main58311-95G26iCM36,KM36..LHD..VSG; CM36..LHD..02S198808-199201

W(RR FLOOR MAT); W/O(REAR SEAT)

main58311-95G27iYM35..4FC198808-199201

main58311-95G66iYM35..GEN198905-199201

main58311-95G67iYM35..GEN198905-199212

W/O(REAR SEAT)

58346BBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-95700iKM36..RHD..GEN198808-199804

58363BBALANCER, REAR FLOOR, NO.1

main58363-95700iYM35..5F;CM36,KM36..VSP..ARL198808-199804

RR

main58363-95701iYM35..5F;CM36,KM36..VSP..ARL198808-199804

FR

58689AWEIGHT, REAR FLOOR

main58688-95700×9iCM36,KM36..VSP..ARL198808-199201

L=460

main58688-95701×9iCM36,KM36..VSP..ARL198808-199201

L=300

58717PACKING, COOLER AIR INLET COVER

main58717-95700iCM36,KM36,YM30,31..RHD..MRF..(05S,08S); YM35..GEN;KM36..SRF..05S199109-199212

FR; MALAYSIA SPEC,FR

main58717-95701iYM30198808-199108

FR

66311BHOOK, ROPE

main66311-95J00×6iYM35;CM36,KM36..ARL198808-199804

9011910106

main90119-10106

9015950138

main90159-50138

9095001011

main90950-01011

9095001029

main90950-01029

9095001126

main90950-01126

9095001127

main90950-01127

9095001379

main90950-01379

9095001398

main90950-01398

9162140820

main91621-40820

9165161020

main91651-61020

9165640818

main91656-40818

9354015014

main93540-15014

33 parts on this diagram · 6 diagrams in section
